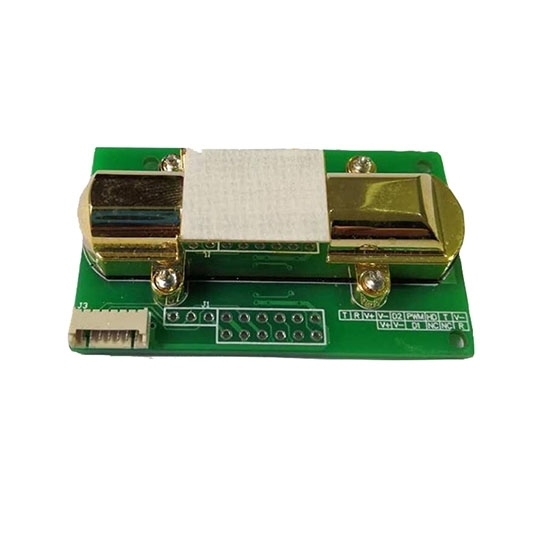

    NDIR CO2 Sensor Module, 400-2000/ 5000/ 10000 ppm

    Cost-effective NDIR CO2 sensor module has optional measuring range 0/400~2000/ 5000/ 10000, peak current 125 mA, average current less than 40 mA, UART/ PWM/ 0.4-2V DC three output signals for selection. CO2 gas sensor built-in temperature compensation; digital output and analog voltage output at the same time, easy to use.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost NDIR CO2 sensor with 1 min preheat time, interface level 3.3V, working voltage 5VDC. The CO2 module has high sensitivity, lower power consumption and good stability, infrared carbon dioxide sensor is widely used in HVAC refrigeration, air cleaner device, indoor air quality monitoring, smart home and ventilation system.


    • Chamber is gold plated, water-proof and anti-corrosion
    • High sensitivity, low power consumption
    • Good stability, long lifespan
    • Temperature compensation, excellent linear output
    • Multiple output modes: UART, PWM
    • Anti-water vapor interference, anti-poisoning


    • Model: ATO-ICDS-Z14A
    • Detection gas: CO2
    • Working voltage: 5VDC
    • Peak current: 125 mA
    • Average current: < 40mA
    • Interface level: 3.3V
    • Measuring range: 400~10000 ppm
    • Output signal: UART/ PWM/ 0.4-2V DC
    • Preheat time: 1 min
    • Response time: T90 < 120s
    • Working temperature: -10℃ ~ 50℃
    • Working humidity: 0~95% RH (no condensation)
    • Storage temperature: -20℃ ~ 60℃
    • Dimension (L*W*H): 57.5*34.7*17mm

    Measuring range and accuracy

    Target gas Measuring range Resolution Accuacy
    Carbon Dioxide
    400~2000 ppm 1 ppm ± (50 ppm+5% reading value)
    400~5000 ppm
    400~10000 ppm

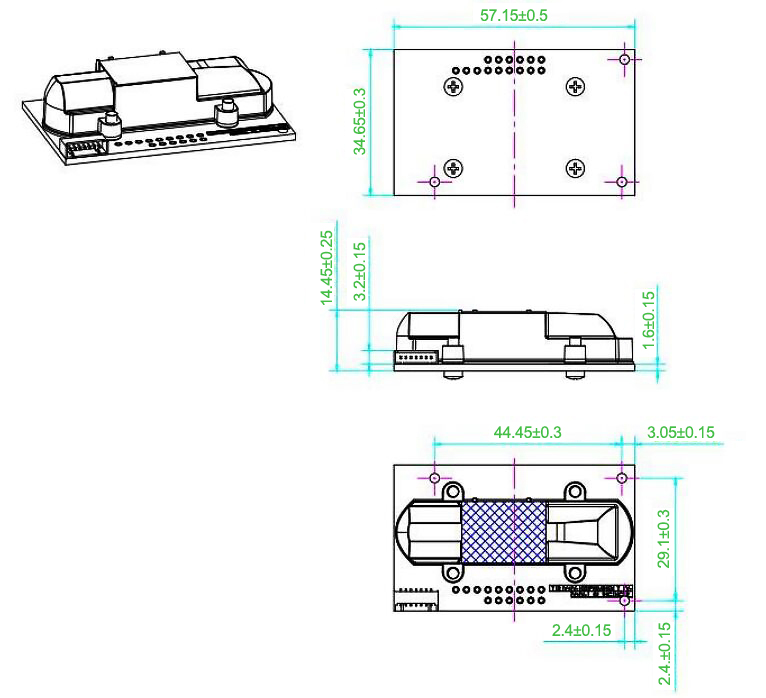

    Dimension (mm)

     NDIR co2 sensor module 400-1000 ppm dimension

    Tips: Why Calibrate NDIR CO2 Sensor Module?

    All carbon dioxide sensors need calibration. Depending on the application, this can be accomplished by calibrating the sensor to a known gas or using the automatic baseline calibration (ABC) method. Both have pros and cons you should know.

    Most of our CO2 products use non-dispersive infrared (NDIR) carbon dioxide sensors. These rely on an infrared light source and detector to measure the number of CO2 molecules in the sample gas between them. Over many years, both the light source and the detector deteriorate, resulting in slightly lower CO2 molecule counts. The industry calls this "drift".

    To combat sensor drift, during calibration a sensor is exposed to a known gas source, multiple readings are taken, an average is calculated, and the difference between the new reading and the original reading when the sensor was originally calibrated at the factory is stored in EPROM memory. This "offset" value is then automatically added or subtracted to any subsequent readings taken by the sensor during use.
