    Photoelectric Liquid Level Sensor, Stainless Steel, PNP/ NPN

    $109.99

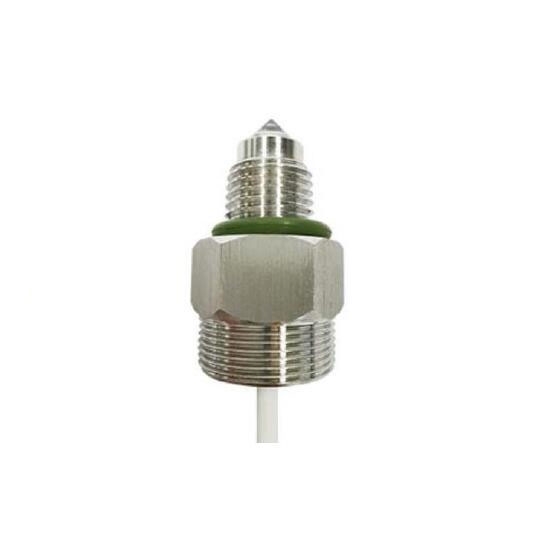

    Stainless steel photoelectric level sensor is NPN/ PNP signal output directly driving the relay. It is a kind of liquid level controller which detects with infrared ray to avoid inducting wrong action by interference of sun or light. This optical water level sensor is easy mounting and can be used in impure or adhesive liquid.
    SKU: ATO-MR-G38
    *
    *
    Free Shipping Worldwide
    Delivery date: 30-40 Days

    Photoelectric liquid level sensor can be widely applied in water purification, sewage treatment, electrical industry, hydraulic machinery and so on. It provides protection of antipole, overvoltage, short circuit and transient.

    Specification

    Model ATO-MR-G38
    Structure Metallic structure
    Type Strong acid and strong alkaline type
    Material Stainless steel + glass/PSF
    Signal Output NPN/ PNP
    Action Mode 3 wire: Not switchable
    4 wire: Light on/ Dark on, Switch by external wire
    Tread Type 1/2 NPT, 3/4-16UNJF, 3/8 NPT, M16, M12
    Detected Object Water/ Neutral solution/ Non-viscous acid-alkaline solution
    Detection Accuracy Less than plus or minus 1mm
    Voltage DC10-30V (including voltage fluctuation 10%)
    Max Current Consumption 10mA
    Load Current below 100mA
    Protection Circuit Start-up delay, power polarity reverse connection protection;
    self-recovery output short circuit protection, output reverse connection protection
    Response Time 1ms, 0.25ms
    Electrical Life More than 100,000 times (opening and closing frequency: 1800 times/hour)
    Environmental Illumination Incandescent Lamp: 5000lx or less. Sunlight: 80,000lx or less
    Environment Temperature ON: -30~+100℃ OFF: -40~+120℃ (with no icing and frosting)
    Insulation Resistance above 20mΩ (500VDC)
    Protection Level IP67
    Connection Method Lead-out type (wire length 30cm)
    Lead color definition Light on 3 wire: Brown VDC; Blue GND; Black out
    Dark on 3 wire: Brown VDC; Blue GND; Black out
    Mode 4 wire: Brown VDC; Blue GND; Black out; White mode
    Mass (Sensor Only) about 40g
    Accessories Sealing ring, nut

    Dimensions (Units: mm)

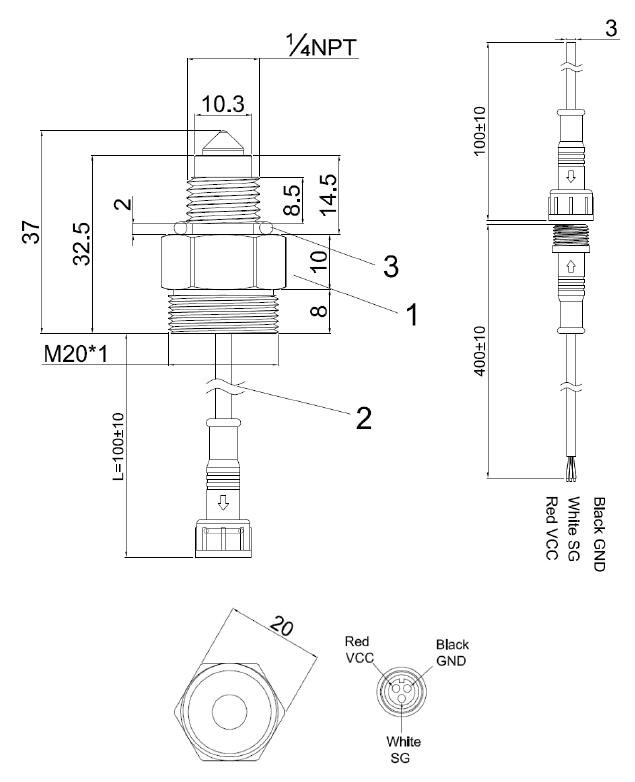

    Dimensions of Photoelectric Liquid Level Sensor

    Dimensions of Photoelectric Liquid Level Switch

    Signal Output and Circuit Diagram

    3 Wire

    3 Wire Signal Output and Circuit Diagram Photoelectric Liquid Level Sensor

    4 Wire

    4 Wire Signal Output and Circuit Diagram Photoelectric Liquid Level Sensor

    Mounting Method

    Mounting Method of Photoelectric Liquid Level Sensor

    Application

    Applications of Photoelectric Liquid Level Sensor

    Tips: What are the advantages of photoelectric liquid level sensor?

    • Accurate liquid level detection, high repeatability and fast response.
      The output of liquid level is only related to whether the photoelectric probe contacts the liquid level, and has nothing to do with other characteristics of the medium, including temperature, pressure, density and electrical parameters, so the detection of the photoelectric liquid level switch is high accurate and repeatable.
    • It can be made into multi-point liquid level sensor.
      Because the volume of photoelectric probe is relatively small, multiple photoelectric probes can be installed on a measuring body to make multi-point liquid level sensor and controller.
    • Strong adaptability to the environment.
      Photoelectric level switch can be used in vacuum and pressure environment, flammable and explosive occasions, as well as special liquid environment such as turbulence, bubble, vibration and steam.
    • It is suitable for special container installation.
      The photoelectric probe can be installed separately in a small space and is suitable for special tank or container.
