    Portable Dew Point Meter with Intergral Prob

    5 out of 5 based on 1 reviews | Write a review
    Portable dew point meter with intergral prob, graphic display, easy operation with touch function, USB port, measuring range -80~+50°Ctd, pressure range -1~50 bar, integrated data logger for saving measured values. Dew point measurement instrument can be used to detect residual humidity of compressed air, N2 and O2.
    SKU: ATO-DPM-500
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Cheap price portable dew point meter with intergral prob, data can be transferred to PC via usb flash drive, quick response, good linearity, stable reading, can touch screen operation.


    Model ATO-DPM-500
    Colour Screen 3.5" Touchpanel TFT transmissive, graphics, curves, statistics
    Interfaces USB
    Measuring Ranges -80~+50 °Ctd, -20~+70°C, 0~100%RH
    Accuracy ±0.5 °Ctd (-10~+50°Ctd), typical: ±2°Ctd
    Power Supply Unit 100~240 VAC, 50~60 Hz, 12VDC~1A
    Current Supply Internal rechargeable Li-Ion batteries charging time approx 4 h
    DPM500 operation: approx 12h
    Pressure Range Mounting without measuring chamber: -1~50 bar Standard
    Mounting with measuring chamber: 2~16 bar
    High pressure version up to 350 bar
    Response Time T95 - 50°Ctd~-10°Ctd<10sec
    10°Ctd~-50°Ctd<5 minutes
    Humidity Measures g/m³, mg/m³, ppm V/V, g/kg,°Ctdatm, % Rf
    Operating Temperature -20~70°C Measuring gas temperature
    0~50°C Ambient temperature
    Storage Temperature -20 to +70°C
    Material Plastic PC/ABS
    Dimensions 125*96*245mm
    Weight 550g
    Certificate ISO 9001:2015

    Packing List of Dew Point Meter

    Number Name Quantity
    1 Portable dew point meter DPM 500 for compressed air and gases 1
    2 Mobile measuring chamber up to 16 bar 1
    3 Diffusion-tight PTFE hose with quick connector, length 1 m 1
    4 Power supply for DPM 500 dew point meter 1
    5 Control and calibration set 11.3 % RH 1
    6 Quick-lock coupling 1
    7 Dry container for dew point sensors 1
    8 Transportation case (small) for DPM 500 1

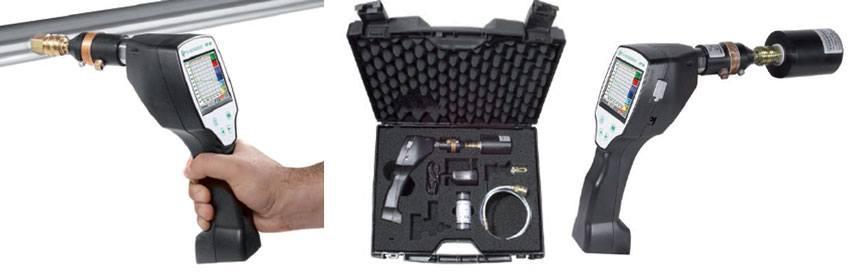

     DetailDew point meter description
    What is the dew point?

    Dew point temperature (dew point for short) is one of the indicators to measure the water vapor content in a certain gas. Water has the property that it can exist in liquid, solid, or gas under various conditions. To understand the nature of water vapor, we must first know the general nature of the gas. The total pressure (commonly known as the total pressure) produced by any mixed gas is equal to the sum of the partial pressures (partial pressures) of the component gases. This is Dalton's law, which is expressed by formula: Ptotal = P1 + P2 + P3…

    The amount of any component gas in the mixed gas can be expressed by pressure. The main components of air are nitrogen, oxygen, and water vapor, so the total atmospheric pressure is composed of the partial pressures of these three gases. The concentration of nitrogen and oxygen is relatively stable, while the concentration of water vapor varies greatly and must be determined by measurement.

    The maximum partial pressure of water vapor varies completely with temperature. For example, at 20 ° C (68 ° F), the maximum partial pressure of water vapor is 23.5 mbar. Also called "saturated vapor pressure" at 20 ° C (68 ° F). In a "saturated" environment at 20 ° C (68 ° F), if water vapor continues to increase, liquid water will form. This condensation phenomenon can be used to measure the water vapor content in the gas.
