    Pneumatic Rotary Actuator, Rack and Pinion, Double acting

    $164.50
    Rack-and-pinion pneumatic rotary actuators (double acting) are available in a variety of styles and sizes, providing double output torque. These compact units are durable, offer simple installation and high force for their size. They are equipped with an angle adjusting mechanism ranging between 0 and 190 degrees, complete with two cushion types, one with adjustable bolt and the other with internal shock absorber.
    SKU: ATO-RTC-HRQ
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Product features

    1. Higher manufacturing precision of working platform: The manufacturing precision of working platform is high, facilitating installation and is of precise orientation. The working platform has a through hole in the center, and pipes can be located and passed through the hole.
    2. Double cylinder structure brings about double output.
    3. Two modes of buffer are offered for selection, including adjustment bolt buffer and internal shock absorber with the latter even better.
    4. Rack and pinion design makes for stable functioning.
    5. The device comes with integral magnetic switch slots
    6. Three types of size are selectable which are mini-sized (2, 3 & 7), middle-sized (10, 20, 30 & 50) and large-sized (70, 100 & 200) rotary cylinders.
    7. Simple installation: Guide holes are designed on both sides of the cylinder body (10~200) or undersurface (2~7).

    Specification

    Model ATO-RTC-HRQ
    Type 2 3 7 10 20 30 50 70 100 200
    Acting type Double rack and pinion (Double acting)
    Fluid Air (to be filtered by 40 um filter element)
    Operating pressure With adjustable bolt 0.15~0.7MPa (22~100psi) (1.5~7.0bar)
    With internal shock absorber - 0.15~0.7MPa (22~100psi) (1.5~7.0bar)
    Proof pressure 1.2MPa (175psi) (12.0bar)
    Temperature -20~70℃
    Angle adjustment range 0~190° 0~190°
    Repeatable
     precision
    With adjustable bolt 0.2°
    With internal shock absorber - 0.05°
    Theoretic moment (Nm) (0.5MPa) 0.2 0.33 0.63 1.1 2.2 2.8 5 7.5 11 22
    Cushion type With adjustable bolt Rubber bumper
    With internal shock absorber - Shock absorber
    Port size End ports M5 × 0.8 1/8″ [Note1]
    Side ports M5 × 0.8
    Weight 120g 175g 270g 535g 940g 1260g 2060g 2890g 4100g 7650g
    [Note1]: PT thread, G thread and NPT thread are available.
    HRQ series are all attached with magnet.

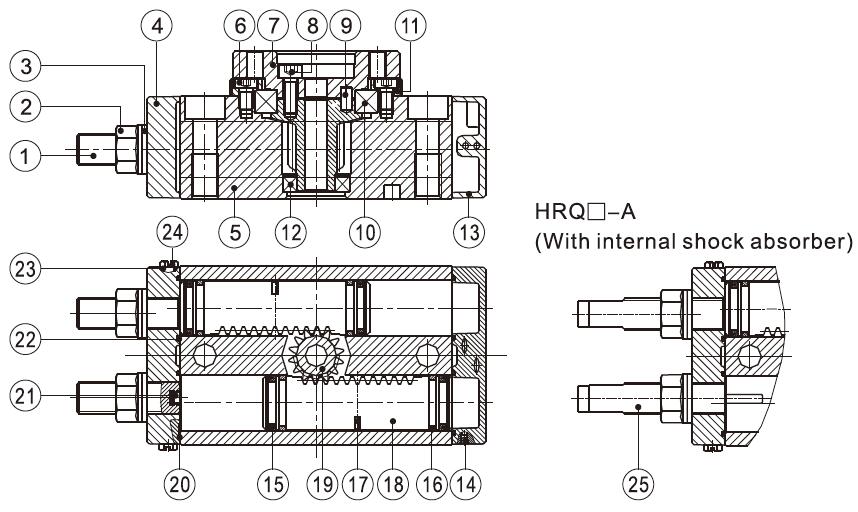

    Inner structure and material of major parts
    Inner-structure-of-HRQ-pneumatic-rotary-actuator

    NO. Item Material
    1 Adjustable bolt Carbon steel
    2 Hexagon nut Carbon steel
    3 Seal washer Carbon steel & Rubber
    4 Front cover Aluminum Alloy
    5 Body Aluminum Alloy
    6 Hexagon socket head set bolt Carbon steel
    7 Table Aluminum Alloy
    8 Hexagon socket head set bolt Carbon steel
    9 Guide pin/flat key Carbon steel
    10 Deep-groove bearing Subassembly
    11 Bearing retainer Aluminum Alloy
    12 Deep-groove bearing/Needle bearing Subassembly
    13 Back cover Aluminum Alloy
    14 Steel ball Stainless steel
    15 Piston seal NBR
    16 Wear ring Ware resistent material
    17 Magnet Rare earths
    18 Rack Stainless steel/Carbon steel
    19 Pinion Chrome molybdenum steel
    20 O-ring NBR
    21 Bumper NBR
    22 O-ring NBR
    23 O-ring NBR
    24 Hexagon screw Stainless steel
    25 Shock absorber Subassembly

    Dimensions (unit: mm)

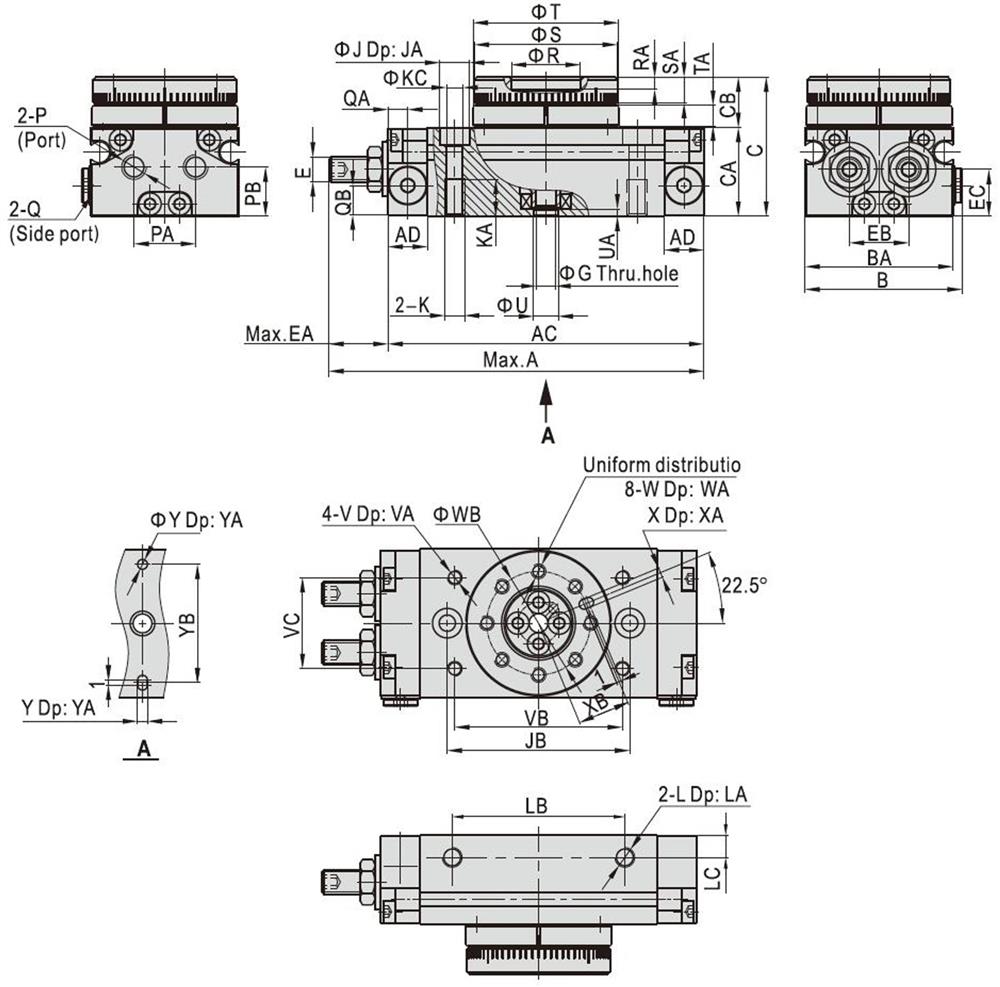

    Dimension-of-pneumatic-rotary-actuator-HRQ-2-3-7

    Type/Item A AC AD B BA C CA CB E EA EB EC G J JA JB K KA KC L LA LB LC P PA
    2 76 64 8 32 30 28 18 10 M5×0.8 12 12 9.5 4 6 3.5 37 M4×0.7 7.5 3.5 M4×0.7 4 35 4.5 M5×0.8 12.5
    3 82 70 8 36.5 34.5 30.5 20.5 10 M5×0.8 12 15.5 10.5 5 7.5 4.5 43 M5×0.8 8.5 4.5 M4×0.7 4 40 4.5 M5×0.8 15.5
    7 94.5 79.5 8 43 41 34.5 23 11.5 M6×1.0 15 18.5 12 6 7.5 4.5 50 M5×0.8 8.5 4.5 M5×0.8 5 50 5 M5×0.8 18.5



    Type/Item PB Q QA QB R RA S SA T TA U UA V VA VB VC W WA WB X XA XB Y YA YB
    2 10 M5×0.8 4 6 14 (H9) 2.5 29 (h9) 5.5 29.5 (h9) 4 5 (H9) 1.5 M3×0.5 3.5 34 18.5 M3×0.5 5.5 21 2 (H9) 2 10.5 2 (H9) 2 24
    3 12 M5×0.8 4 7.5 17 (H9) 2.5 33 (h9) 5.5 34 (h9) 4 6 (H9) 1.5 M3×0.5 3.5 38 23 M3×0.5 5.5 25 2 (H9) 2 12.5 2 (H9) 2 28
    7 14 M5×0.8 4 9 20 (H9) 3 39 (h9) 6.5 40 (h9) 4.5 7 (H9) 1.5 M4×0.7 4.5 45 30 M4×0.7 6.5 29 3 (H9) 3 14.5 3 (H9) 3 32

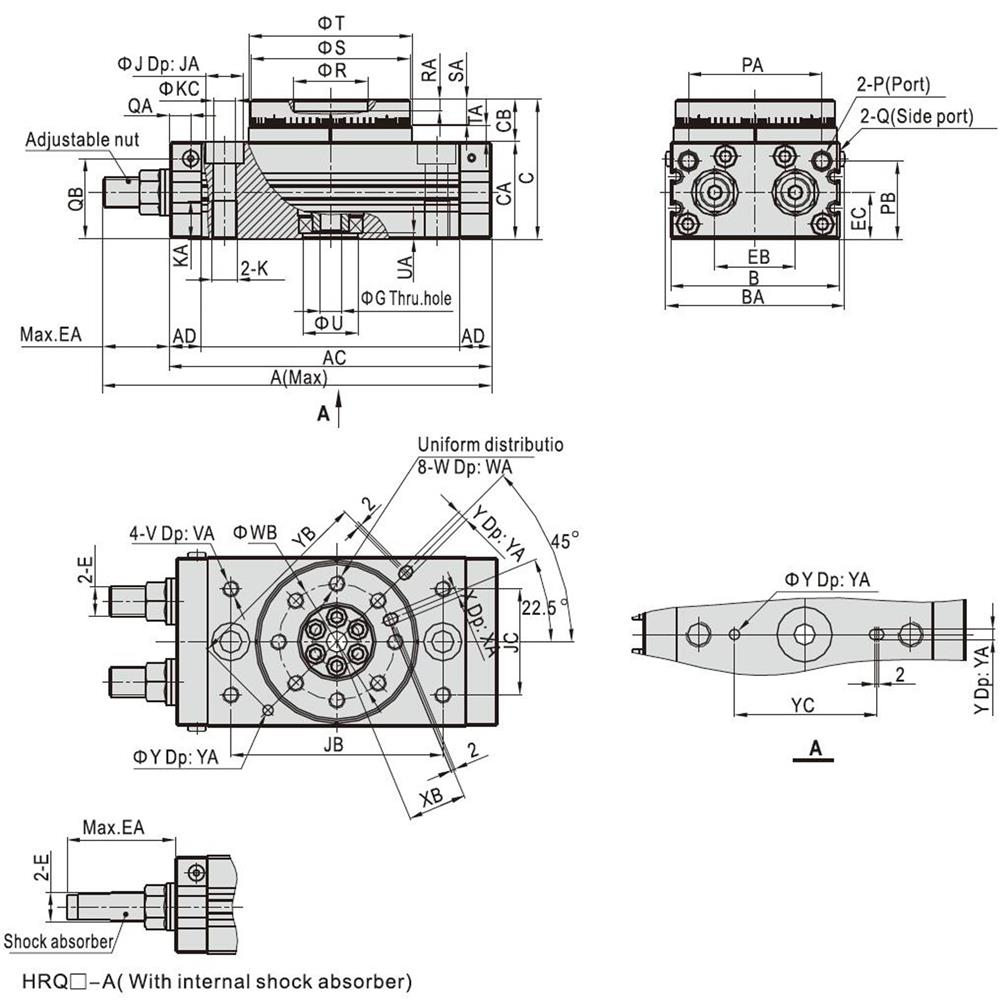

     Dimension-of-pneumatic-rotary-actuator-HRQ-10~50

    Type/Item A (With internal shock absorber) A (With adjustment bolt) AC AD B BA C CA CB E EA  (With internal shock absorber) EA (With adjustment bolt)
    10 123 112 92 9.5 50 54 47 34 13 M10×1.0 31 20
    20 169 145.3 117 11 65 69 54 37 17 M12×1.0 52 28.3
    30 178.5 154.5 127 11.5 70 74 57 40 17 M12×1.0 51.5 27.5
    50 212 185.9 152 15 80 84 66 46 20 M14×1.5 60 33.9



    Type/Item EB EC G J JA JB JC K KA KC P PA PB Q QA QB R RA S SA
    10 20.5 14 5 11 6.5 60 27 M8×1.25 12 6.5 M5×0.8 34.5 28 M5×0.8 4.5 29 20(H9 4.5 45 (h9) 8
    20 27.5 16 9 14 8.5 76 34 M10×1.5 15 8.5 M5×0.8 47 30 M5×0.8 6 30 28(H9 6.5 60 (h9) 10
    30 29 18.5 9 14 8.5 84 37 M10×1.5 15 8.5 1/8″ 50 32 M5×0.8 6.5 34 32(H9 5 65 (h9) 10
    50 38 22 10 18 10.5 100 50 M12×1.75 18 10.5 1/8″ 63 38 M5×0.8 10 38 35 (H9) 5.5 75 (h9) 12



    Type/Item T TA U UA V VA W WA WB X XA XB Y YA YB YC
    10 46 (h9) 4.5 15 (H9) 3 M5×0.8 8 M5×0.8 8 32 3 (H9) 3.5 16 3 (H9) 3.5 56 40
    20 61 (h9) 6.5 17 (H9) 2.5 M6×1.0 8 M6×1.0 10 43 4 (H9) 4.5 21.5 4 (H9) 4.5 74 50
    30 67 (h9) 6.5 22 (H9) 3 M6×1.0 8 M6×1.0 10 48 4 (H9) 5 24 4 (H9) 4.5 80 58
    50 77 (h9) 7.5 26 (H9) 3 M8×1.25 8 M8×1.25 12 55 5 (H9) 6 27.5 5 (H9) 5.5 92 68

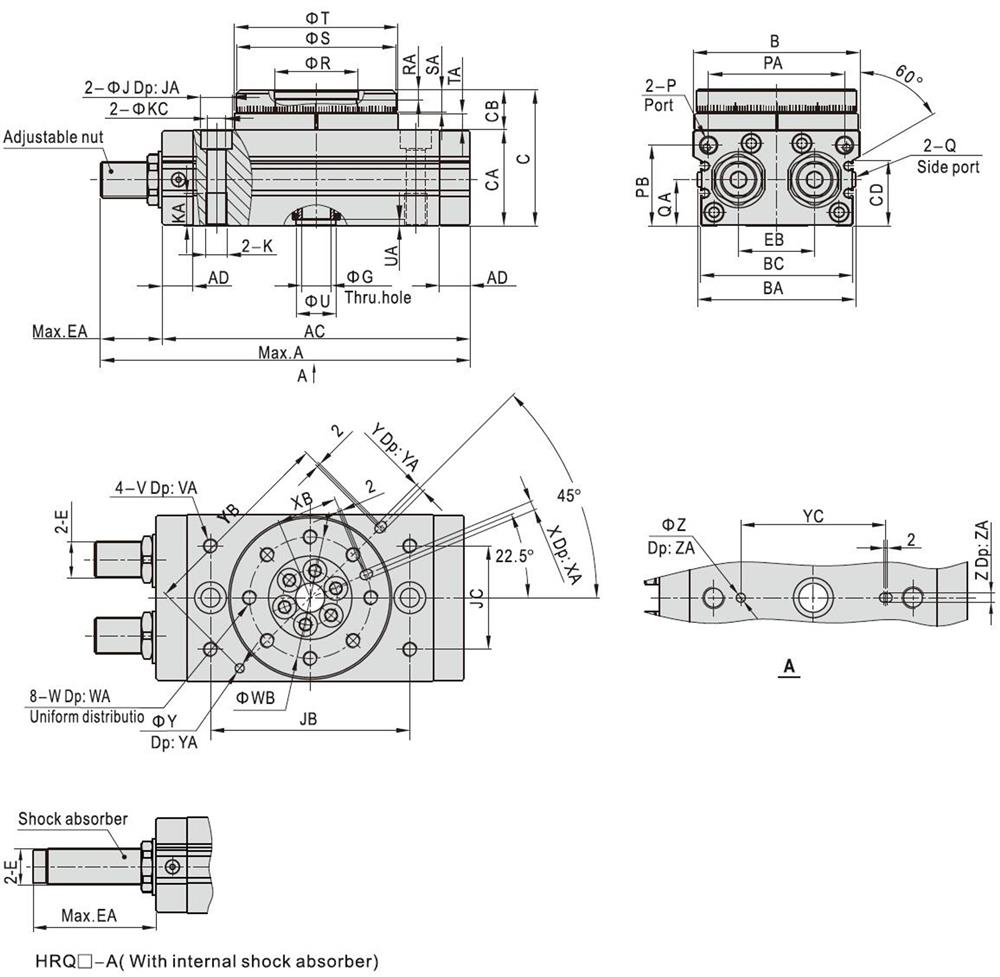

    Dimension-of-pneumatic-rotary-actuator-HRQ-70~200

    Type/Item A (With internal shock absorber) A (With adjustment bolt) AC AD B BA BC C CA CB CD E EA (With adjustment bolt)
    70 206.8 244 92 17 92 88 84 75 53 22 36 M20×1.5 36.8
    100 225.7 263 117 17 102 99 95 86 59 27 42 M20×1.5 36.7
    200 279.5 316.5 127 24 120 117 113 106 74 32 57 M27×1.5 39.5



    Type/Item EA (With internal shock absorber) EB G J JA JB JC K KA KC P PA PB Q QA R RA S SA
    70 74 42 16 17.5 12 110 57 M12×1.75 18 10.5 1/8″ 75 44 M5×0.8 25 46 (H9) 5 88 (h9) 12.5
    100 74 50 19 17.5 12 130 66 M12×1.75 18 10.5 1/8″ 85 50 M5×0.8 29 56 (H9) 6 98 (h9) 14.5
    200 76.5 60 24 20 12.5 150 80 M16×2.0 25 14 1/8″ 103 62.5 M5×0.8 36 64 (H9) 9 116 (h9) 16.5



    Type/Item T TA U UA V VA W WA WB X XA XB Y YA YB YC Z ZA
    70 90 (h9) 9 22 (H9) 3.5 M8×1.25 10 M8×1.25 12.5 67 5 (H9) 5.5 33.5 5 (H9) 3.5 110 80 5 (H9) 3.5
    100 100 (h9) 12 24 (H9) 3.5 M8×1.25 10 M8×1.25 14.5 77 6 (H9) 6.5 38.5 6 (H9) 4.5 120 100 6 (H9) 4.5
    200 118 (h9) 15 32 (H9) 5.5 M12×1.75 13 M12×1.75 16.5 90 8 (H9) 1/8″ 45 8 (H9) 4.5 140 110 8 (H9) 6.5

    Tips: How to select product

    1. Determine the following working conditions according to the actual situation:
      1.1 Rotation angle θ: The actual rotation angle must be within the maximum allowed range of rotation angle of cylinder.
      1.2 Rotation time t: The rotation time must be within the maximum allowed range of rotation time of cylinder.Calculation-of-necessary-torque-and-moment-of-pneumatic-rotary-actuator
      1.3 Installation position of cylinder: Allow enough installation space, so as to ensure leaving adequate space for rotation of cylinder and workpieces.
      1.4 Determination of loading mass and loading shape.

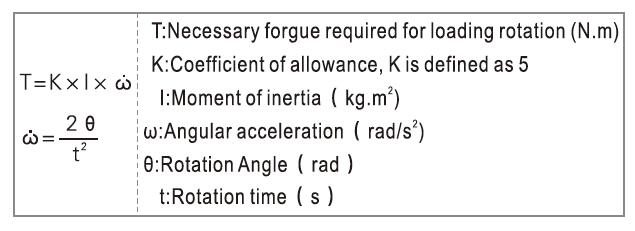

    2. Calculation of necessary torque needed when loading rotation (T(N.m))
      Calculate the necessary moment required for loading rotation according to the formula below, and combing with the torque diagram of actual effect, to choose the pneumatic cylinder with suitable torque output.
      2.1 Calculation method of moment of inertia in different conditions
      Diagram Description Calculation formula
      of moment of inertia
      Rotation radius Diagram Description Calculation formula
      of moment of inertia
      Rotation radius
       Disk of pneumatic rotary actuator d: Diameter (m)
      m: Mass (kg)
       Formula of moment of inertia of pneumatic rotary actuator  Rotation radius of pneumatic rotary actuator  Rectangle sheet of pneumatic rotary actuator 1 a: Sheet length (m)
      b: Length of
          side (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 6 Rotation radius of pneumatic rotary actuator 6
      Note: no special installation direction Note: no special installation direction
       Classified disk of pneumatic rotary actuator d1: Diameter (m)
      d2:Diameter (m)
      m1: d1 Mass (kg)
      m2: d2 Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 1  Rotation radius of pneumatic rotary actuator 1  Rectangle sheet of pneumatic rotary actuator 2 a: Sheet length (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 7  Rotation radius of pneumatic rotary actuator 7
      Note: Compared with d2, disregard d1 if d1 is extremely tiny Note: no special installation direction
       Disk of pneumatic rotary actuator 1 d: Diameter (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 2  Rotation radius of pneumatic rotary actuator 2  Rectangle sheet of pneumatic rotary actuator 3 a: Sheet length (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 8  Rotation radius of pneumatic rotary actuator 8
      Note: no special installation direction Note:
      1. horizontal installation.
      2. pay attention to the change of movement time in case of vertical installation.
       Sphere of pneumatic rotary actuator r: Radius (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 3  Rotation radius of pneumatic rotary actuator 3  Rectangle sheet of pneumatic rotary actuator 4 a: Sheet length (m)
      b: Distance between the rotation axis
      and the gravity center of loading (m)
      m: Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 9  Rotation radius of pneumatic rotary actuator 9
      Note: no special installation direction Note: the cuboids are the same.
       Thin stick of pneumatic rotary actuator a1: Sheet length (m)
      a2: Sheet length (m)
      m1: a1 Mass (kg)
      m2: a2 Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 4  Rotation radius of pneumatic rotary actuator 4  Gear of pneumatic rotary actuator a: Tooth number of gear
      b: Tooth number of loading gear
       Formula of moment of inertia pneumatic rotary actuator 10
      Note:
      1. horizontal installation.
      2. pay attention to the change of
          movement time in case of vertical
          installation.
       Concentrated load of pneumatic rotary actuator a1: Vertical distance between the rotation axis and the concentrated loading (m)
      a2: Length of arm (m)
      m1: Mass of concentrated loading (kg)
      m2: Mass of arm (kg)
       Formula of moment of inertia pneumatic rotary actuator 11
       Rectangle sheet of pneumatic rotary actuator a1: Sheet length (m)
      a2: Sheet length (m)
      b: Length of side (m)
      m1: a1 Mass (kg)
      m2: a2 Mass (kg)
       Formula of moment of inertia pneumatic rotary actuator 5  Rotation radius of pneumatic rotary actuator 5 Note:
      1. horizontal installation.
      2. compared with m, disregard if m is extremely tiny.
      3. calculate K according to the shape of concentrated loading row by row. For example, when the loading is spheroid, K=2r²/5
      Note:
      1. horizontal installation.
      2. pay attention to the change of
          movement time in case of vertical
          installation.
    3. Calculation of maximum movement energy E(max, J):
      Calculate the maximum movement energy according to the formula below, and make sure that the maximum movement energy is within allowed energy range of the chosen pneumatic cylinder as excessively large movement energy would lead to damage of inner parts, please choose rotation cylinder attached with shock absorber when the movement energy is fairly large.
      Calculation of maximum movement energy of pneumatic rotary  actuator

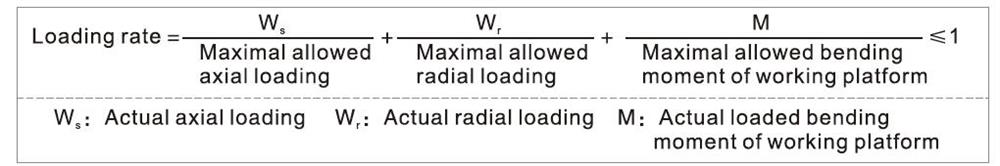

    4. Calculation of loading rate
      Calculate the loading rate according to the formula below, and the loading rate must not be more than 1.
      Calculation of loading rate of pneumatic rotary actuator
    5. Determination method
      It could be used only when the chosen pneumatic cylinder must meet the requirements of article 2, 3 and 4 simultaneously.
