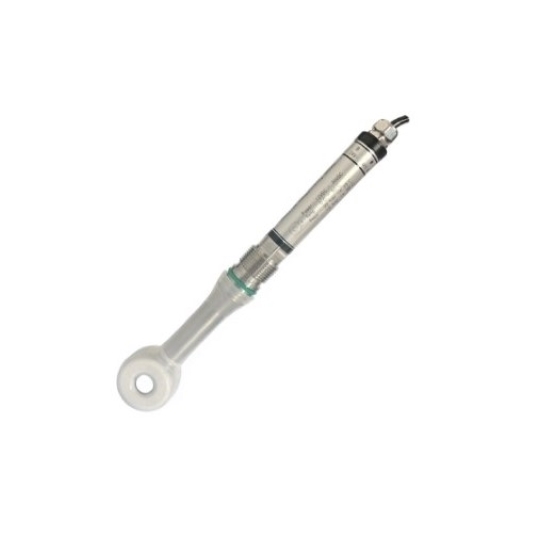

Sanitary Inductive Conductivity Sensor, 1~2000ms/cm

High-quality sanitary inductive conductivity sensor, a good helper for your industrial detection. The conductivity measurement range of the sanitary inductive conductivity transmitter is 1ms/cm ~ 2000ms/cm, the temperature measurement range is -20℃ ~ 80℃, the weight is light, easy to install, and the measurement accuracy is high, the response is sensitive, the corrosion resistance is strong, and it can work stably for a long time.

Specification

Features

• The installation method is more comprehensive and in line with the measurement principle.
• The sanitary inductive conductivity sensor has strong anti-interference ability, high accuracy and good stability.
• In low-concentration solutions, the measurement performance is better.

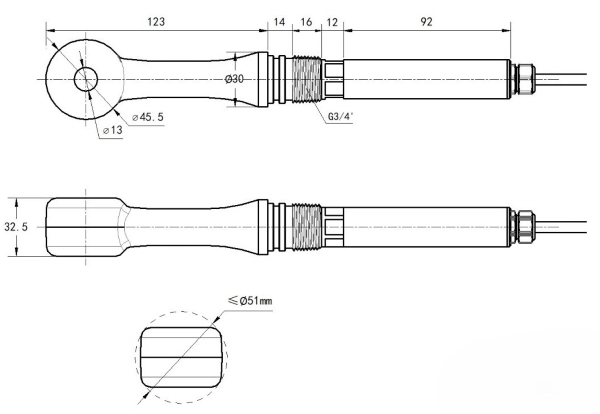

Dimension (Unit: mm)

Wiring

Installation

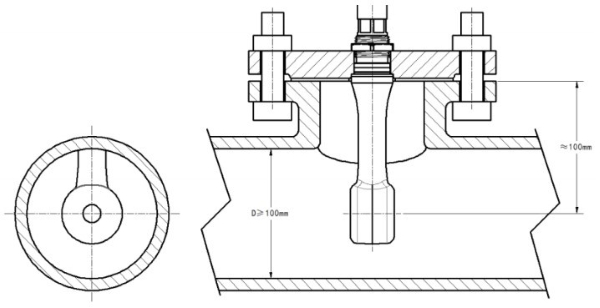

Flange pipe installation:

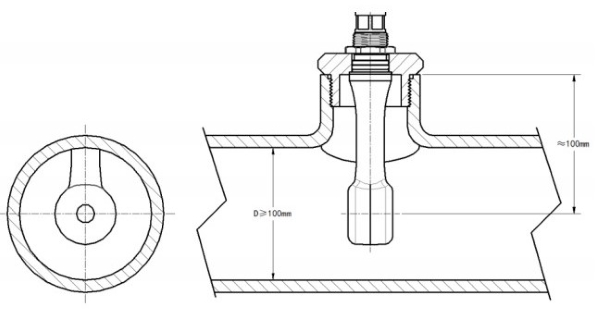

Sleeve installation:

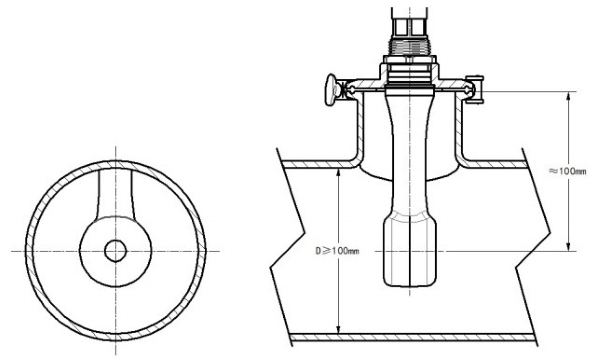

Quick connect flange pipe installation:

Application

Tips: FAQ of the conductivity sensor

• Abnormal measurement value: Abnormal measurement value of the conductivity sensor usually manifests as large reading deviation or data drift, which may be caused by incorrect electrode constant setting, calibration failure or electrode contamination. When solving the problem, check whether the electrode constant (K value) in the instrument matches the nominal value of the electrode, and recalibrate with fresh standard solution.
• Sensor response problem: If the conductivity sensor responds slowly or has no signal output, it may be caused by electrode aging, temperature compensation lag or power supply problem. When the activity of the platinum black electrode decreases, it can be activated with nitric acid, and the temperature probe failure needs to be checked or replaced. When there is no signal output, confirm whether the power supply voltage is normal, and use a multimeter to check whether the electrode is open. The inductive sensor coil needs to be replaced if it is damaged, and it is necessary to check whether the cable connection is loose or electromagnetic interference.
• Electrode physical failure: Electrode corrosion, scaling or mechanical damage will directly affect the measurement performance. Strong acid, strong alkali or a high temperature environment may corrode the electrode, and corrosion-resistant materials (such as titanium alloy) need to be replaced. To avoid mechanical impact, industrial scenarios should use sensors with a high protection level (IP68) and check the electrode status regularly.
• Temperature-related failures: Failure of temperature compensation can cause deviations in conductivity sensor readings. Common causes include temperature sensor damage or incorrect compensation coefficient settings. Check whether the temperature probe connection is normal and compare the manual temperature measurement to verify the data accuracy.
