Solenoid Valve, 2 Way, Normally Open, 12V/24V/220V for air water oil

$74.31

Old price: $85.66

2 way electric solenoid valve for air, water and oil, Normally Open (N/O), stainless steel body and NBR seal, input voltage 12V DC, 24V DC or 220V AC, various size of pipe connectors including G1/2, 3/4, 1, 1¼, 1½ and 2 inches, fast response time, long life, high reliability and low price.

SKU: ATO-2WBK

Port Size *

Voltage (V) *

12V DC
24V DC
220V AC

Qty:

Free shipping

Delivery date: 6-12 days

Overview
Solenoid Valve Catalog
Relative Video

2/2 way Normally Open (N/O) stainless steel electric solenoid valves, pilot-operating type, are used to control the flow of air, water and oil with high reliability and long service life for the applications such as mechanical, textile, medical, food processing and so on.

2/2 way Stainless Steel Solenoid Valve Specification

Model	2WBK160-15	2WBK200-20	2WBK250-25	2WBK350-35	2WBK400-40	2WBK500-50
Valve Type	2 Way 2 Position, Normally Open (N/O)
Media	Air, Water, Oil
Operation Mode	Pilot-operated
Port Diammeter(mm²)	16	20	25	35	40	50
Flow Rate(Cv)	4.8	7.6	12	24	29	48
Port Size	G1/2"	G3/4"	G1"	G1¼"	G1½"	G2"
Fluid Viscosity	Under 20 CS
Operating Pressure	Water, Oil: 0~0.5MPa Air: 0~0.7MPa
Max. Pressure Resistance	1.0MPa
Voltage(Optional)	12V DC, 24V DC, 220V AC
Voltage Tolerance	±10%
Operating Temperature	-5~+85℃ (23~185℉)
Body Material	Stainless Steel 304
Seal Material	NBR
Coil Power	20VA

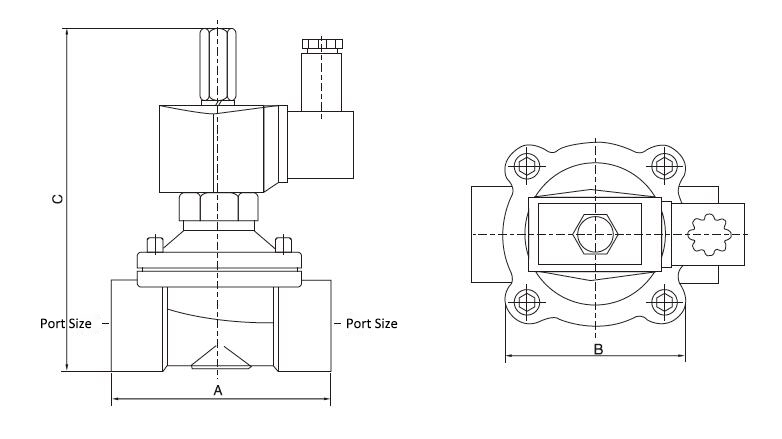

Stainless Steel Solenoid Valve Dimensions

Model	Port size	A	B	C
2WBK160-15	G1/2"	69	56	125
2WBK200-20	G3/4"	71	56	131
2WBK250-25	G1"	98	76	140
2WBK350-35	G1¼"	116	87	146
2WBK400-40	G1½"	122	94	158
2WBK500-50	G2"	129	95	170

Two-way Solenoid Valve Symbol
2W nc electric solenoid valve symbol
Tips: If the solenoid valve doesn’t work after energized, how to do?
There are some possible reasons for this problem:

Whether the power supply of solenoid valve is connected well.
Whether the power voltage is within the working range of the solenoid valve.
Whether the coil desoldering.
The coil is short circuit.
Whether the working pressure differential is proper.
The fluid temperature is too high.
Extraneous matters make the valve blocked.
The liquid is too sticky, the use of solenoid valve is too frequent and the service life is up.

Aiming at the above causes, there are some suggestions listed one by one for your reference.

Reconnect the wires and the connector assembly.
Regulate the voltage to the right scope.
Re-welding the coil.
Change a new coil.
Adjust the pressure differential or replace a new solenoid valve if necessary.
Update an appropriate solenoid valve.
Clean out the valve; if the seal is broken, change it.
Change an appropriate solenoid valve.

Solenoid valve catalog.pdf

This video shows how ATO 24V DC water solenoid valve is operating internally, and tells you it is a good solenoid valve by testing the solenoid voltage with a multimeter.
