Pneumatic solenoid valve, 2 way 2 position, is designed to shut off and release the air with the power supplied by 12 volt, 24 volt, 110 volt or 220 volt. It is suitable for the industrial areas like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textiles.
2/2-way Pneumatic Solenoid Valve Specification
|Number of Ports
|Number of Positions
|Port Size (Optional)
|Operating Pressure Range
|Max. Pressure Resistance
||12V DC, 24V DC, 110V AC, 220V AC
|Max. Action Frequency
||5Hz (5 cycles/second)
2-way Pneumatic Solenoid Valve Flow Characteristics

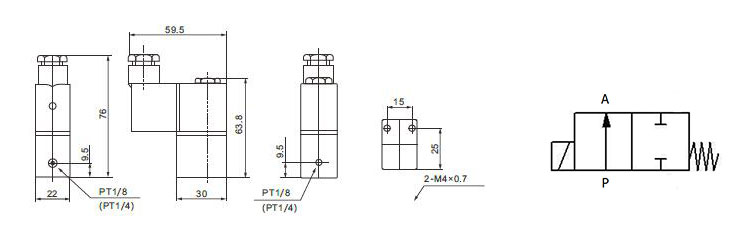

Pneumatic Solenoid Valve Dimensions
(body length unit = mm, port size unit = inch)
2/2 Way Solenoid Valve Symbol (Flow Diagram)
Tips: What is a solenoid valve?
The solenoid valve is industrial equipment controlled by electromagnetism. It is an automatic basic element to control the fluid, like air, water, oil, etc. It belongs to the actuator, but not limits to the hydraulic pressure and pneumatic control.
In the industrial control system, the solenoid valve is used to regulate the direction, flow rate, speed and other parameters of the medium. The solenoid valve can coordinate with different circuits to realize the anticipated control, with both control precision and flexibility being guaranteed.
