    Pneumatic Solenoid Valve, 3 Way, 12V/24V/110V/220V

    $39.89
    $45.49
    Pneumatic solenoid valve, 3/2 - 3 way 2 position, internally piloted, supplied with the voltage available for 12V DC, 24V DC, 110V AC and 220V AC, used to control the air, optional port size M5*0.8 or Rc 1/8". Favorable price and manufactory direct sale.
    SKU: ATO-3V1-M5/06
    *
    *
    Free shipping
    Delivery date: 6-12 days

    Pneumatic solenoid valve, 3-port 2-position, is suitable for controlling the air with 12 volt, 24 volt, 110volt and 220 volt. It is widely used in the chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textiles and so on.

    3/2 way Pneumatic Solenoid Valve Specification

    Model 3V1-M5 3V1-06
    Number of Ports 3 way (3 port)
    Number of Positions 2 position
    Operation Mode Internally piloted
    Flow Model Uni-Directional
    Port Size (Optional) M5*0.8 Rc 1/8"
    Media Air
    Operating Pressure Range 0.15~0.8MPa (22~116PSI)
    Max. Pressure Resistance 1.2MPa
    Voltage (Optional) 12V DC, 24V DC, 110V AC, or 220V AC
    Voltage Tolerance -10%~+10%
    Operating Temperature 5℃~60℃ (41℉~140℉)
    Insulation Grade Class B
    Protection Grade IP65
    Body Material Aluminum Alloy
    Seal Material NBR
    Wiring Method Terminal type
    Max. Action Frequency 5Hz (5 cycles/second)
    Lubrication No

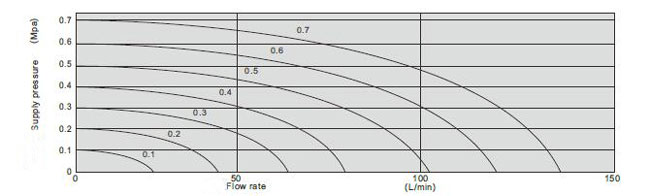

    3-way Pneumatic Solenoid Valve Flow Characteristics
    2 position 3 way solenoid valve flow characteristics

    Pneumatic Solenoid Valve Dimensions
    2 position 3 way solenoid valve flow dimensions
    Solenoid Valve Symbol (Flow Diagram)
    3 way 2 position solenoid valve symbol

    Tips: What's the structure of a solenoid valve?
    The solenoid valve is constituted by the solenoid coil and magnetic core. It is the valve body containing one or several holes. When the coil is get through or cut off with power, the operation of the magnetic core will result in that the fluid passes through the valve body and is cut off, so as to reach the goal of changing the fluid direction.
    The electromagnetic component of the solenoid valve is constituted by the fixed iron core, movable iron core, coil and so on. The valve body is constituted by the slide valve core, slide valve harness and spring base. The solenoid coil is installed on the valve body directly while the valve body is enclosed in the seal pipe, so as to constitute a simple and compact combination.
