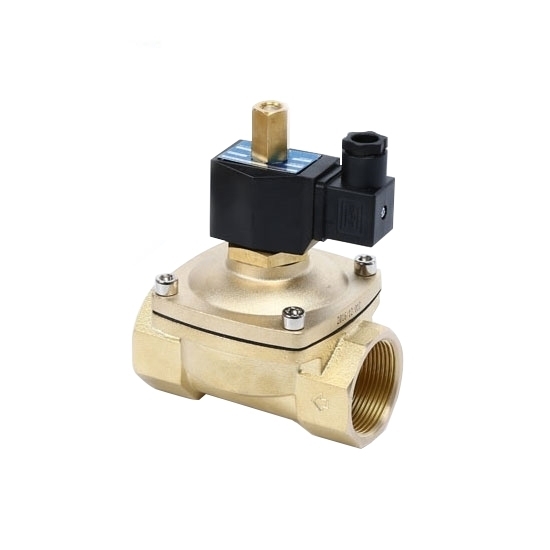

    Solenoid Valve, 2 Way, Normally Open, 24V/220V for air water oil

    Air, water, oil solenoid valve, Normally Open, 2-port 2-position, pilot-operated type, brass body and NBR seal, port sizes ranging from G3/8" to G2", supplying input voltage DC 24 volt and AC 220 volt available, safe and fast switching, favorable price and high reliability.
    Free shipping
    Delivery date: 6-12 days

    Two-way (2/2) Normally Open brass electric solenoid valves are used to release and shut off the flow of air, water and oil. The valve is open when the solenoid is de-energized and it is closed when energized. It is widely used in the areas like mechanical, textile, medical, food processing and so on.

    2/2 way Brass Solenoid Valve Specification

    Model 2WK160-10 2WK160-15 2WK200-20 2WK250-25 2WK350-35 2WK400-40 2WK500-50
    Valve Type 2 Way 2 Position, Normally Open
    Media Water, Oil, Air
    Operation Mode Pilot-operated
    Port Diameter (mm2) 16 16 20 25 35 40 50
    Flow Rate (Cv) 4.8 4.8 7.6 12 24 29 48
    Port Size G3/8" G1/2" G3/4" G1" G1¼" G1½" G2"
    Fluid Viscosity Under 20 CS
    Operating Pressure Water, Oil: 0~0.5MPa (0~72psi) Air: 0~0.7MPa (0~101psi)
    Max. Pressure Resistance 1.0MPa
    Voltage (Optional) 24V DC, 220V AC
    Voltage Tolerance ±10%
    Operating Temperature -5~+85℃ (23~185℉)
    Body Material Brass
    Seal Material NBR
    Coil Power 20VA

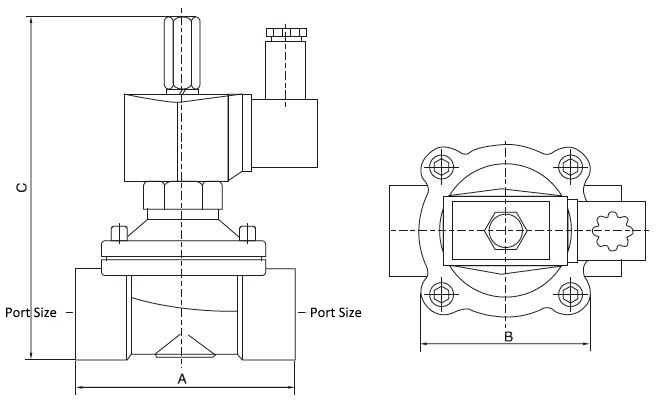

    Brass Solenoid Valve Dimensions
    Two way normally open electric solenoid valve dimensions

    Model Port size A B C
    2WK160-10 G3/8" 67.5 55.5 124.5
    2WK160-15 G1/2" 67.5 55.5 124.5
    2WK200-20 G3/4" 73 55.5 130
    2WK250-25 G1" 94 72.5 136.5
    2WK350-35 G1¼" 120 92.5 151.5
    2WK400-40 G1½" 122 92.5 157.5
    2WK500-50 G2" 129 95 170

    Two-way Solenoid Valve Symbol
    2W nc electric solenoid valve symbol
    Tips: Five tips for solenoid valve maintenance

    1. Regular inspection and maintenance, once or twice a year, is the best way to ensure the solenoid valve reliable work and long service life.
    2. When the solenoid valve is put into operation after the installation or after a long time stop, it needs to inject the medium for several times for test runs. The solenoid valve cannot be placed into service until it works normally.
    3. The power supply of solenoid valve must be cut off and the pressure of the medium should be discharged before the maintenance.
    4. The coil components should not be disassembled.
    5. All parts of the solenoid valve should be put in order when the valve is disassembled for cleaning. Thus, it is able to assemble the parts in order after cleaning.

    This video shows how ATO 24V DC water solenoid valve is operating internally, and tells you it is a good solenoid valve by testing the solenoid voltage with a multimeter.
