    Solenoid Valve, 2 Way, Normally Closed, 24V/220V for steam water air

    5 out of 5 based on 2 reviews | Write a review
    $91.38
    $103.78
    General purpose solenoid valve, designed for steam, water and air, two-way two-position (2/2 way), normally closed (N/C), direct-acting type, brass body and EPDM seal, able to handle fluid at high temperature up to 180℃, selectable voltage DC 24 volt or AC 220 volt, port sizes available for G1/2, G3/4, G1, G1¼, G1½ and G2 inches.
    SKU: ATO-VALVE-2L
    *
    *
    Free shipping
    Delivery date: 6-12 days

    2-port 2-position solenoid valves, direct-acting mode, are used to release and shut off the media of air, water and steam with brass body and EPDM seal. The solenoid valve is normally closed (NC), i.e., the valve is switched on when the coil is energized, and switched off when the coil is de-energized. G1/2" to G2" port sizes are for your selections. High reliability, long lifespan and favorable price.

    2/2 Way Steam Solenoid Valve Specification

    Model 2L170-15 2L200-20 2L250-25 2L350-35 2L400-40 2L500-50
    Valve Type 2 Way 2 Position, Normally Closed
    Media Steam, Air, Water
    Operation Mode Direct-acting
    Port Diameter (mm) 17 20 25 35 40 50
    Flow Rate (Cv) 12.6 17.46 27.27 53.46 69.83 69.83
    Port Size G1/2" G3/4" G1" G1¼" G1½" G2"
    Operating Pressure 0.1~1.5MPa (15~217psi)
    Max. Pressure Resistance 1.5MPa
    Voltage (Optional) 24V DC, 220V AC
    Voltage Tolerance ±10%
    Operating Temperature -5~+180℃ (23~356℉)
    Body Material Brass
    Seal Material EPDM

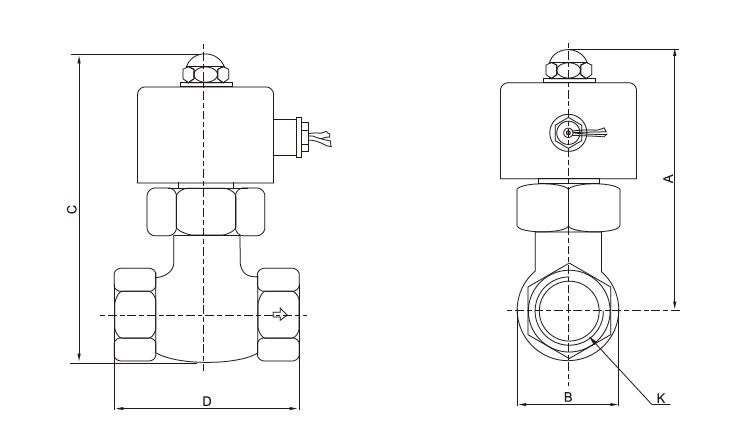

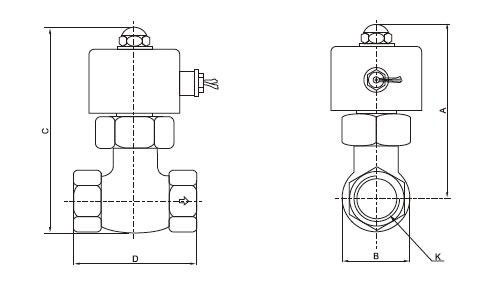

    2-Way Steam Solenoid Valve Dimensions
    steam solenoid valve nc dimensions

    Model Dimension
    A (mm) B (mm) C (mm) D (mm) K (inch)
    2L170-15 126 42 146 82 G1/2
    2L200-20 125 42 147 93 G3/4
    2L250-25 134 48 156 94 G1
    2L350-35 147 74 184 112 G1¼
    2L400-40 147 74 184 112 G1½
    2L500-50 170 90 215 170 G2

    Two-way Solenoid Valve Symbol
    2-way solenoid valve symbol
    Tips: Working principle of steam solenoid valve

    The steam solenoid valve can be divided into Normally Closed and Normally Open solenoid valve according to the on-off state.

    The working principle of Normally Closed steam solenoid valve is as follows. When the solenoid is energized, the armature drive the valve plug under the effect of electromagnetic force and the medium on the main valve flow away, thus reducing the pressure on the main valve. When the pressure reduces to a certain value, the armature makes the main valve opening under the pressure difference. The medium can pass through. When the solenoid is de-energized, the electromagnetic force disappears and the armature also reset. The solenoid valve is closed and the medium can’t flow. The ATO solenoid valves for steam is Normally Closed, suitable for running at the temperature from -5 to 180℃.

    On the contrary, the Normally Open solenoid valve is closed and stopping the flow of the medium when it is energized, and it is open when it is de-energized.

    Existing reviews of Solenoid Valve, 2 Way, Normally Closed, 24V/220V for steam water air
    Good products for the price
    Bought three of 24v solenoid valves. Arrived fast, and they are solid. I have used these valves on my project and so far have not had any issues. The quality of the items were very good for the price.
    From: Ron J. | Date: 06/11/2018
    Was this review helpful? Yes No (0/0)
    Can your solenoid valves handle 200 psi of steam?
    Can your solenoid valves handle 200 psi of steam?
    From: Shanicole W. | Date: 14/01/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our steam solenoid valve operating pressure is 15~217 psi.
