    Pneumatic Double Solenoid Valve, 5 Way, 12V/24V/110V/220V

    Pneumatic Double Solenoid Valve, 5 Way, 12V/24V/110V/220V

    Write a review
    $50.79
    $55.34
    Pneumatic air solenoid valve, two or three positions five ways - 5/2(3) way, double solenoid, is available for input voltages of DC 12 volt, DC 24 volt, AC 110 volt and AC 220 volt with pilot-operated mode, port size M5×0.8, Rc 1/8", 1/4", 3/8" in different size for your options, fast and safe switching on/off. High reliability and low price.
    SKU: ATO-TA-VALVE-4V-D
    *
    *
    Free shipping
    Delivery date: 6-12 days
    Related products
    Pneumatic Single Solenoid Valve, 5 Way, 12V/24V/110V/220V

    Pneumatic Single Solenoid Valve, 5 Way, 12V/24V/110V/220V

    $43.59 $49.55
    SKU: ATO-TA-VALVE-4V-S
    5 way 2 position (5/2) single solenoid air valve, pneumatic control, internal pilot operated, input voltage of 12V DC, 24V DC, 110V AC and 220V AC available, port size M5×0.8, Rc 1/8", 1/4", 3/8", 1/2" with different sizes for your selection, high reliability and long life time.
    Pneumatic Solenoid Valve, 2 Way, 12V/24V/110V/220V

    Pneumatic Solenoid Valve, 2 Way, 12V/24V/110V/220V

    $38.07 $42.85
    SKU: ATO-TA-VALVE-2V
    2 way 2 position (2/2 way) pneumatic solenoid valve, internally piloted type, control on/off of air, optional port size Rc 1/8" or 1/4" inch, and input voltage available for 12V DC, 24V DC, 110V AC and 220V AC. High quality and low price.
    Pneumatic Solenoid Valve, 3 Way, 12V/24V/110V/220V

    Pneumatic Solenoid Valve, 3 Way, 12V/24V/110V/220V

    $39.89 $45.49
    SKU: ATO-TA-VALVE-3V
    Pneumatic solenoid valve, 3/2 - 3 way 2 position, internally piloted, supplied with the voltage available for 12V DC, 24V DC, 110V AC and 220V AC, used to control the air, optional port size M5*0.8 or Rc 1/8". Favorable price and manufactory direct sale.
    Pneumatic Solenoid Valve, 3 Way, Normally Closed, 12V/24V/110V/220V

    Pneumatic Solenoid Valve, 3 Way, Normally Closed, 12V/24V/110V/220V

    $42.59 $48.77
    SKU: ATO-TA-VALVE-3V-NC
    3/2 way, normally closed, pneumatic solenoid valve is suitable for the applications in need of air control. It is internally piloted type, with M5×0.8, Rc 1/8", 1/4", 3/8" port size selectable. The voltage is also available for DC 12 volt, DC 24 volt, AC110 volt and AC 220 volt.
    Pneumatic Solenoid Valve, 3 Way, Normally Open, 12V/24V/110V/220V

    Pneumatic Solenoid Valve, 3 Way, Normally Open, 12V/24V/110V/220V

    $42.59 $48.77
    SKU: ATO-TA-VALVE-3V-NO
    Three-way Two-position (3/2) pneumatic solenoid valve, normally open (N/O), single coil, can handle the flow of air in safe and fast. The supply voltage is selectable among DC 12 volt, DC 24 volt, AC110 volt and AC 220 volt, and the port size is also avaliable of M5×0.8, Rc 1/8", 1/4", 3/8" for your choice.

    5/2(3) way double solenoid pneumatic valve is used to control the flow of the compressed air with 12V DC, 24V DC, 110V AC and 220V AC, and widely applied in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.

    5/2(3) Pneumatic Solenoid Valve Specification

    Model 4V120-M5 4V120-06 4V220-06 4V220-08 4V320-08 4V320-10
    Number of Ports 5-way
    Number of Positions 2-position/3-position
    Operation Mode Internally Pilot Operated
    Number of Solenoid Double
    Port Size M5×0.8 Rc 1/8" Rc 1/8" Rc 1/4" Rc 1/4" Rc 3/8"
    Media Air
    Operating Pressure Range 0.15~0.8MPa (22~116PSI)
    Max. Pressure Resistance 1.2MPa
    Voltage (Optional) 12V DC, 24V DC, 110V AC, 220V AC
    Voltage Tolerance -10%~+10%
    Operating Temperature 5℃~60℃ (41℉~140℉)
    Insulation Grade Class B
    Protection Grade IP65
    Body Material Aluminum Alloy
    Seal Material NBR
    Wiring Method Terminal type
    Max. Action Frequency 5Hz (5 cycles/second)
    Lubrication No

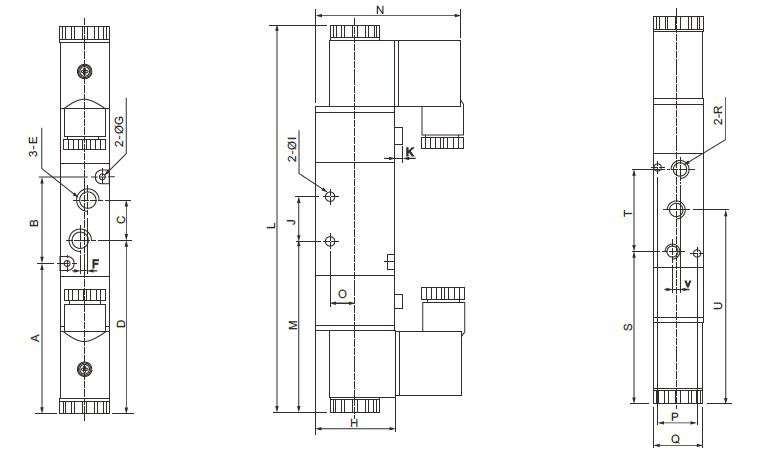

    5-way Pneumatic Solenoid Valve Dimensions
    2 position 5 way double solenoid valve dimensions

    Model A B C D E F G H I J K L M N O P Q R S T U V
    4V120-M5 56.2 30 14 64.3 M5×0.8 0 Φ3.3 27 Φ3.3 14 2.5 142.4 64.2 55 9.5 13 18 M5×0.8 57.7 27 71.2 0
    4V120-06 56.2 30 16 63.2 PT1/8 3 Φ3.3 27 Φ3.3 14 2.5 142.4 64.2 55 9.5 13 18 PT1/8 57.2 28 71.2 1
    4V220-06 66.4 38 18 76.4 PT1/8 0 Φ3.2 35 Φ4.3 20 3 171 75.4 66.7 10.5 17 22 PT1/8 67.4 36 85.4 0
    4V220-08 66.4 38 21 74.9 PT1/4 3 Φ3.2 35 Φ4.3 20 3 171 75.4 66.7 10.5 17 22 PT1/8 67.4 36 85.4 0
    4V320-08 69.9 50 22 83.9 PT1/4 0 Φ4.3 40 Φ4.3 24 2.4 190 82.9 69.2 1.5 20 27 PT1/4 72.4 45 94.9 0
    4V320-10 69.9 50 24 82.9 PT3/8 4 Φ4.3 40 Φ4.3 24 2.4 190 82.9 69.2 13.5 20 27 PT1/4 72.4 45 94.9 0

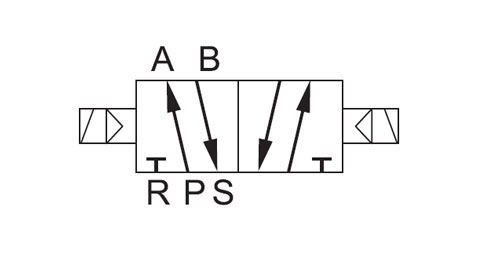

    Solenoid Valve Symbol (Flow Diagram)
    5 way 2 position double solenoid valve symbol
    Tips: How does a direct-acting solenoid valve work?

    The following is brief introduction of direct-acting solenoid valve.

    • Working principle
      When the power is on, the solenoid coil generates the electromagnetic force to lift the closure member from the valve seat to open the valve. When the power is cut off, the electromagnetic force disappears and the spring presses the closure member on the valve seat to close the valve.
    • Characteristics
      It can work normally in the vacuum, negative pressure and zero pressure. However, the diameter normally doesn’t exceed 25mm.
