    Temperature Transmitter, PT100/E/K/S/B/T/J/N/R Type

    5 out of 5 based on 1 reviews | Write a review
    Temperature transmitter adopts 2-wire transmission mode. Temperature transmitter converts PT100 RTD sensor and E/K/S/B/T/J/N/R type thermocouple signal to 4-20mA output signal that is linear with the input electrical signal or the measured temperature. Head mounted temperature transmitter can be installed in the protection head of the thermocouple and RTD sensor to form an integrated structure. DIN rail temperature transmitter can be installed in the control cabinet.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Temperature transmitter supports optional PT100, PT1000, E/K/S/B/T/J/N/R type thermocouple input signal.


    Accuracy ≤0.2%FS
    Power supply DC 12-35V
    Input signal * RTD (PT100, PT1000), thermocouple (E/K/S/B/T/J/N/R)
    Output signal 4-20mA
    Transmission mode 2-wire
    Load resistance 0~600Ω (DC 24V), rated load 250Ω
    Temperature influence ≤0.05/1℃
    Mechanical vibration f≤55Hz, amplitude<0.15mm
    Working environment Temperature: -25~+80℃, humidity: 5%~95%RH

    Measuring range chart:

    Type of sensor Measuring range Minimum measuring range (difference value of upper and lower limits)
    E 0~800℃ 300℃
    K 0~1300℃ 400℃
    S 0~1600℃ 600℃
    B 0~1800℃ 800℃
    T 0~400℃ 200℃
    J 0~1200℃ 300℃
    N 0~1200℃ 400℃
    PT100 -200~+600℃ 50℃
    PT1000 -200~+600℃ 50℃

    Dimensional drawing:

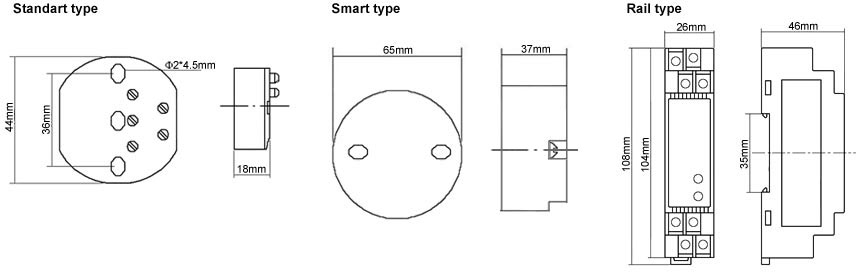

    Temperature transmitter dimensional drawing
    Wiring diagram:
    Temperature transmitter wiring diagram
    Tips: Temperature transmitter calibration

    1. Calibrate the temperature transmitter on site, particularly the transmitter with thermocouple input. If there's automatic temperature compensation for reference end, the compensation lead method shall be adopted for connection calibration. When calibrating, the output impedance of the calibrator shall be smaller enough than the input impedance of the calibrated thermocouple temperature transmitter, otherwise a large measurement error may occur.
    2. Adjustment before calibration. Use the method of changing input temperature signal to adjust the corresponding output lower limit value and output upper limit value, make it consistent with the lower and upper limits value of the standard. Do not adjust zero and range during the measurement process.
    3. Calibration process. Selection of the calibration points is evenly distributed by measuring range. Generally no less than 5 points shall be selected, including the upper limit, the lower limit and the points near the 50% range. Read and record in turn from the lower limit to the upper limit and then reverse to the lower limit, measure for three cycles. Calculate the difference between the average value and the standard output value of the calibrated points within the 3 cycles through the comparison method, thus getting the error of all the calibrated points.

    In this video, ATO will show you how to connect RTD sensor to temperature controller and how to use RTD sensor to measure water temperature.

    Existing reviews of Temperature Transmitter, PT100/E/K/S/B/T/J/N/R Type
    My questions about temperature transmitter
    Hey good day Im looking for a thermocouple and a transmitter for it. Do you have any low powered solutions? The desired ranges are: Temperature range: -20ºC to 185ºC. The output signal can be either: 4-20ma or 0-10v (the first one is better for us) and a power consumption of 5v if possible I know it might not though, thank you.
    From: Knicholas | Date: 06/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We can customize the temperature transmitter to be with a 5V power supply, but it can only output 0-5V signal.
