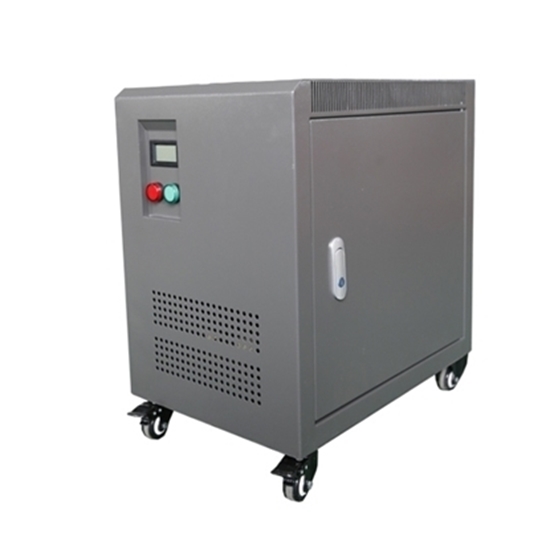

    Used 3 Phase 45kVA Isolation Transformer, Delta Configuration 240V to 240V

    $5,629.15
    Reasonable price used 3 phase 45 kVA isolation transformer for sale online. 240V to 240V isolation transformer with 4 wire three phase high-leg delta configuration and 50 Hz / 60 Hz frequency. Working temperature between -15 ℃ and 40 ℃. Enclosure protection grade of 3 phase isolation transformer is IP24.
    SKU: ATO-3UIT-45
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-20 days

    Used 240V to 240V 3 phase isolation transformer with a cheap price for sale. H level insulation grade of isolation transformer. 45 kVA isolation transformer has high working efficiency, can be achieved 95%.

    Features:

    • Three phase isolation transformer with 45 kVA power rating.
    • Dry air self cooling of cooling mode on 240V to 240V isolation transformer.
    • Isolation transformer with 4 wire three phase high-leg delta configuration.
    • Better dielectric strength and insulation resistance and IP24 protection grade of enclosure.

    Specifications:

    Basic Model ATO-3UIT-45
    Phase 3 phase
    Capacity 45 kVA
    Weight of Copper Wire Transformer Open Type: 200 kg; Protected Type: 232 kg
    Technical Parameters Primary Voltage 240V, 4 wire high leg delta configuration (240V L-L, 120V L-N, and 208V with the high leg)
    Secondary Voltage 240V, balanced delta configuration, 3-phase (L1, L2, L3 + G)
    Voltage Convert Three phase to three phase
    Frequency 50 Hz / 60 Hz
    Wiring Mode 4 wire three phase high-leg delta configuration
    Winding Material Copper wire enclosure
    Work Efficiency ≥95%
    Insulation Resistance ≥50 MΩ
    Electrical Strength 3000V AC / 1 min
    Noise <35-65 dB (1 meter)
    Insulation Grade H level
    Enclosure Protection Grade IP24
    Cooling Mode Dry type air cooling
    Overload Capacity Allow more than 1.2 times rated load to work for up to 4 hours
    Certificate CE, ISO
    Warranty 12 months
    Working Environment Temperature -15 ℃ ~ 40 ℃
    Humidity ≤90% RH, without condensation
    Altitude <1000m, non corrosive gas and conductive dust


    3 Phase Isolation Transformer Details:

    3 phase isolation transformer details

    45 kVA Isolation Transformer Installation Dimension:

    3 phase isolation transformer dimension

    Copper Wire Transformer Size:

    • Open Type: a*b*c=440*350*420 mm
    • Mouting Size: d*e=300*200 mm
    • Protected Type: A*B*C=420*610*610 mm

    Tips: Development Trend of Three Phase Isolation Transformer

    • Greener. Environmental protection is the general trend, with the shortage of energy and the aggravation of environmental pollution, major manufacturers have locked in the next development goal of energy conservation and environmental protection. Three-phase isolation transformer is also the same, energy conservation and environmental protection is an eternal subject. The development and introduction of new materials and new technology will make the future three-phase isolation transformer more energy saving, more quiet operation.
    • High safety factor. Three phase isolation transformer is used in major projects, such as science and technology, medical treatment, production and other fields. Especially in summer peak season, higher requirements for transformer safety are put forward. In the future, three-phase isolation transformer will be further reliability certification in terms of safety, and power safety will be the goal of unremitting efforts.
    • Scaling. As the population expands, so does the demand for electricity. The most obvious problem of power shortage is the peak consumption in summer and winter. Expanding capacity is the fundamental solution.
