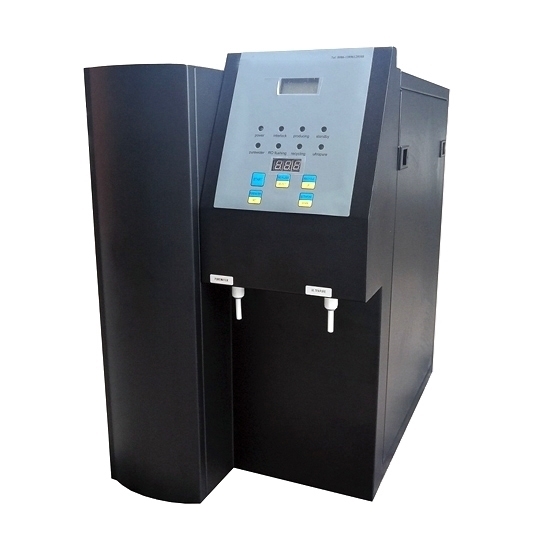

RO Water Purification System, <20ppb TOC, Type 1 & 3

Low cost 10L per hour laboratory water ultrapurifier with 30L tank and metal plate housing, IC microcomputer intelligent control/Full automatic PLC control, ultrapure water & pure water from one unit.

Specification

Note: The model end with 's' has single stage RO module, suitable for feed water inlet TDS<200PPM. Model end with 'd' have double stage RO module, suitable for feed water inlet 200ppm<TDS<400ppm. If feed water inlet TDS>400PPM, suggest an additional industrial type softener.

Product Features
Power-on self-test, water shortage protection alarm, power-off protection.
Built-in RO membrane anti-scaling program, RO membrane manual cleaning button.
Built-in ultra-pure water automatic cycle program, manual cycle button to maintain ultra-pure water quality.
On-line monitoring of water resistance, real-time display of system operating status and warnings.
With water quality and water production upgrade function.
Intelligent large-capacity ultra-purification column with built-in RFID chip.
Digital display the time of regular intake or the water pressure.
Easy to clean, disinfect and drain off waste water.

Lab Test and Corresponding Water Type List

Main Consumable List (A water purification system is equipped with a set of consumables. If you want to buy some of the following consumables, contact us now.)

Tips: Operation process of ATO laboratory ultrapure water system
1. Check whether the water source stainless steel ball valve switch is open and the power cord is connected.
2. Press the power button. At this time, the “system water making” indicator lights up and starts to work normally.
3. Every 2-3 days, please press the "System Wash" button before taking water after booting. At this time, the system is manually cleaned for 1-2 minutes. After washing, press the "System Wash" switch again.
4. Please keep the plastic ball valve on the water storage bucket in the same direction as the pipeline connection. At this time, do not turn off the ball valve switch. Do not twist the vacuum plug on the bottom of the water storage bucket, otherwise the water storage bucket will be scrapped.
5. Pre-processor cleaning: After a period of time when the equipment is in use, the white PP polymer fiber filter starts to change from white to yellow. At this time, remove the bucket of the preprocessor with a special wrench equipped, take out the fiber filter element and wash it with high-pressure tap water. When reinstalling, check whether the plastic pad inside the bucket is properly mated, and make sure that the bucket does not leak after installation. Activated carbon cleaning is the same method. Under normal circumstances, the cleaning time is 2-3 months / times.
