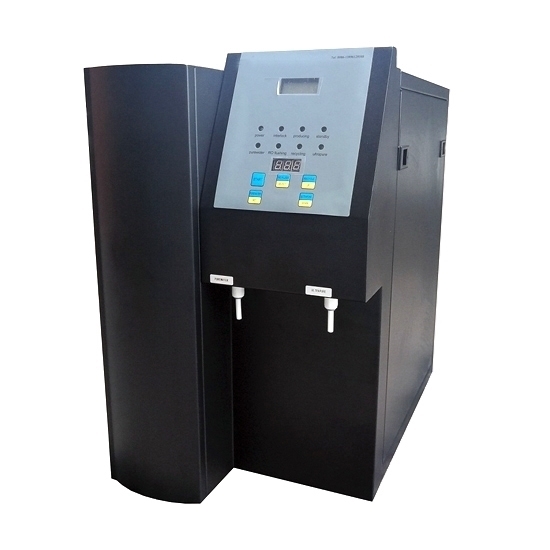

Lab Water Purification System, <3ppb TOC, Type 1 & 3

5 out of 5 based on 1 reviews | Write a review
$6,028.90
Low TOC and pyrogen water purification system, RO Type I deionized ultra water purifier for lab, ultraviolet (UV) sterilized, IC automtical controling, used to IC/ICP-MS/HPLC/LC-MS organic analysis, TOC analysis, molecular biologu related experiment, e.g. PCR, DNA/RNA preparation, protein analysis and so on.
*
*
SKU: ATO-WPS-Mogene610
30-day Returns
Free Shipping
Delivery date: 6-12 days

Good quality reverse osmosis ultra-pure water system, for use with applications requiring Type 1 and Type 3 lab water, 18.25MΩ-cm@25℃ resistivity, removes particulates from feed water to less than 1 CFU/mL.

Specification

Model Mogene610s/ 620s/ 630s Mogene610d/ 620d/ 630d
Process Single pass RO system Double pass RO system
Output of pure water ≥10L/H ≥10L/H
Output of ultrapure water ≥ 1-1.5L/min ≥ 1-1.5L/min
Resistivity at 25℃ 18.25MΩ.cm 18.25MΩ.cm
Conductivity at 25℃ (Type 3 water) ≤10μs/cm ≤5μs/cm
TOC < 3ppb < 3ppb
Pyrogens/endotoxins < 0.025EU/ml < 0.025EU/ml
Bacteria < 1cfu/ml < 1cfu/ml
Particles (> 0.22μm) < 1/ml < 1/ml
Absorbance (254nm,1cm optical distance) ≤ 0.001 ≤ 0.001
Reactive Silica (SiO2) < 0.01ppm < 0.01ppm
Heavy metal < 0.01ppm < 0.01ppm
Electrical requirements 220V (230V, 240V) 50Hz
Power ≥100W ≥150W
Dimension (L/W/H) 340*550*530mm 340*550*530mm
Weight ≥34KG ≥45KG
Tank capacity  30L

Note: The model end with 's' has single stage RO module, suitable for feed water inlet TDS<200PPM. Model end with 'd' have double stage RO module, suitable for feed water inlet 200ppm<TDS<400ppm. If feed water inlet TDS>400PPM, suggest an additional industrial type softener.

Product Features
Power-on self-test, water shortage protection alarm, power-off protection.
Built-in RO membrane anti-scaling program, RO membrane manual cleaning button.
Built-in automatic cycle timing of ultra pure water, ultra pure water conservation.
On-line monitoring of water resistance, real-time display of system operating status and warnings.
Pure water tank with cone type structure,a discharge valve at the bottom, easy to clean and disinfect exhausted.
Digital display the time of regular intake or conveying water pressure. Can set time of water outlet.

Lab Test and Corresponding Water Type List

Test Name Type III Water Type II Water Type I Water
Lab glassware washing
Hydroponics
Sterilizer use water
Gas generator use water
Conventional test
Reagents/ drugs preparation, dilution
Feed water for ultrapure water
IC
LC/LC-MS
HPLC
AAS
ICP/ICP-MS
GC/GC-MS
Trace analysis
TOC analysis
Organic analysis
Inorganic analysis
Environmental analytical test
Microelectronics parts cleaning
Precision instrument use water
Analytical reagent/ drugs preparation, dilution
Mass spectrometry
PCR application/analysis
DNA/RNA research
Proteomics research
Plant and animal cell culture
Toxicity analysis
Microbiology experiment
Immunological experiment
Biochemistry experiment
Serum test
IVF

Main Consumable List (A water purification system is equipped with a set of consumables. If you want to buy some of the following consumables, contact us now.)

No. Name Specification Lifespan
1 PP filter 1st stage, 10”/20” (5μm) 3-6 months
2 Activated Carbon filter 2nd stage, 10”/20” 6-12 months
3 Softener filter 3rd stage, 10”/20” 6-12 months
4 Precision filter 4th stage, 10”/20” (1μm) 10-12 months
5 RO membrane 75g/300g 1-2 years
6 Ultra purification resin column   1 year
7 Micro filter 0.22μm 1 year
8 UV lamp 185/254nm 8000 hours
9 Pure water tank 30L, 80L, 120L

Tips: How to choose the right lab purification water system.
Uses: Different experimental projects have different requirements for the quality of produced water. Based on this, the appropriate machine model can be roughly determined. For example, the amount of Type 3 water used in the laboratory is relatively large, the amount of ultra-pure water is small, or only Type 2 or Type 1 water is used.
Water intake mode: whether to take water continuously or intermittently during work. Are there any special requirements for water pressure or water storage buckets, hoses, etc.
Water use during peak periods: duration of water intake peaks, water requirements, and water quality.
According to the daily water consumption, further determine the specifications of the required ultrapure water system.
Working environment: location, space, distance of water inlet and outlet, power supply, etc.
