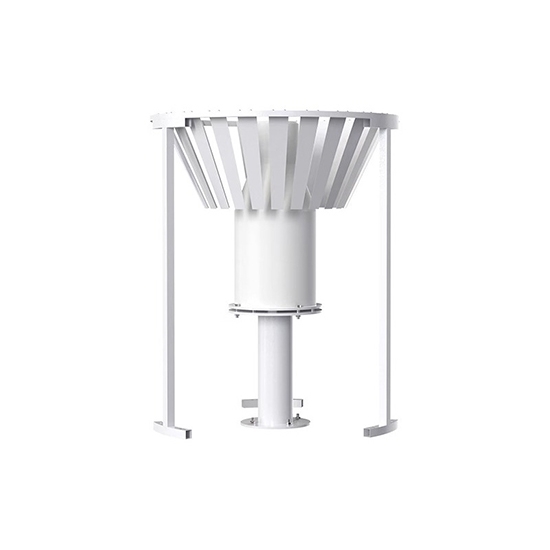

Weighing Bucket Rain Gauge Sensor with Pulse/RS485

5 out of 5 based on 1 reviews | Write a review
$9,537.63
High-precision weighing bucket rain gauge sensor to measure precipitation intensity, with RS485, pulse and other output forms, can be adapted to different collection equipment. All type of precipitation monitoring in solid, liquid and mixed solid-liquid state can be carried out. The rainfall sensor can output precipitation intensity and cumulative precipitation, and the real-time precipitation intensity measurement range is 6~1800mm/h, which can ensure high measurement accuracy under various rainfall intensity conditions such as light rain and heavy rain.
*
SKU: ATO-RS-WB008
30-day Returns
Free Shipping
Delivery date: 6-12 days

Weighing rain sensor has a low power consumption mode of operation, the collection system can be powered by solar energy. Simple and convenient installation, low maintenance, simple calibration with a variety of output forms, can be adapted to different collection equipment. The use of standard parts design, modular components and castings to ensure the high reliability of the rain and snow gauge, making it suitable for all-weather rainfall and snowfall observation in harsh environments.

Specification

Model ATO-SN-3008-CYL
Power Supply 12V DC
Output RS485/pulse (optional)
Power Consumption 0.15W (DC12V)
Range 0~1000mm
Resolution 0.1mm
Inside Diameter φ200±0.6mm
Tolerance ±0.2mm, ≤10mm
±2% for ≤10mm
Transmitter Element Temperature Resistance -35°C~65°C
Transmitter Element Humidity Resistance 0%RH~95%RH (non-condensing)

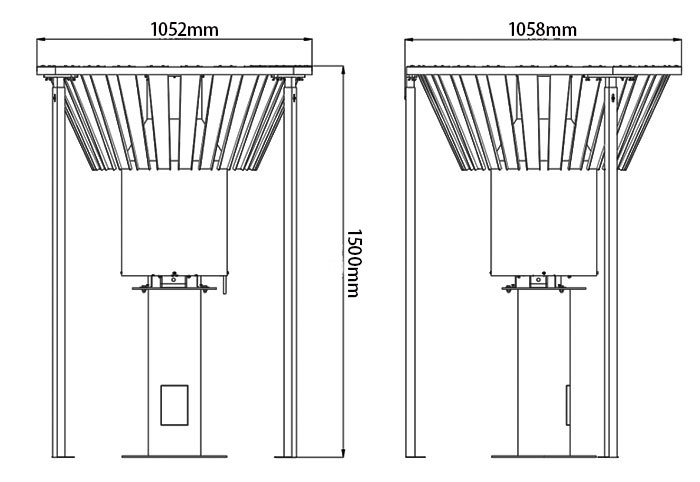

Dimensional Drawing (unit: mm)

Weighing bucket rain sensor sizeDetails

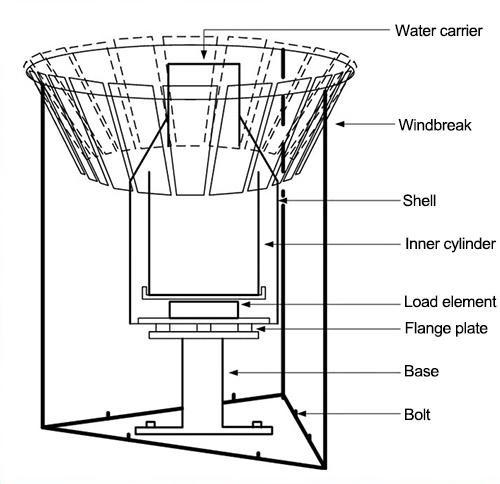

Weighing bucket rain sensor detail

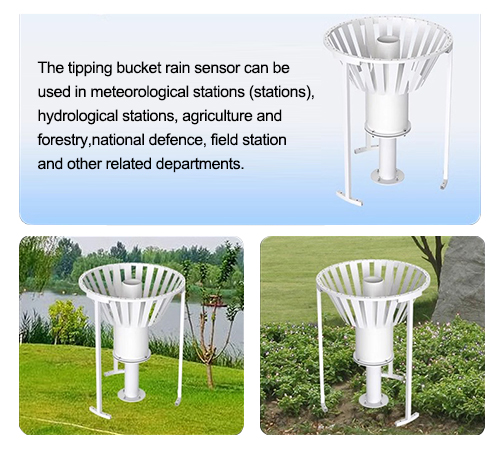

Applications

Weighing bucket rain sensor applicationTips: Weighing bucket rain sensor features

  • Wide range of precipitation intensity measurement up to 6~1800mm/h.
  • Rainfall sensor with automatic drainage, when the amount of water up to 80% of the range can be automatically drained.
  • Measurement accuracy is high, compared with the traditional traditional tipping bucket tube is smaller or larger rain intensity can be measured accurately.
  • Weighing bucket rain sensor shell design is convex type, can play the wind, reduce evaporation and increase the precipitation capture function.
