0.022μF 1kV Disc Ceramic Capacitor

5 out of 5 based on 1 reviews | Write a review
$1.29
Wholesale price high voltage disc ceramic capacitor with radial lead wire and 10mm lead pitch, 0.022μF (22000pF, 22nF) capacitance, 1kV voltage, 10% tolerance. This power ceramic capacitor can be used for household appliances.
SKU: ATO-CC-1KV223K
This product has a minimum quantity of 100
30-day Returns
Free Shipping
Delivery date: 6-12 days

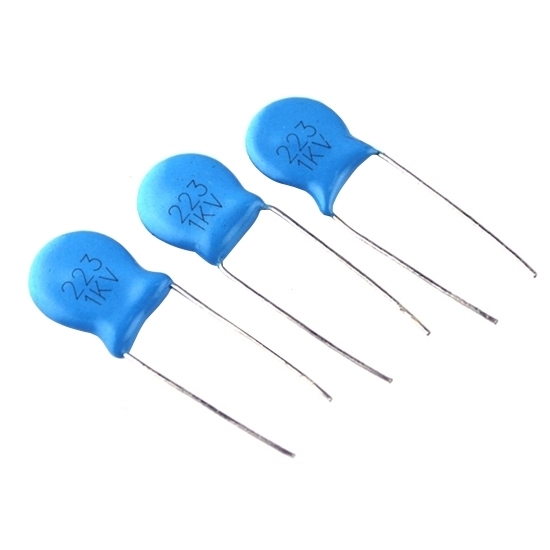

223 1kV disc ceramic capacitor is a high voltage power capacitor with 10mm lead pitch, which can be used for negative ion products, lasers, X-ray machines, control and measurement equipment, high-voltage packages, igniters, generators, transformers, power equipment, voltage doubling modules, welding machines, electrostatic spraying and other electromechanical equipment that requires high voltage and high frequency.

Specification

  • Model: ATO-1KV223K
  • Series: High Voltage Disc Ceramic Capacitor
  • Capacitance: 0.022μF (22000pF, 22nF)
  • Rated voltage: 1kV (1000V)
  • Tolerance: 10%
  • Dielectric Material: Y5T
  • Operating Temperature Range: -40℃ - 105℃
  • Feature: High Frequency
  • Lead Type: Radial Lead Wire
  • Lead Pitch: 10mm
  • Size: 6.5mm
  • Installation Type: In-line
  • Package: DIP
  • Application: Household Appliances
  • Medium Material: Ceramic (Porcelain)
  • Loss: 0.01%
  • Weight: 0.02kg

Note:

  1. Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
  2. Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
  3. Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
  4. Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: High voltage ceramic capacitor advantages

  • The capacitance loss of high voltage ceramic capacitors has high stability with temperature and frequency.
  • The special series structure of high voltage ceramic capacitors is suitable for high-voltage extremely long-term working reliability.
  • High voltage ceramic capacitors have high current ramp rates and are suitable for non-inductive structures in large current loops.
Existing reviews of 0.022μF 1kV Disc Ceramic Capacitor
great 1kv ceramic capacitor
These are great! They work as expected and it deserve the price!! Came fast and packed well, good value.
From: Stults | Date: 29/06/2022
Was this review helpful? Yes No (0/0)
