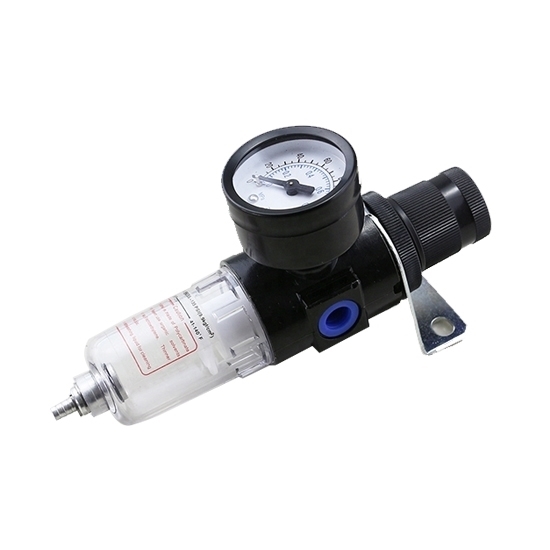

    1/4" 1pc Pneumatic Filter AFR2000

    $60.35
    The 1/4" 1pc pneumatic filter is used to separate condensed moisture and oil in the compressed air and other impurities, so that the compressed air can be purified initially. the general working pressure is 1 MPa -1.5 MPa. High performance filter with cheap price.
    SKU: ATO-PF-1/4
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Feature

    1.The 1/4" 1pc pneumatic filter with delicate and compact structure, which is convenient for installation and application.
    2.The pressed-in self-locking mechanism can prevent the abnormal movementof the set pressure caused by external interfere.
    3.The pressure loss is low and the efficiency of water separating is high.
    4.The quantity of oil dripping can be directly observed through transparent checkdome.
    5.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Specification

    Model AFR2000
    Fluid Air
    Port size 1/4"
    Filtering grade 40μm or 50μm
    Pressure range Semi-auto and automatic drain: 0.15-0.9MPa ( 20-130Psi ), manual drain: 0.05-0.9MPa ( 7-130Psi )
    Max.pressure 1.0MPa ( 145Psi )
    Proof pressure 1.5MPa ( 215Psi )
    Temperature range -5~70℃
    Capacity of drain bowl 15CC
    Weight 260g

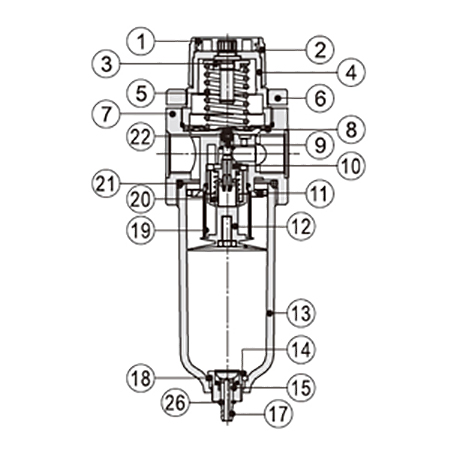

     1pc pneumatic filter dimension 1Push button 13Drain bowl
    2Adjusting button 14Drain kit
    3Adjusting nut 15Return spring
    4Adjusting seat 16Drain seat
    5 Adjusting spring 17Drain pillar
    6Fixed ring 18Drain O-ring
    7Body 19Filter element
    8Diaphragm 20Return spring
    9Balance needle 21Drain bowl O-ring
    10Needle gasket 22Needle O-ring
    11Air guider 23 Bowl guard switch
    12Umbrella baffle

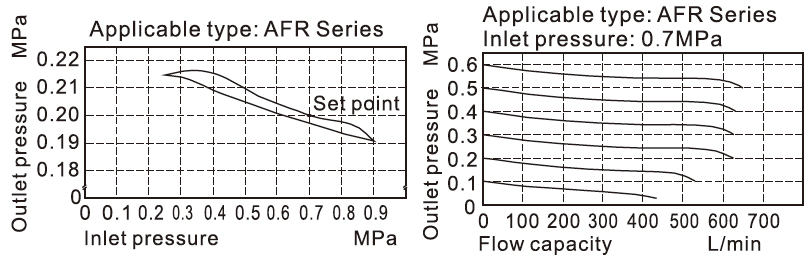

     Pressure and feature of flow

    1pc pneumatic filter dimension

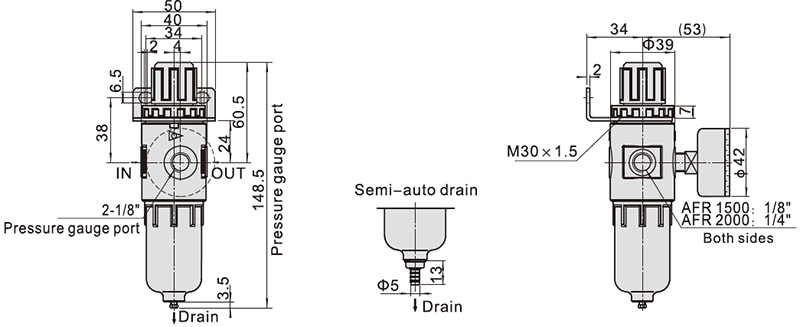

    Dimension(Unit: mm)

    1pc pneumatic filter dimension

    Tips

    Choose the model with heating function in the northern area
    The cold weather is easy to cause damage to the water cup of the 1/4" 1pc pneumatic filter by freezing the water under it, especially in the north. In order to prevent the oil-water separator from freezing, many users put a thick cotton coat on the oil-water filter. For the safety, it is recommended to use an oil-water separator with electric heating function.
