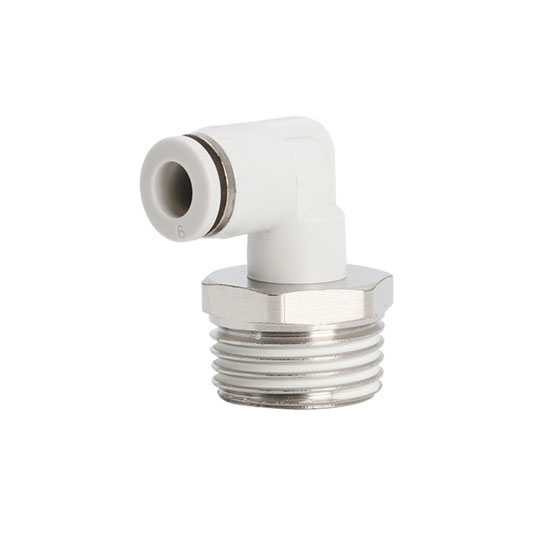

1/4 Inch Air Hose Fitting, 90 Dgree

5 out of 5 based on 2 reviews | Write a review

$15.86

90 Degree elbow air hose fitting thread size 1/4 inch, outer diameter 4mm, 6mm, 8mm, 12mm are available, corrosion resistance and high pressure resistance, used to connect air pipes, air compressors, air drills, impact wrenches, air screwdrivers and other pneumatic tools.

Outer Diameter *

SKU: ATO-AHF-PL402

This product has a minimum quantity of 5

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Air hose coupler 1/4" pipe thread for sale, low cost, it has the characteristics of tight connection, strong sealing, 360-degree rotation, high pressure resistance and no air leakage, suitable for the connection of pneumatic pipelines, compressed air and nitrogen.

Specification:

Model	ATO-AHF-PL402
Outer Diameter	4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Applicable Tube	PU/Nylon pipe
Working Pressure	-1 kPA ~ 2.5 A5mPA
Applicable Fluid	Compressed air, vacuum, oil
Working Temperature	-60℃ ~ 80℃
Weight	0.1 kg
Warranty Period	12 Months

1/4" Air Hose Fitting Details

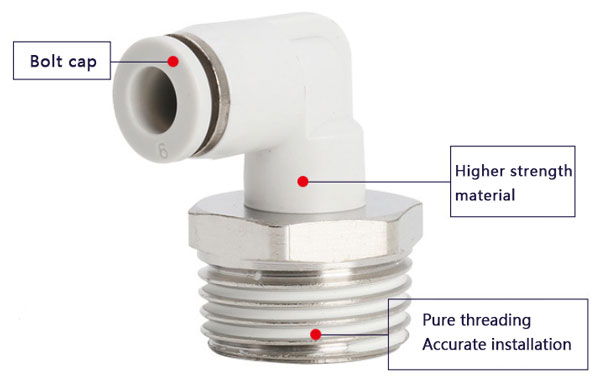

Air compressor fitting details

Tips: How to use Air hose Fitting?

1. No pull or rotation is allowed in connection thread and pipe, otherwise thread and pipe Joints will fall off. Swivel joints should be used when pulling or turning.
2. Pipe bending should be greater than the minimum bending radius, otherwise the pipe is easy to break.
3. Flammable, explosive or toxic gases such as gas, gas fuel and refrigerant cannot be transported in the tube.
4. General industrial water can be used.
5. Pulse pressure should be controlled, do not exceed the maximum operating pressure, otherwise easy to damage.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
