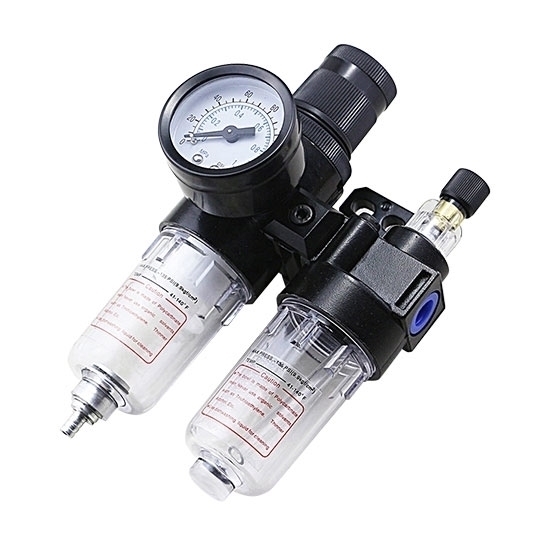

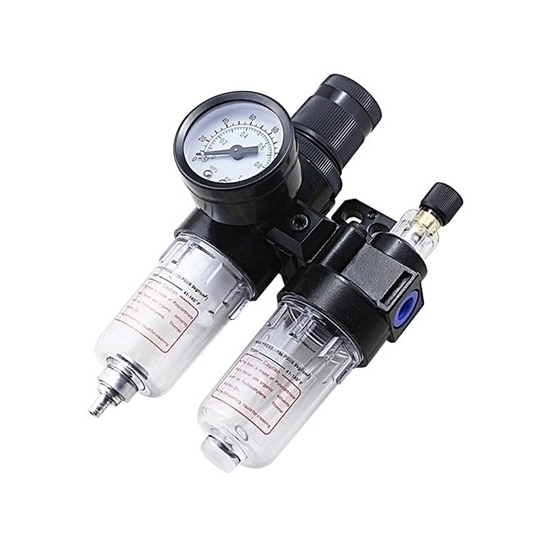

    1/4” NPT Air Filter with Regular Trap

    5 out of 5 based on 1 reviews | Write a review
    $55.35
    The 1/4” NPT air filter with regular trap is mainly to separate the water in the fuel, so that the fuel can be burned more fully in the engine cylinder, high performance oil-water separator with 15 cc drain bowl can make your engine work better.
    SKU: ATO-AF-1/4-NPT
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The 1/4" NPT air filter with delicate and compact structure, which is convenient for installation and application.
    The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
    The pressure loss is low and the efficiency of the 1/4" oil-water separator is high.
    The quantity of oil dripping can be directly observed through transparent checkdome.
    In addition to standard type, lower pressure type is optional ( The highest adjustable pressure is 0.4MPa ).

    Specification

    Model ATO-AFC2000
    Fluid Air
    Port size 1/4"
    Filtering grade 40 μm or 50 μm
    Pressure range Semi-auto and automatic drain: 0.15-0.9 MPa ( 20-130 Psi ), manual drain: 0.05-0.9 MPa ( 7-130 Psi )
    Max pressure 1.0 MPa ( 145 Psi )
    Proof pressure 1.5 MPa ( 215 Psi )
    Temperature range -5~70 ℃
    Capacity of drain bowl 15 cc
    Capacity of oil bowl 25 cc
    Recommended lubricant ISO VG 32 or equivalent
    Weight 500 g

    Selection table

    Drain type Semi-auto drain
    Manual drain
    Pressure gauge Pressure gauge
    No pressure gauge
    Scale 1 MPa, 2 Psi, 3 bar, 4 kgf/cm² & Psi
    Filtering grade 40 μm
    5 μm
    Thread type PT ( scale: MPa or kgf/cm² & Psi )
    G ( scale: bar )
    NPT ( scale: Psi )



    14” NPT oil water separator dimension  No. ltem
    1 A Series filter & regulator
    2 A Series bracket
    3 A Series gasket
    4 A Series fixed kit
    5 screw
    6 A Series lubricator

     Pressure and feature of flow

    air filter with regular trap



    Dimension(Unit: mm)

    air filter with regular trap

    Tips

    The working steps of the 1/4" oil-water separator in the car:
    1. After the fuel enters the filter separator, the solid impurities are first filtered out by the filter layer.
    2. In the demulsification layer, the oil and water in the emulsified state are separated.
    3. In the 1/4" oil-water separator, small water droplets will condense into large water droplets and be stored in the sump.
    4. Through the water repellent effect of the separated filter element, the small water droplets that do not condense are collected into the sedimentation tank, and then discharged from the drain valve.
    5. Finally, drain the fuel whose moisture has been separated from the 1/4" NPT air filter with regular trap.
