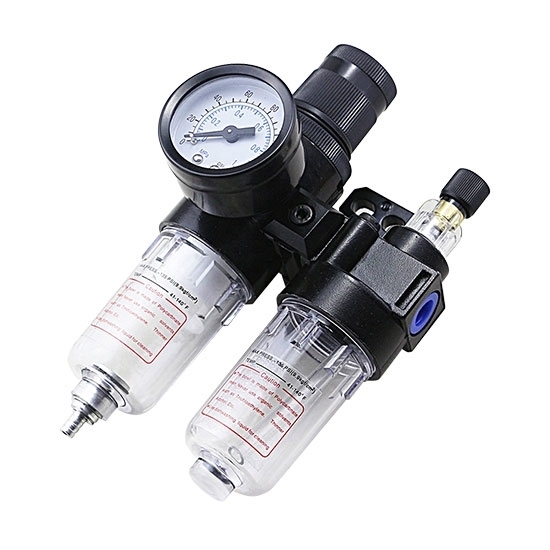

1/8" FRL Filter Regulator Lubricator

5 out of 5 based on 2 reviews | Write a review

$69.99

Cost-effective 1/8 inch pneumatic FRL filter regulator lubricator combo is used for filtering water and oil in compressed air and keeping air source in a constant state, with pressure gauge and moisture trap, optional PT, G, NPT thread type, working pressure up to 145 PSI.

Pressure Type *
Drain Type *
Thread Type *
Filtering Grade *
Pressure Gauge *

SKU: ATO-ACWS-18

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Pneumatic FRL unit is a combination of filter, regulator and lubricator. It can filter the water, oil and other impurities in the compressed air, and keep the air source in a constant state to reduce the damage to valves or actuators of the device.

Features

The structure of FRL unit is delicate and compact, which is convenient for installation and application.
The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
The pressure loss is low and the efficiency of water separating is high.
The quantity of oil dripping can be directly observed through transparent check dome.

Specification

Model	ATO-AFC1500
Fluid	Air
Pressure Type (Optional)	Standard (0.9 MPa), Lower Pressure (0.4 MPa)
Drain Type (Optional)	Semi-auto Drain, Manual Drain
Port Size	1/8"
Thread Type (Optional)	PT Thread (Scale: MPa, kgf/cm2, PSI) G Thread (Scale: Bar) NPT Thread (Scale: PSI)
Filtering grade (Optional)	40μm or 5μm
Pressure range	Semi-auto and automatic drain: 0.15-0.9 mpa (20-130 PSI) manual drain: 0.05-0.9 mpa (7-130 PSI)
Max.pressure	1.0 MPa (145 PSI)
Proof pressure	1.5 MPa (215 PSI)
Temperature range	-5~70 ℃ (Unfreeze)
Capacity of drain bowl	15 CC
Capacity of oil bowl	25 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	0.5 kg

Details

	1	Filter & Regulator
	2	Bracket
	3	Gasket
	4	Fixed Kit
	5	Screw
	6	Lubricator

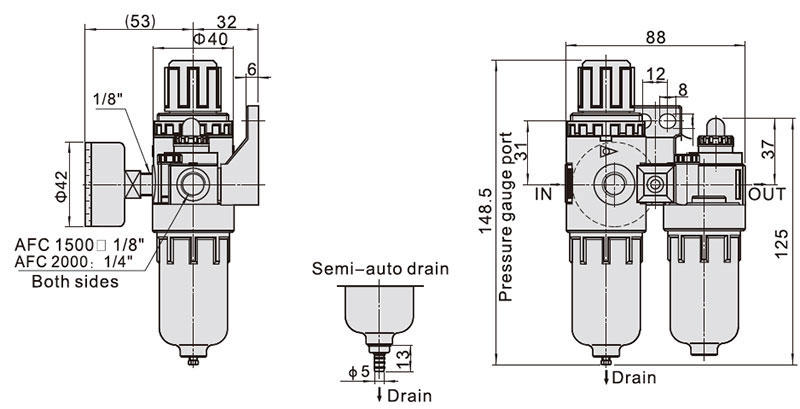

Dimensions (Unit: mm)

Dimensions of 1/8 inch Air Filter Regulator

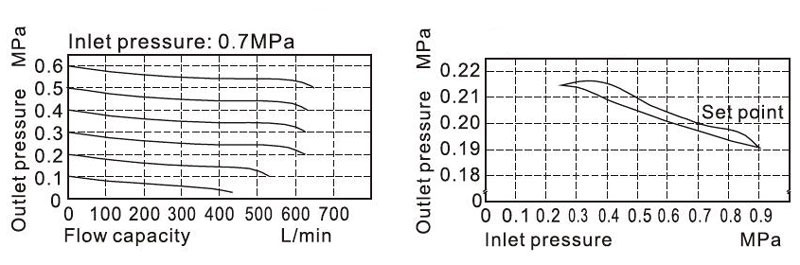

Pressure and Flow Diagram

Pressure and Flow Diagram of 1/8 inch Air Filter Regulator

Tips: Main functions of FRL unit – filter, regulator & lubricator

The compressed air contains a lot of moisture and impurities, it will cause certain damage to the pneumatic system, so it needs to be cleaned before it is connected to the system.
The filter is to filter out the moisture and some impurities in the air. The type of filter element can be selected according to the needs, and the filtration accuracy of the gas can be selected.

The regulator is to adjust the operating pressure of the system to avoid accidents caused by unstable air pressure.
The lubricator is to lubricate the components in the system to extend its service life.
