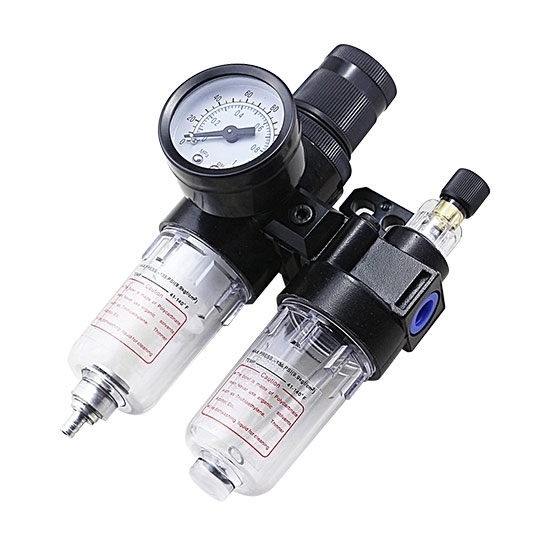

    1/4" FRL Filter Regulator Lubricator

    5 out of 5 based on 1 reviews | Write a review
    $69.99
    1/4 inch FRL filter regulator lubricator combo for sale at economical price, optional PT, G, NPT thread type. This water trap combination unit with pressure gauge and moisture trap can deliver compressed air in pneumatic system.
    SKU: ATO-ACWS-14
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Air FRL unit is a combination of filter, regulator and lubricator. It can filter the water, oil and other impurities in the compressed air, and keep the air source in a constant state to reduce the damage to valves or actuators of the device.

    Features

    • The structure of FRL unit is delicate and compact, which is convenient for installation and application.
    • The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
    • The pressure loss is low and the efficiency of water separating is high.
    • The quantity of oil dripping can be directly observed through transparent check dome.

    Specification

    Model ATO-AFC2000
    Fluid Air
    Pressure Type (Optional) Standard (0.9 MPa), Lower Pressure (0.4 MPa)
    Drain Type (Optional) Semi-auto Drain, Manual Drain
    Port Size 1/4"
    Thread Type (Optional) PT Thread (Scale: MPa, kgf/cm2, PSI)
    G Thread (Scale: Bar)
    NPT Thread (Scale: PSI)
    Filtering grade (Optional) 40μm or 5μm
    Pressure range Semi-auto and automatic drain: 0.15-0.9 mpa (20-130 PSI)
    manual drain: 0.05-0.9 mpa (7-130 PSI)
    Max.pressure 1.0 MPa (145 PSI)
    Proof pressure 1.5 MPa (215 PSI)
    Temperature range -5~70 ℃ (Unfreeze)
    Capacity of drain bowl 15 CC
    Capacity of oil bowl 25 CC
    Recommended lubricant ISO VG 32 or equivalent
    Weight 0.5 kg

    Details

    Details of 1/4 inch Air Filter Regulator 1 Filter & Regulator
    2 Bracket
    3 Gasket
    4 Fixed Kit
    5 Screw
    6 Lubricator

    Dimensions (Unit: mm)

    Dimensions of 1/2 inch Air Filter Regulator

    Pressure and Flow Diagram

    Pressure and Flow Diagram of Air Filter Regulator

    Tips: Composition of pneumatic system

    • Air compressor
    • Main road purification equipment
    • FRL unit, filter, regulator, lubricator
    • Direction control components: electric valve, reversing valve
    • Pneumatic actuator: cylinder, pneumatic actuator
    Existing reviews of 1/4" FRL Filter Regulator Lubricator
    Can I swap the units?
    I want to change the place of the dryer and oil, Is it possible?
    From: Daniel | Date: 29/03/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you can change the place of the dryer and oil, but it might cause unnecessary problems.
