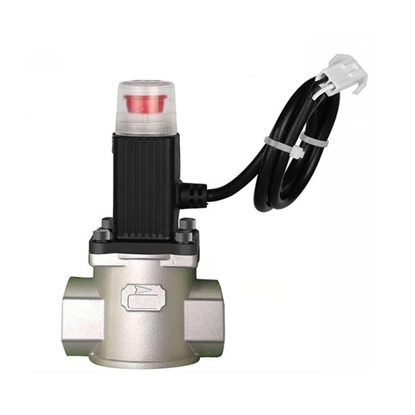

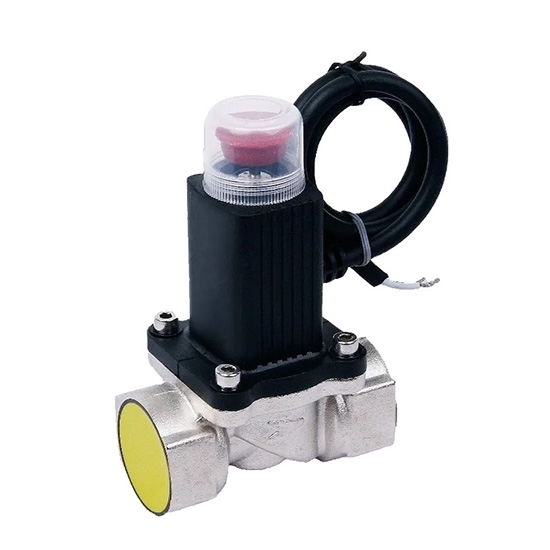

1" Gas Solenoid Valve, LPG/Natural Gas

Note: This solenoid valve cannot be used for drinking water.

The 1" gas solenoid valve is designed specifically for liquefied gas and natural gas, featuring a lightweight aluminum alloy or brass body to ensure durability and corrosion resistance. Emergency gas shut off valve is suitable for a variety of gases such as liquefied petroleum gas and natural gas to meet diverse needs. The gas solenoid valve adopts high-precision control to ensure safe cutoff, avoid gas leakage, and ensure the safety of users.

Specification

• Model: ATO-SR-510-DN25
• Suitable gas types: natural gas, LPG, man-made coal gas and other
• Closing modes: current impulse or manual
• Body: brass/aluminum
• Driving voltage: DC 9-15V
• Sealing material: NBR rubber
• Close time: <1s
• Operation temperature: -10~50℃
• Explosion proof mark: ExmbⅡT4
• Pressure max: 100kPa
• Lead wire: 0.4m
• Connection: G1"
• Turn on: manual
• Valve opening: reset manually
• Valve closing: direct current pulse drive or manually
• Closing time: <0.3s

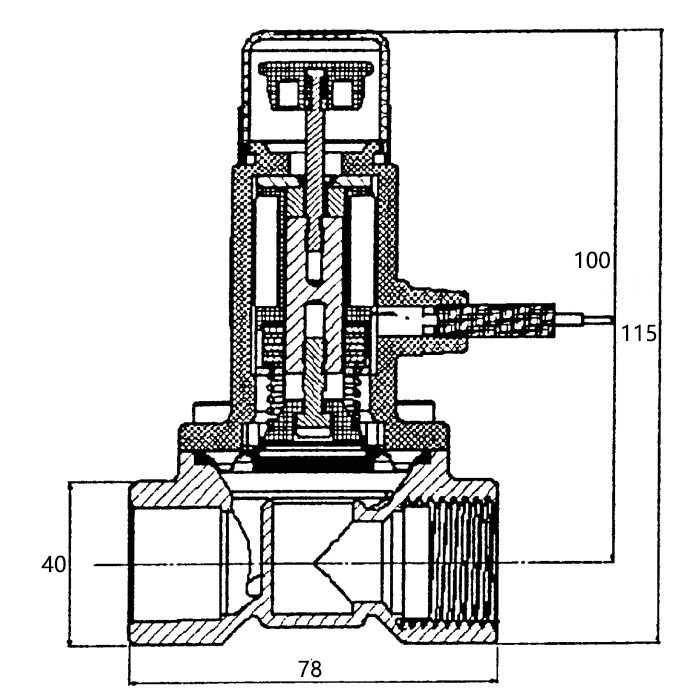

Dimension (mm)

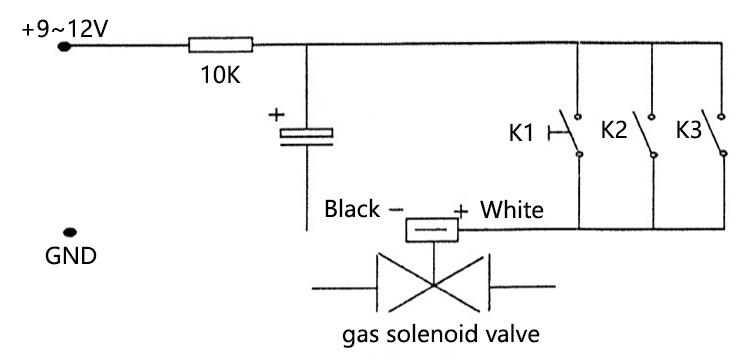

Wiring diagram

K1: manual switch
K2: external impulse switch
K3: power failure switch

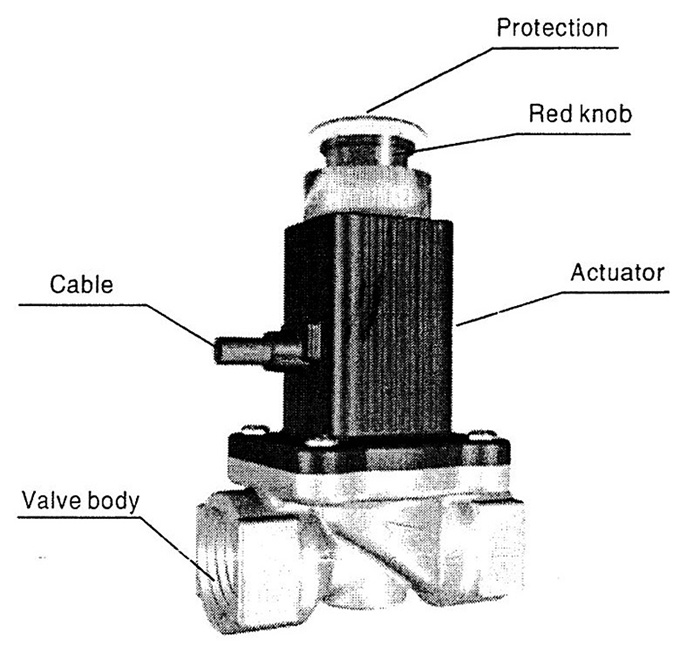

Detail

Tips: Maintenance guide for gas solenoid valves

• Check the appearance of the gas solenoid valve regularly to ensure that there is no obvious damage or corrosion. Watch for gas leaks.
• Keep the valve body and surrounding areas clean, and remove dust and dirt regularly to avoid affecting the normal operation of the valve.
• Check the cables and connecting wires regularly to ensure that there is no wear or looseness, and ensure that the power supply is stable.
• Perform functional tests regularly to ensure that the gas solenoid valve can open and close normally, and check the response time.
• Ensure that the valve working environment is suitable for its design specifications and avoid working under conditions beyond the temperature and pressure range.
• For any questions or failures, it is recommended to contact professionals for inspection and maintenance to ensure safety and efficiency.
