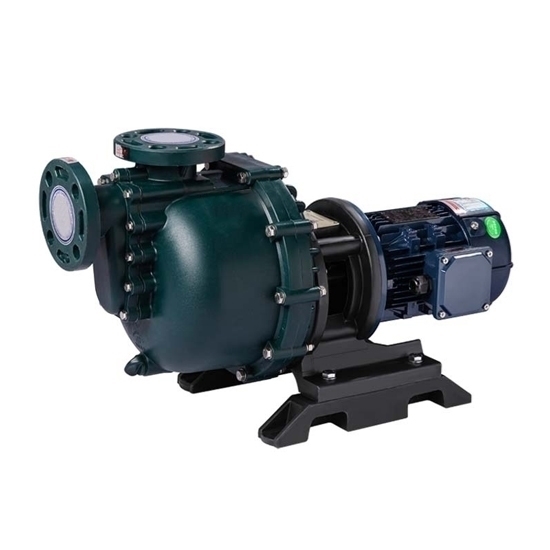

    10 hp Self Priming Centrifugal Pump, 2 Pole

    The 10 hp self-priming pump uses advanced centrifugal technology to provide high efficiency and powerful suction capacity, ensuring optimal fluid transfer in a variety of applications. The reliable self-priming water pump can be used for industrial drainage, high rise water delivery, garden sprinkler, fire fighting, HVAC cooling circulation, etc.
    SKU: ATO-SPB-75102
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a 10 hp self priming centrifugal pump online. The pump body material is available in PVDF and FRPP, which effectively enhances the corrosion resistance and structural strength of the pump. 2 Pole self priming centrifugal pumps operate with minimal vibration and noise, ensuring a quiet working environment. Experience smooth operation without disturbance or interruption.


    • Model: ATO-JKB-75102
    • Power: 10 hp (7.5kW)
    • Inlet: 75mm
    • Outlet: 75mm
    • Max Head: 28m (50Hz), 30m (60Hz)
    • Max Capacity: 960m L/min (50Hz), 940 L/min (60Hz)
    • Pole: 2 Pole
    • Pump Body Material: F-FRPP/P-PVDF
    • Weight: 80kg

    Dimension (unit: mm)

    Self priming pump dimension

    Model A B C D E F G H I L
    ATO-JKB-75102 283.5 335 255 415 113 202 250 250.5 188 840


    Self priming pump curves


    Self priming centrifugal pump installation


    Self-priming pump is a special type of centrifugal pump that has the ability to self-prime and operate normally without the need for liquid filling. Self-priming pumps are widely used in industrial drainage, water supply to high-rise buildings, garden irrigation, boosting fire protection systems, and circulating HVAC refrigeration.

    Self priming pump applications

    Tips: Can sef-piming pump run dry?

    • No, self-priming pumps are designed to handle a certain amount of air or gas in the suction line and can still operate effectively even when there is no liquid present initially or when the liquid level drops below the pump's suction inlet. They are specifically designed to automatically evacuate air from the suction line and create a vacuum, allowing the pump to draw in and move the liquid efficiently.

    • However, it's important to note that while self-priming pumps can handle temporary dry running conditions, prolonged dry running can damage the pump. The presence of liquid helps lubricate and cool the pump's components, so running it without any liquid for an extended period can lead to overheating and premature wear. It's always recommended to ensure that the pump is properly primed and has a sufficient liquid supply to avoid any potential damage.
