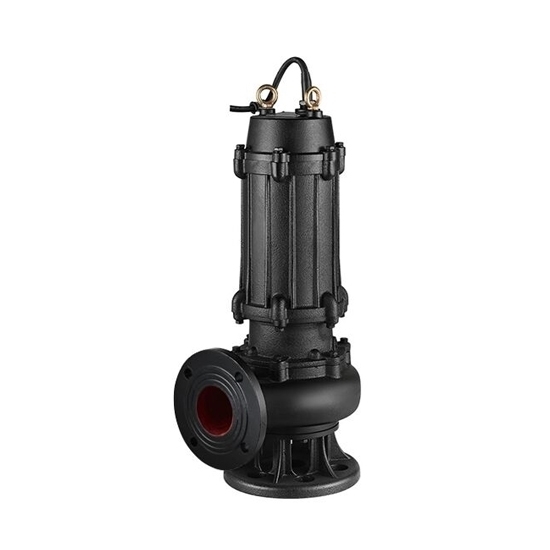

10 HP Submersible Sewage Pump, 3 Phase

High quality 10 hp submersible sewage pump for sale online. Sewage pump with compact structure, large flow, high efficiency, is the best choice for construction engineering.

Features:

• Reasonable design, reasonable matching motor, high efficiency.
• Heavy duty sewage pump with compact structure, small volume, easy to move, easy to install, no need to build pump room.
• Double guide rail automatic coupling installation system, to the submersible sewage pump installation and maintenance has brought great convenience.
• Large flow channel anti-clogging hydraulic parts design, greatly improve the ability of sewage through, can effectively through the sewage pump diameter of 5 times the fiber material and the diameter of about 50% of the industrial sewage pump diameter solid particles.
• Mechanical seal adopts double series seal, material is hard corrosion resistant tungsten carbide, durable, wear-resistant, can make the pump safe continuous operation for more than 8000 hours.

Specification:

• Model: ATO-50WQ15-50-7.5
• Rated Power: 10 hp (7.5 kW)
• Rated Voltage: 380V (Please contact us if you need other voltage)
• Rated Flow: 15 m³/h
• Rated Head: 50m
• Inlet Size: 2 inch
• Caliber: 50 mm
• Underwater Penetration (Max): 30m
• Motor Phase: 3 phase
• Body Material: Cast iron
• Rotate Speed: 2860 r/min
• Outlet Pressure: 0.1 MPa
• Weight: 100 kg

Submersible Sewage Pump Structure:

Tips: What is Automatic Coupling Device?

Sewage pump automatic coupling device is used with sewage pump matching a set of devices, the whole set is mainly composed of submersible pump, automatic coupling device, outlet pipe, automatic coupling device is installed between the submersible pump and sewage outlet pipe; A separation chamber is also installed on the sewage outlet pipe at one end of the automatic coupling device, which can adjust the amount of diverting sewage. The separation chamber is connected with at least one jet stirring outlet pipe, and the water outlet of the jet stirring outlet pipe is downward and the outlet can be rotated.

The sewage pump makes the sewage and sewage in the sewage well fully mixed and suspended, so as to achieve the thorough extraction and discharge of sewage and sewage. Sewage pump automatic coupling type installation can quickly and easily put the electric pump along the sliding guide rail into the sewage medium, pump and base automatic coupling seal.
