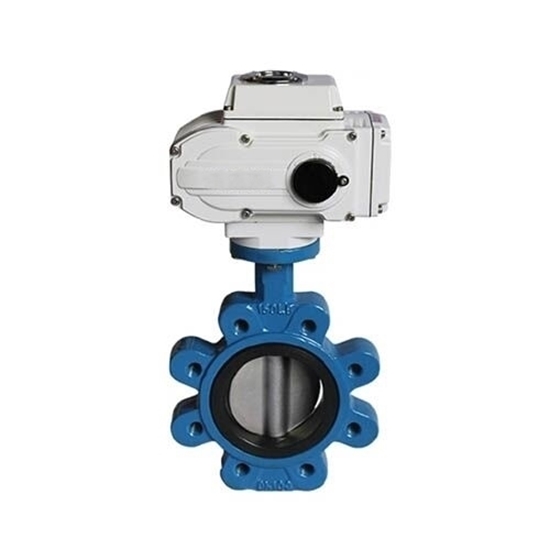

10" Electric Lug Type Butterfly Valve

Write a review

$1,694.62

10 inch (DN250) wafer type butterfly valve come with 60 actuator, compact structure, good performance and easy installation. Optional voltage AC 110V, AC 220V, AC 380V, DC 24V, AC 24V and work at temperature -30°C~60°C. End Connection wafer flange, stem and disc material stainless steel. Control of water, air, gas, oil, liquid, steam.

Power Supply *

SKU: ATO-HK60-DMS250-60

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

10 inch (DN250) lug type butterfly valve equipped with electric actuator, working at -30°C~60°C. A reliable device control water, air, gas these flow.

Electuator Specification

Model	ATO-HK60-DMS250-60
Protection Class	IP65
Ambient Temp.	-30°C~60°C
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage Optional	AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Port Size	10" (DN250, 250mm)
05 Actuator Control Circuit	A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback
Voltage	AC 220V	DC 24V	AC 380V
Torque Output	600Nm	680Nm	600Nm
90° Cycle Time	30S/60S	35S	26S
Working Current	0.6A	0.7A	0.43A
Drive Motor	130W	33W	220W

Body and Valve Specification

Body		Valve components
Corresponding Valve Port Size	10" (DN250, 250mm)	Seating Material	NBR, EPDM, VITON, PTFE
Body Material	Cast iron	Disc Material	Stainless Steel
End Connection	Wafer Flange	Stem Material	Stainless Steel
Operating Pressure	< 1.6MPa	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Structure	Midline Structure/ A-type	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam

Butterfly Construction

Butterfly valve construction

Dimension	Inch	D	D1	D2	L	H	n-φd
DN250	10"	250.5 mm	320 mm	355 mm	60 mm	490 mm	12-M24 mm

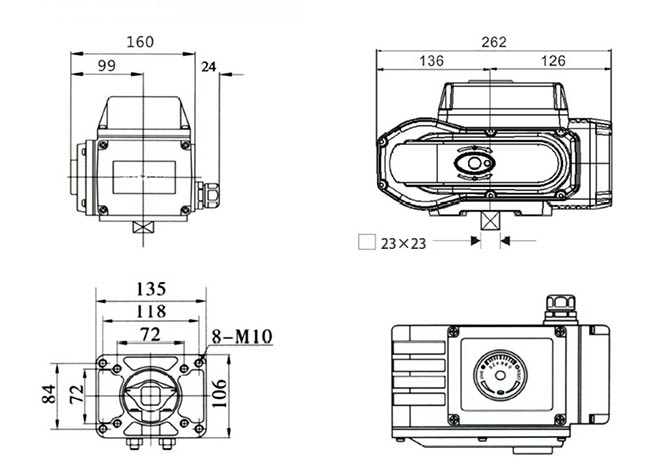

Actuator Dimension (mm)

Actuator 60 size

Features

Remote controlled bf valve switch regulation and MODBUS, PROFIBUS Field Bus.
Body made of hard aluminum alloy, which is treated by hard anodic oxidization and coated by Polyester powder with great corrosion resistance.
Motor fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is F grade which can prevent motor over-heating.
Manual Override energy-saving of wafer type butterfly valve with lug type, used for manual operation when electricity is off. In automatic operation, it can be fixed inside the clip for easy operation.
Wafer butterfly valve indicator assembled on center axis, valve position can be observed. Outside mirror design facilitates position observation and prevents water drops accumulation.
Lug type butterfly valve high sealing performance, standard protection class is IP67.
Mechanical and electronic position limit switches, controlled by cam. Position set easily and accurately without any influence by handle.
Electric actuator valve with lug type, compact structure, miniature size, long service life, good sealing performance, easy maintenance, quick detachable and installation.
Explosion proof construction EXd II BT4.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf valve for home. If you have any questions, please feel free to contact us.

Tips: What structure traits of lug type butterfly valve?

The unique design of three-way eccentricity enables frictionless transmission between the sealing surfaces and prolongs the service life of the valve.
The ingenious wedge-shaped design enables the valve to have an automatic sealing function that gets tighter and tighter, and the sealing surface has compensation and zero leakage.
Small size, light weight, light operation, easy to install.
Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.
The material of replacement parts can be applied to various media, and the lining can be anti-corrosion (lining F46, GXPP, PO, etc.).
