    10 kVA 100 kV AC DC Hipot Tester

    5 out of 5 based on 1 reviews | Write a review
    $7,529.67

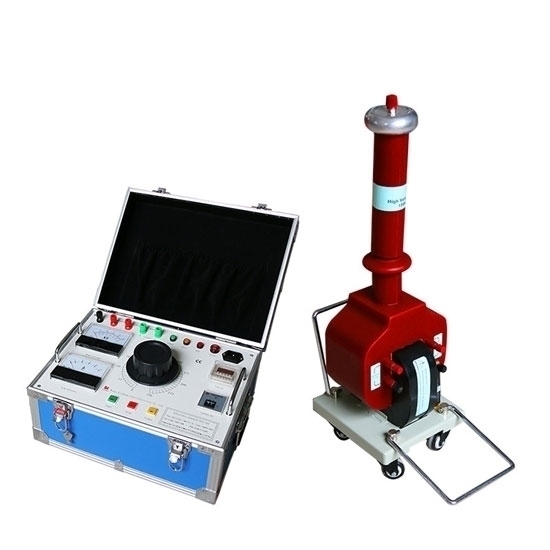

    Best hipot tester for sale, hipot test equipment is composed of dry testing transformer and control box, 10 kVA capacity, 100 kV, 50 Hz or 60 Hz frequency, 1 phase, can be used for AC DC hipot test of cable, box control and desktop control are optional. Other capacity can be customized.
    SKU: ATO-HTGTB-10100
    *
    *
    *
    Delivery date: 6-12 days

    100 kV AC DC hipot tester capacity 10 kVA, current with 100 mA, single phase, digital display control box, manual control, automatic control and electric control can be selected, manufacturer direct sales.

    Note: AC leakage current meter is not provided.

    Specifications

    Model ATO-HTGTB-10100
    Capacity 10 kVA
    Input Voltage 110V/ 120V/ 220V
    Frequency 50Hz/ 60Hz
    Output Voltage 100 kV
    Current 100 mA
    DC Output 140 kV
    Phase 1 Phase
    Weight (Transformer+Control Box) 130 kg
    Cooling Method Dry
    Effeciency 90%
    Impedance Voltage <12%
    Surface Temperature Raising < 55°C
    No Load Current < 4%
    Output Voltage Waveform Sine Wave
    Usage AC DC Hipot Tester
    Warranty 12 Months
    Temperature environment 0~40°C
    Altitude <2000m
    Relative Humidity <85%

    Packing List

    NO. Description Quantity
    1 Hipot Test Set (1 Control Box + 10 kVA Dry Transformer) 1
    2 Power Supply Cable 1
    3 Earth Cable 1
    4 Connecting Line 1
    5 Fuse 3
    6 Rectifying Diode 1
    7 User Manual 1

    Wiring Diagram

    AC hipot test dimension
    DC hipot test

    Tips: The Differences Between AC Hipot Test and DC Hipot Test

    The DC hipot test can effectively find the overall defects such as insulation moisture and dirt, and can find the local defects of the insulation through the relationship between current and leakage current. Since the DC voltage is divided by the insulation resistance, the end insulation defect can be found more effectively than the AC. At the same time, due to DC voltage.
    The insulation does not substantially cause dielectric loss, and therefore, DC hipot test is less destructive to insulation. In addition, since the DC withstand voltage only needs to supply a small leakage current, the required test equipment has a small capacity and is convenient to carry.
    The AC hipot test is performed at 2.5 times or more of the voltage of the device under test, and from the viewpoint of thermal breakdown of the dielectric loss, the weakness of the local free defect and the insulation aging can be effectively found. Since the voltage is divided mainly by the capacitance at the alternating voltage, the insulation defects of the device can be effectively exposed. However, the AC hipot tester is more destructive to insulation than DC, and since the test current is a capacitor current, a large-capacity test equipment is required.

    The video will show you how to connect ATO AC DC Hipot Tester.
