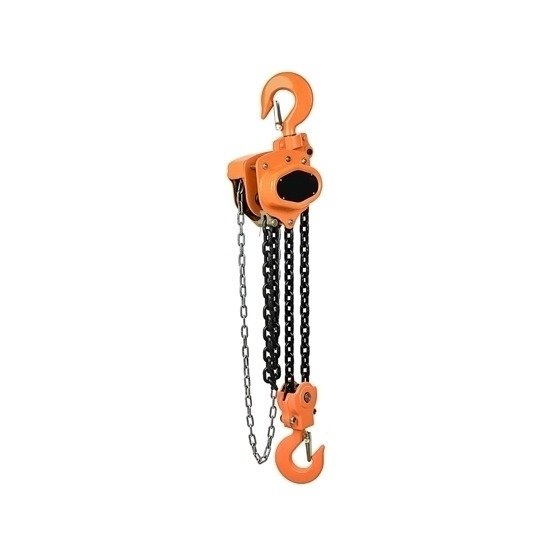

    10 Ton Manual Chain Hoist

    Heavy duty manual chain hoist is designed for reliable and precise lifting, offering a safe and efficient solution for tasks that require controlled lifting and positioning. ATO 10 ton (20000 lbs) hand chain block comes with 4*φ10mm lifting chain, 3m or 6m lifting height available, widely used in construction sites, warehouses, manufacturing plants, and maintenance operations.
    SKU: ATO-MCH-10T
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO manual chain hoist is a simple yet effective lifting device used in in construction sites, workshops, warehouses, and other settings where heavy lifting is required. This hand chain block consists of a sturdy steel housing containing a chain wheel and a load chain. The load chain is equipped with a lifting hook at one end and is manually operated by pulling on the hand chain.


    Model ATO-VT-10T
    Capacity 10 Ton (20000 lbs)
    Lifting Height (Optional) 3m/ 6m
    Experimental Load 12.5KN
    Maximum Hand Pulling Force 380N
    Lifting Chain 4
    Lifting Chain Diameter 10mm
    Net Weight 70kg

    Dimension (Unit: mm)

    10 ton manual chain hoist dimensions

    A B C H
    189 463 57 765


    10 Ton manual chain hoist details

    Tips: How to use a manual hoist?

    Using a manual hoist involves several steps to ensure safe and efficient operation.

    1. Assess the load: Determine the weight and dimensions of the load to ensure it falls within the hoist's capacity. Inspect the load for any potential hazards or obstructions.
    2. Prepare the area: Clear the working area of any obstacles or people to create a safe operating space. Ensure the floor is clean and free from debris that could cause slipping or tripping hazards.
    3. Attach the hoist: Position the hoist directly above the load, ensuring it is securely anchored. Use appropriate rigging equipment, such as hooks or slings, to attach the hoist to the load. Double-check the connections to guarantee they are properly secured.
    4. Operate the hoist: Engage the hoist's lifting mechanism, typically a hand chain or lever. Apply a steady, controlled force to raise or lower the load. Keep your hands on the control and maintain a firm grip while operating.
    5. Monitor the load: Continuously observe the load and surroundings during lifting or lowering. Adjust the hoist's movement as necessary to maintain balance and avoid collisions with obstacles.
    6. Lower the load safely: When lowering the load, release the tension gradually, ensuring a controlled descent. Keep hands clear of any pinch points to prevent injuries.
    7. Secure the load: Once the load is safely on the ground, detach the hoist from the load and secure the load in its designated location.
