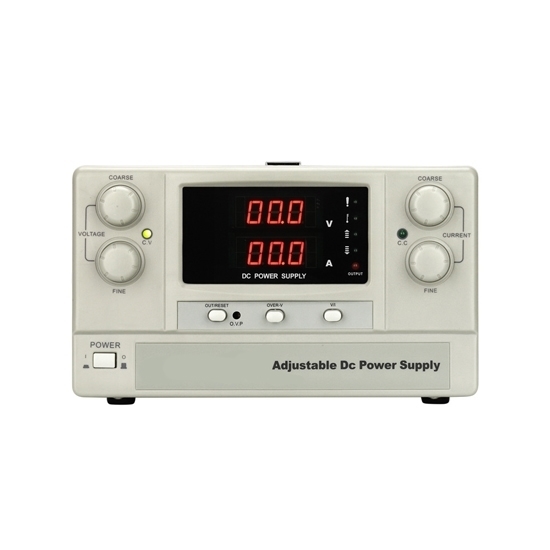

100A 15V 1500W Variable DC Power Supply

$859.29
High efficiency 0 to 100 amp, 0 to 15 volt variable DC power supply is switching mode with 1500W DC output, constant voltage (CV) / constant current (CC) output precision, selectable single phase 110V or 220V±10% AC input, 3 digit LED display. This regulated DC power supply offers both adjustable voltage and current settings, ensuring precise control over the output parameters.
*
SKU: ATO-VDCPS15100K
30-day Returns
Free Shipping
Delivery date: 6-12 days

100A 15V variable DC power supply provides a reliable and adjustable power source for various applications. Whether in educational settings or professional labs, this variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model ATO-JK15100K
Input Voltage Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range 0-15V
Output Current Range 0-100A
Output Power 1500W
Frequency 50Hz/60Hz
Adjustable Mode Pulse Width Modulation (PWM) Type
Transistor Connection Method Full Bridge
Output Type Dual
Display 3 digit
Display Accuracy Output Voltage ±1.5%, Output Current ±2.0%
Efficiency >86%
Load Regulation (CV) Stable Voltage ≤1%, Constant Current ≤2%
Line Regulation (CV) Stable Voltage ≤0.5%
Ripple Voltage ≤3%
Insulation Resistance Input-Output: ≥20MΩ
Input-Chassis: ≥20MΩ
Output-Chassis:≥80MΩ
Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
Input-Chassis: AC1500V, 10mA, 1 minute
Output-Chassis: AC1500V, 10mA, 1 minute
Protection Over Load and Over Voltage Protection
Current Imbalance ≤5% + 0.5A
Operating Ambient -10℃ to + 45℃/ 85%RH
Storage Ambient -10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold 70℃ to 80℃
Mean Time Between Failures ≥50000h
Cooling Duct Internal Cooling Air Duct Forward and Exit
Certification CE, RoSH
Warranty 12 Months
Size 303 (L) x 255 (W) x 155 (H) mm
Weight 8kg


Detail

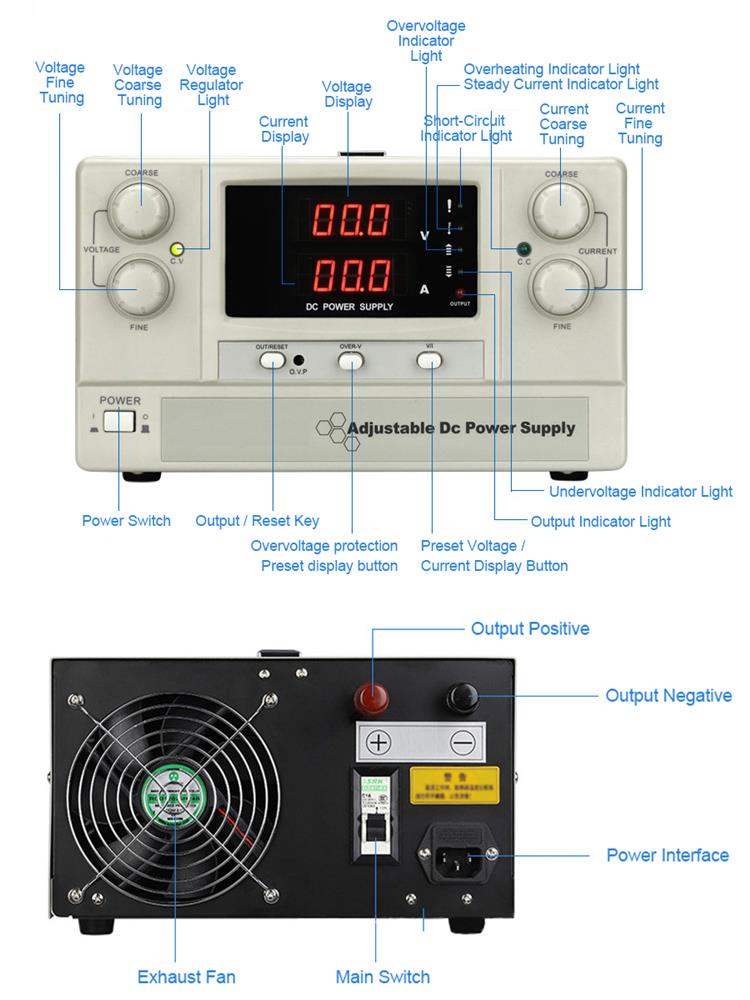

Details of 100A 15V Adjustable DC Power Supply

Tips: What is a variable DC power supply?

A variable DC power supply is an electronic device that provides a controllable and adjustable output voltage for powering electronic circuits and devices. Unlike fixed power supplies, a variable DC power supply allows users to manually adjust the output voltage within a specified range to meet the requirements of different electronic components. It typically consists of a voltage regulator circuit that maintains a stable output voltage, and a control mechanism such as a potentiometer or digital interface for adjusting the voltage. This flexibility is crucial in electronics testing, prototyping, and development, as it enables users to supply the precise voltage needed for their specific applications. Variable DC power supplies find applications in laboratories, workshops, and educational settings where precise and adjustable power sources are essential for electronic experiments and troubleshooting.
