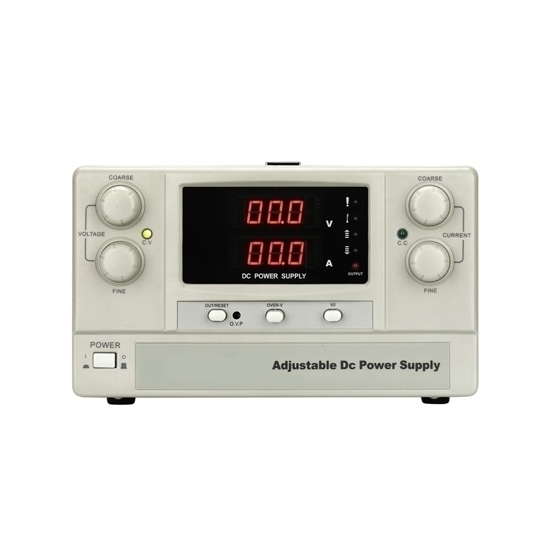

150A 30V 4500W Variable DC Power Supply

$1,524.79
Variable DC power supply employs digital control mechanisms, enabling users to easily and accurately set the desired voltage and amperage levels. Economical price adjustable DC power supply is switching mode with 4500W DC output power, 0 to 150A output current, 0 to 30V output voltage, selectable single phase 110V or 220V±10% AC input, 3 digit LED display. Its regulated nature ensures a stable output, safeguarding connected devices from voltage fluctuations or irregularities.
*
SKU: ATO-VDCPS30150K
30-day Returns
Free Shipping
Delivery date: 6-12 days

150A 30V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model ATO-JK30150K
Input Voltage Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range 0-30V
Output Current Range 0-150A
Output Power 4500W
Frequency 50Hz/60Hz
Adjustable Mode Pulse Width Modulation (PWM) Type
Transistor Connection Method Full Bridge
Output Type Dual
Display 3 digit
Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
Efficiency >86%
Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV) Stable Voltage ≤0.5%
Ripple Voltage ≤1%
Insulation Resistance Input-Output: ≥20MΩ
Input-Chassis: ≥20MΩ
Output-Chassis:≥80MΩ
Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
Input-Chassis: AC1500V, 10mA, 1 minute
Output-Chassis: AC1500V, 10mA, 1 minute
Protection Over Load and Over Voltage Protection
Current Imbalance ≤5% + 0.5A
Operating Ambient -10℃ to + 45℃/ 85%RH
Storage Ambient -20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold 70℃ to 80℃
Mean Time Between Failures ≥50000h
Cooling Duct Internal Cooling Air Duct Forward and Exit
Certification CE, RoSH
Warranty 12 Months
Size 303 (L) x 255 (W) x 155 (H) mm
Weight 13kg


Detail

Details of 150A 30V Adjustable DC Power Supply

Tips: What is the current rating of a standard variable DC power supply?

The current rating of a standard variable DC power supply varies widely depending on its intended application and design. Commonly used in electronics laboratories and testing environments, these power supplies typically offer adjustable current outputs ranging from a few milliamperes (mA) to several amperes (A). Entry-level models may provide currents in the range of 0-5A, while more advanced units can deliver up to 20A or more. The ability to adjust the output current is a key feature, allowing users to customize power delivery based on the specific requirements of their circuits or devices. It's essential to select a power supply with a current rating suitable for the intended application to ensure stable and reliable performance without the risk of overloading connected components.
