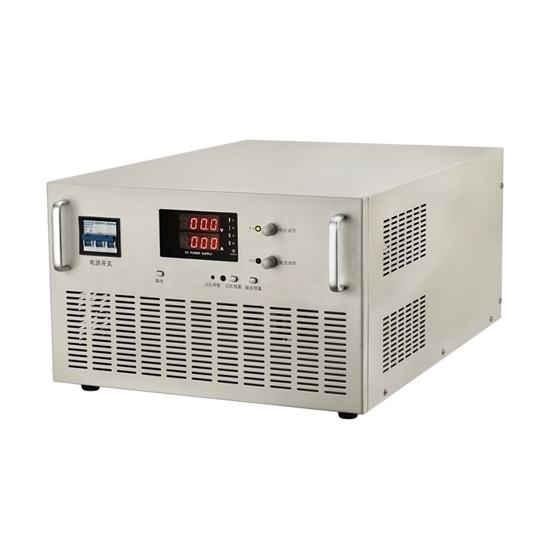

200A 60V 12000W Variable DC Power Supply

5 out of 5 based on 1 reviews | Write a review

$4,291.29

ATO variable DC power supply for sale with output current adjustable from 0 to 200 amp and output voltage ranging from 0 to 60 volt. Boasting a 12000W DC output power capacity, this DC power supply caters to diverse electronic applications. 3 digit LED display provides clear visibility and precise monitoring of voltage and current settings, selectable input voltage of single phase 110V, three phase 220V or 380V±10% AC for compatibility with various power sources.

Input Voltage *

SKU: ATO-VDCPS60200K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

200A 60V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	ATO-JK60200K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-60V
Output Current Range	0-200A
Output Power	12000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE
Warranty	12 Months
Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Details of 200A 60V Adjustable DC Power Supply

Tips: What is the importance of ripple voltage in a variable DC power supply?

Ripple voltage in a variable DC power supply is a crucial parameter that reflects the stability and quality of the output. It represents the AC component superimposed on the DC output, indicating the extent of fluctuations or ripples. Excessive ripple can adversely affect electronic devices by causing instability, noise, and potential damage. Low ripple voltage is essential for applications demanding precise and stable DC power, such as in electronic circuits, sensitive instruments, and communication systems. Minimizing ripple ensures a clean and reliable power source, preventing unwanted interference and signal distortion. Engineers and designers aim to keep ripple voltage within acceptable limits to guarantee the proper functioning and longevity of connected devices, emphasizing the significance of ripple control in variable DC power supplies.

Existing reviews of 200A 60V 12000W Variable DC Power Supply

Recommend this DC power supply

Really satisfied with this 12000W DC power supply. 0-60V and 0-200A adjustable output meets my work needs. The 3-digit display is clear, with stable output, high efficiency and reliable overvoltage and overload protection.

From: Damon | Date: 06/05/2026

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 200A 60V 12000W Variable DC Power Supply
