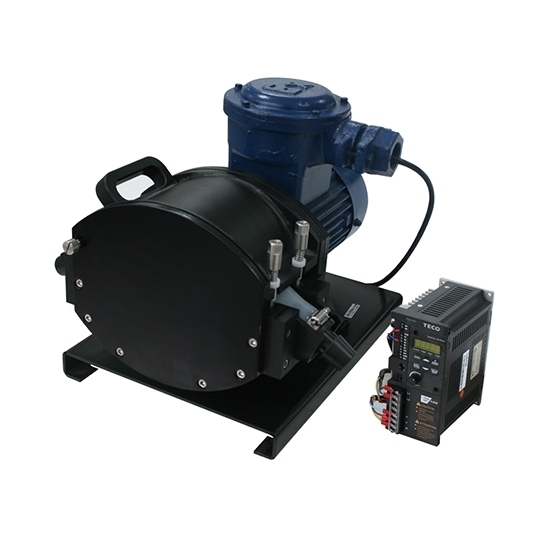

    12500 GPD Explosion-Proof Peristaltic Pump

    High flow industrial peristaltic pump with explosion-proof pump head, competitive price. Flow rate range 640~33000 mL/min (12500 GPD), stepless variable speed 30~350 rpm, optional tubing inner diameter 12.7/25.4/19/9.5mm, motor power 3700W, power supply 3-phase 380V or customized single-phase 220V. High precision peristaltic pump, used for large-volume liquid transmission.
    SKU: ATO-IPP-12500E
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy explosion-proof peristaltic pump from reliable manufacturer at good price. Maximum flow rate 12500 GPD (33000 mL/min), speed range of 30~350 rpm, matched hose inner diameter 12.7/25.4/19/9.5mm. Explosion-proof grade of the peristaltic metering pump is ExdIIBT4, protection IP55, suitable for complex industrial applications.


    Model ATO-FP300S-A3
    Water Flow Rate mL/min 640~33000
    GPD (gallon/day) 240~12500
    Speed Range 30~350 rpm
    Speed Accuracy Error <±3%
    Speed Resolution 0.1Hz (0.77 rpm)
    Power Supply 3-phase 380V, 50Hz/60Hz
    220V customizable
    Rated Power 3700W
    Speed Control VFD stepless speed regulation (standard configuration VFD motor without connecting cable)
    Control Functions Start/stop, forward/reverse, speed regulation, communication, etc.
    Working Environment Ambient temperature 0~40℃, relative humidity <80%
    Explosion-Proof Grade ExdIIBT4
    Protection Grade IP55 (only for motor)
    Weight 49kg


    • Explosion-proof peristaltic pump is driven by AC gear explosion-proof motor, split design, and the driver is separated from the frequency converter.
    • Explosion-proof peristaltic pump must be used in conjunction with the frequency converter. It has the functions such as start/stop, forward/reverse, speed regulation, and communication.
    • Planetary reduction mechanism design. Stepless variable speed, adjustment resolution 0.1Hz.
    • Explosion-proof peristaltic pump has IP55 high protection grade, suitable for complex industrial environment.
    • If the explosion-proof peristaltic pump needs to be placed in a dangerous industrial environment, an explosion-proof converter should be selected.

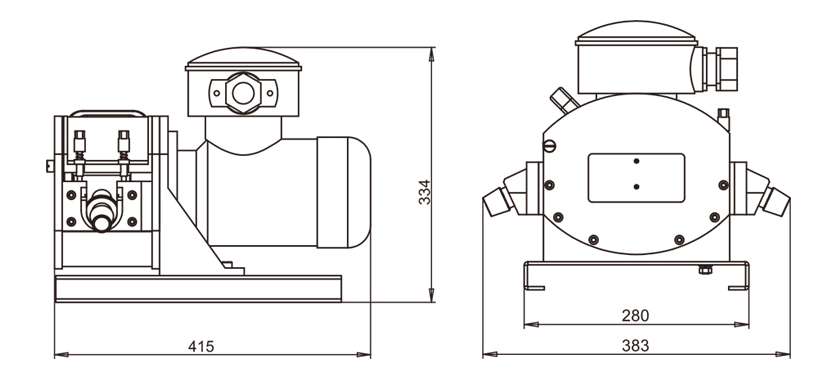

    Explosion-Proof Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 12500 GPD Explosion-Proof Peristaltic Pump

    Explosion-Proof Peristaltic Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    88# 12.7 22.3 4.8
    92# 25.4 35 4.8
    191# 19 28.6 4.8
    193# 9.5 19.1 4.8

    Tips: Pipeline configuration and precautions of explosion-proof peristaltic pump.

    The reason why the explosion-proof peristaltic pump can transport all kinds of liquids and various foods with abrasive, corrosive, and oxygen-sensitive characteristics is mainly because the peristaltic pump has a superior pipeline configuration.

    1. The suction hose of explosion-proof peristaltic pump is 1 to 3 levels larger than the inlet diameter or equal.
    2. In order to facilitate maintenance and use, the suction tubing should be equipped with a shut-off valve and be as close as possible to the pump inlet, with the same diameter as the tubing diameter.
    3. To protect the explosion-proof peristaltic pump from being damaged, a filter is installed immediately downstream of the pump suction pipeline and the shut-off valve, usually a T-type filter.
    4. A safety valve is set between the outlet of explosion-proof peristaltic pump and the first valve.
    5. The outlet of explosion-proof peristaltic pump is equipped with a pressure gauge, which is located on the straight pipe section between the pump and the first valve at the outlet.
    6. On the outlet pipeline of explosion-proof peristaltic pump, set a drain valve between the first valve and the pump.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.
