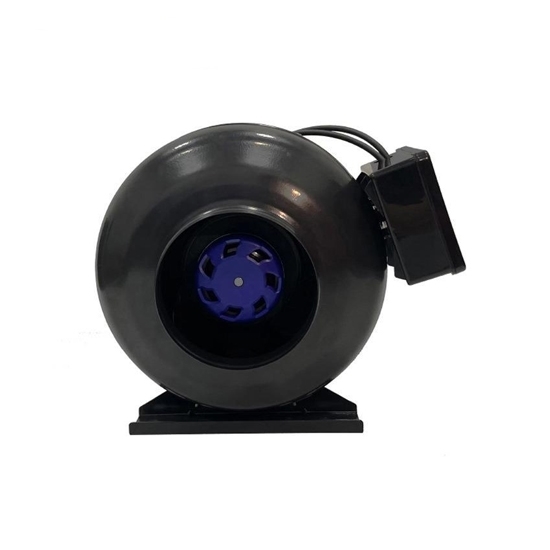

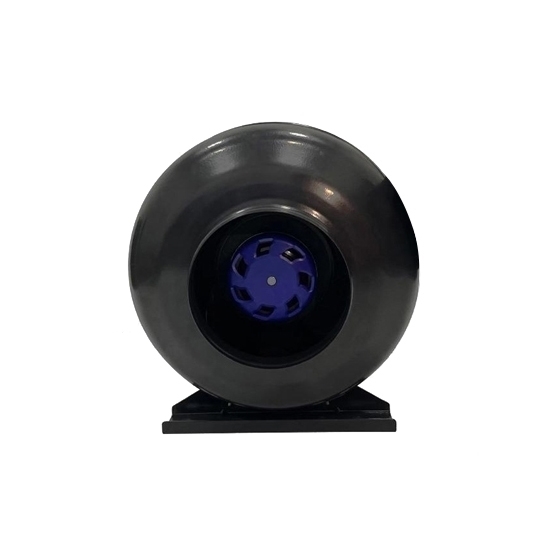

5 inch (125mm) Inline Centrifugal Duct Fan

Favorable price 5 inch (125mm) inline centrifugal duct fan is a ventilation blower commonly used in residential, commercial, and industrial applications. Designed to be installed within ductwork, this in line centrifugal fan efficiently moves air through the system, improving air circulation and quality.

Specification

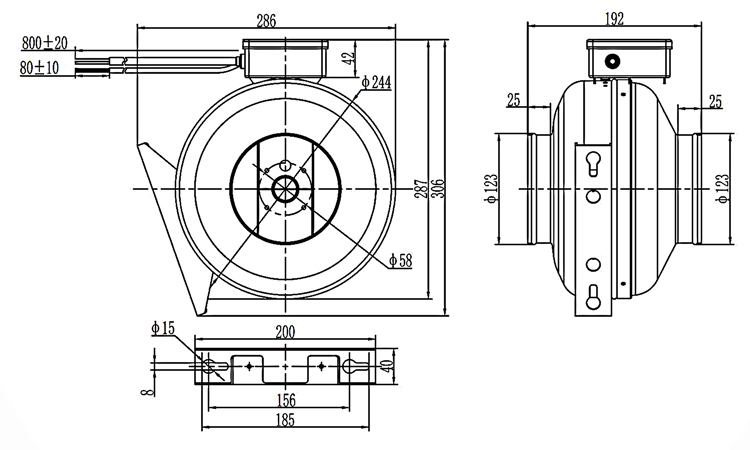

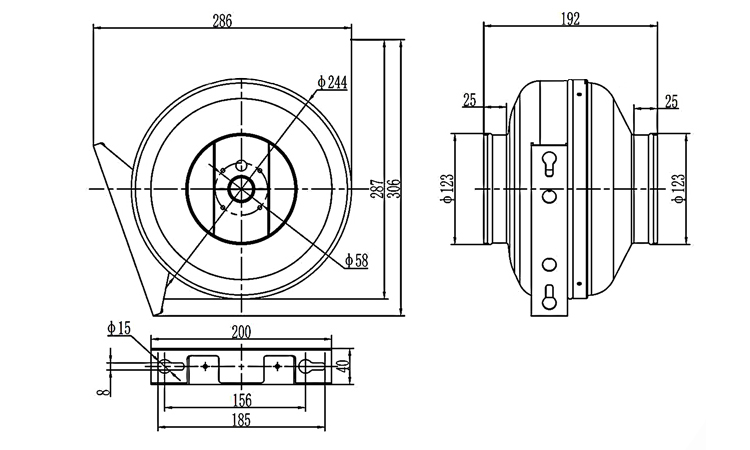

Dimension (Unit: mm)

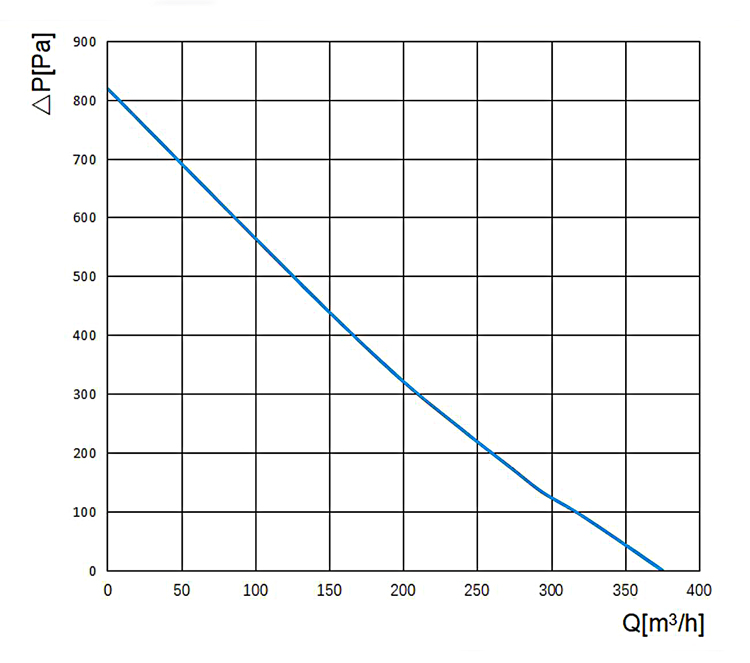

Performance Curve

Wiring

Tips: What size space is an inline centrifugal duct fan suitable for?

An inline centrifugal duct fan is suitable for a range of spaces, from small residential areas to large commercial and industrial environments. The appropriate fan size depends on several factors, including the space’s volume, airflow requirements, and the length and configuration of the ductwork.

For residential applications, inline centrifugal fans can effectively ventilate areas such as bathrooms, kitchens, or small living spaces. In these cases, fans with lower airflow capacities (typically between 100 to 500 CFM) are adequate.

In commercial and industrial settings, where larger volumes and more complex duct systems are involved, higher-capacity fans (ranging from 500 to 3,000 CFM or more) are required to ensure efficient air distribution. Proper sizing is crucial to achieving effective ventilation and maintaining indoor air quality, so it's important to consult with a ventilation expert to match the fan’s specifications with the space’s needs.
