    12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A

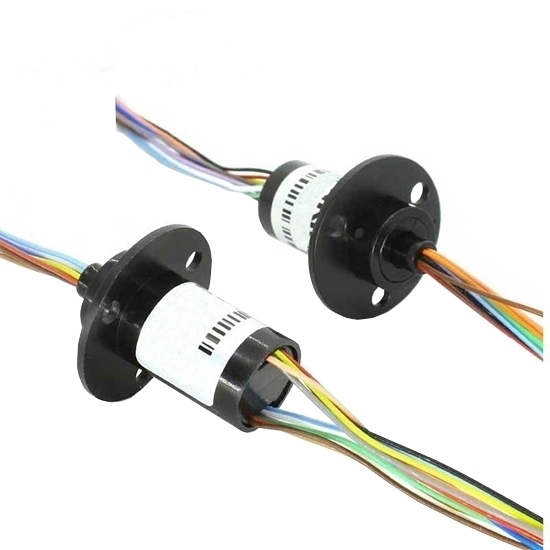

    Picture of 12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A
    Picture of 12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A
    Picture of 12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A

    12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A

    5 out of 5 based on 2 reviews | Write a review
    $72.92
    Miniature slip ring with quite compact size of 12.5mm outer diameter, can transmit current and electrical signal in 360° rotation. Current/signal transmission can select 2~18 circuits, max current can be up to 60A/wire. Signals that can be transmitted include Ethernet, video, USB, HDMI, fiber, RF, etc.
    *
    *
    SKU: ATO-MNTSR-125
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Application: High-speed dome, children intelligent toys, stage lights, drones, robots, stabilizer, smart home appliance…

    Features

    • Compact design, other outer diameters of 6.5mm~30mm can be customized.
    • Adopt advanced processing technology for key materials, military level gold-gold contacts points ensure ultra-low contact resistance and long working life.
    • Low torque, low loss, low electrical noise, maintenance free.

    Specification

    Model ATO-MNTSR-M125
    Outer Diameter 12.5mm
    Rotating Speed 250 rpm
    Working Temp. -30℃~80℃
    Working Humidity 0~85% RH
    Contact Material gold-gold
    Housing Material plastic
    Torque 0.05N.m (+0.01N.m/6 circuits)
    Working Life 10 millions for ref (depends on working conditions)
    Rated Voltage 0~240VAC/VDC
    Lnsulation Resistance ≥300MΩ/300VDC
    Lead Wire Spec. refer to model list
    Lead Wire Length standard 150mm (can be customized)
    Certification CE, RoHS
    Dielectric Strength 300VAC@50Hz,60s
    Electrical Noise <0.01Ω
    IP Grade IP51

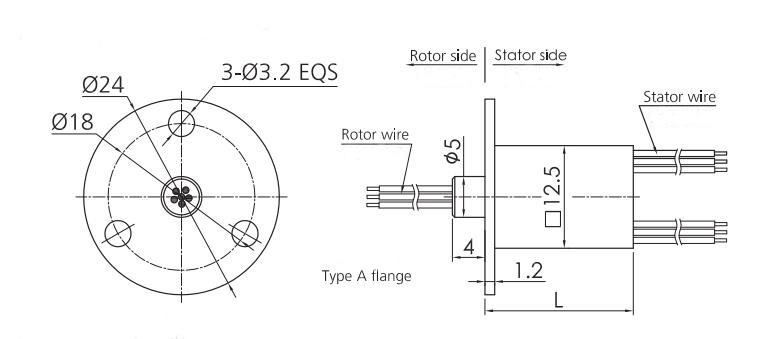

    Dimension Drawing of 12.5mm Miniature Slip Ring (Type A Flange)

    12.5mm Miniature Slip Ring (Type A Flange) Dimension Drawing

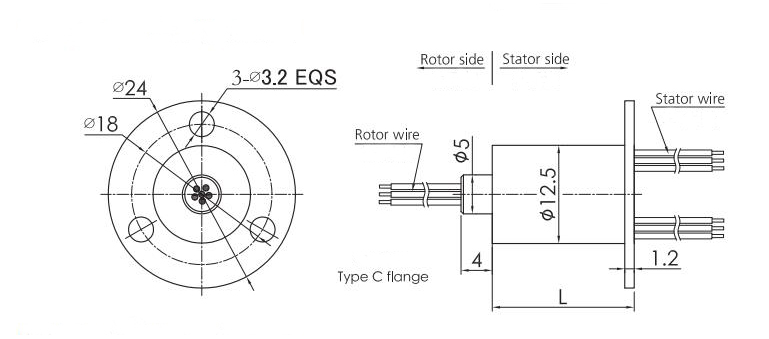

    Dimension Drawing of 12.5mm Miniature Slip Ring (Type C Flange)

    12.5mm Miniature Slip Ring (Type C Flange) Dimension Drawing

    Dimension Drawing of 12.5mm Miniature Slip Ring (No Flange)

    12.5mm Miniature Slip Ring (Without Flange) Dimension Drawing

    Standard Model List

    Model Number of Circuits Wires Max current/wire Lead spec. Length L (mm)
    ATO-MNTSR-M125-06 6 1.5A AWG30#teflon,silver plated 13.5
    ATO-MNTSR-M125-12 12 1.5A AWG30#teflon,silver plated 18.2
    ATO-MNTSR-M125-18 18 1.5A AWG30#teflon,silver plated 23.5
    ATO-MNTSR-M125-0205 2 5A AWG22#teflon,silver plated 13.5
    ATO-MNTSR-M125-0305 3 5A AWG22#teflon,silver plated 18.2
    ATO-MNTSR-M125-0405 4 5A AWG22#teflon,silver plated 18.2

    Color Code of Lead Wire

    ring # 1 2 3 4 5 6 7 8 9 10 11 12
    color BLK BRN RED ORG YEL GRN BLU PUR GRY WHT PINK LGT BLU
    ring # 13 14 15 16 17 18 19 20 21 22 23 24
    color WHT/BLK WHT/BRN WHT/RED WHT/ORG WHT/YEL WHT/GRN WHT/BLU WHT/PUR WHT/GRY BLK/RED BLK/BRN Transparent

    Tips: Miniature Slip Ring Installation

    1. Place the cap of the miniature slip ring on the bushing of the instrument to be installed.
    2. Fix the miniature slip ring rotor part. The miniature slip ring has very low torque, so the rotor does not need to be fixed. Just wire the wires.
    3. Fix the miniature slip ring stator part. Tighten the screws on the flange of the slip ring so that the cap of the slip ring is attached to the device and remains fixed at all times.

    Miniature Slip Ring Installation Diagram

    Existing reviews of 12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A
    What’s the diameter of this one?
    What’s the diameter of this one? Additionally, could you please make sure that there is no resistance change during the operation? Because we work on data acquisition from force sensors, so slight change in the resistance might tamper our data.
    From: HIghtower | Date: 08/01/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The outer diameter of this slip ring is 42mm.
    2. Contact resistance change value: static <0.005mΩ, dynamic <0.010mΩ
    High cost performance slip ring
    Outer diameter of the slip ring is very suitable. It is installed on a rotating LED display, conductive effect is very good. There is no flashing or poor contact phenomenon after a long time of operation. The extra wires can power the supporting equipment. High cost performance.
    From: Mark | Date: 20/04/2020
    Was this review helpful? Yes No (0/0)
