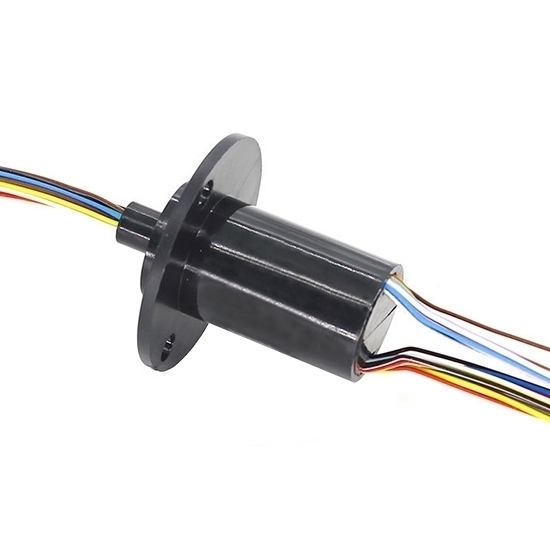

    Miniature Slip Ring Connector, 22mm, 2-36 Wires, 2A/5A/10A/30A

    $69.23
    The miniature slip ring connector is a capsule design with an outer diameter of 22mm. The slip ring length are available in 19, 26, 33, 40, 57.3mm. The number of circuits can select 2-36 wires in standard models. The mounting methods are A-type flange or U-type flange. The electric miniature slip ring are small in size and compact in structure, and can transmit gas, liquid and other medium as well as signals such as USB, optical fiber and Ethernet at 360° rotation.
    SKU: ATO-MNTSR-220
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The miniature slip ring connector specifications are customizable for circuit wires quantities, outer diameter size, current voltage, rotating speed, signal combination, gas-electric-fluid combination, etc.

    Specification

    Model ATO-MNTSR-M220
    Outer Diameter 22mm
    Rotating Speed 150 rpm
    Working Temp. -30℃~80℃
    Working Humidity 0~85% RH
    Contact Material gold-gold
    Housing Material plastic
    Torque 0.05N.m (+0.01N.m/6 circuits)
    Working Life 10 millions for ref (depends on working conditions)
    Rated Voltage 0~240VAC/VDC
    Lnsulation Resistance ≥300MΩ/300VDC
    Lead Wire Spec. refer to model list
    Lead Wire Length standard 150mm (can be customized)
    Certification CE, RoHS
    Dielectric Strength 300VAC@50Hz,60s
    Electrical Noise <0.01Ω
    IP Grade IP51

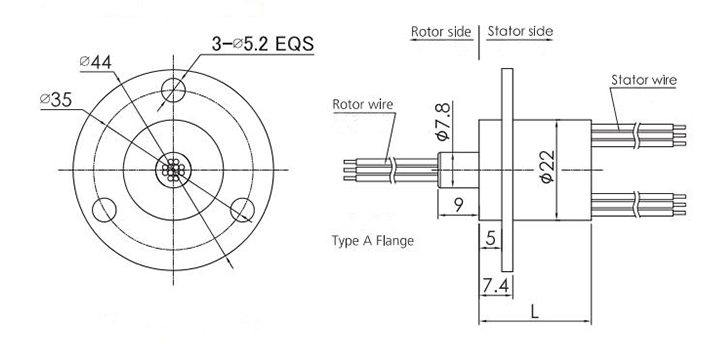

    22mm Miniature Slip Ring Connector (Type A Flange) Dimension Drawing

    22mm Miniature Slip Ring Connector (Type A Flange) Dimension Drawing

    22mm Miniature Slip Ring Connector (Without Flange) Dimension Drawing

    22mm Miniature Slip Ring Connector (Without Flange) Dimension Drawing

    Standard Model List

    Model Circuits Wires no. Max current/wire Lead spec. Length L (mm)
    ATO-MNTSR-M220-06 6 2A AWG26#teflon, silver plated 19
    ATO-MNTSR-M220-12 12 2A AWG26#teflon, silver plated 26
    ATO-MNTSR-M220-18 18 2A AWG26#teflon, silver plated 33
    ATO-MNTSR-M220-24 24 2A AWG26#teflon, silver plated 40
    ATO-MNTSR-M220-36 36 2A AWG26#teflon, silver plated 57.3
    ATO-MNTSR-M220-0605 6 5A AWG22#teflon, silver plated 40
    ATO-MNTSR-M220-0805 8 5A AWG22#teflon, silver plated 140
    ATO-MNTSR-M220-1205 12 5A AWG22#teflon, silver plated 40
    ATO-MNTSR-M220-0210 2 10A AWG17#teflon, silver plated 26
    ATO-MNTSR-M220-0310 3 10A AWG17#teflon, silver plated 33
    ATO-MNTSR-M220-0410 4 10A AWG17#teflon, silver plated 40
    ATO-MNTSR-M220-0230 2 30A AWG12#teflon, silver plated 40
    ATO-MNTSR-M220-0330 3 30A AWG12#teflon, silver plated 47
    ATO-MNTSR-M220-0205-12S 2circuits@5A+12circuits signal 5A AWG22),signal AWG26 40
    ATO-MNTSR-M220-0305-12S 3circuits@5A+12circuits signal 5A AWG22 ,signal AWG26 40
    ATO-MNTSR-M220-0605-06S 6circuits@5A+6circuits signal 5A AWG22 ,signal AWG26 40
    ATO-MNTSR-M220-0210-12S 2circuits@10A+12circuits signal 10A AWG17 ,signal AWG26 40
    ATO-MNTSR-M220-0310-06S 3circuits@10A+6circuits signal 10A AWG17 ,signal AWG26 40
    ATO-MNTSR-M220-0320-04S 3circuits@20A+4circuits signal 20A AWG14 ,signal AWG26 40
    ATO-MNTSR-M220-0410-04S 4circuits@10A+4circuits signal 10A AWG17 ,signal AWG26 40

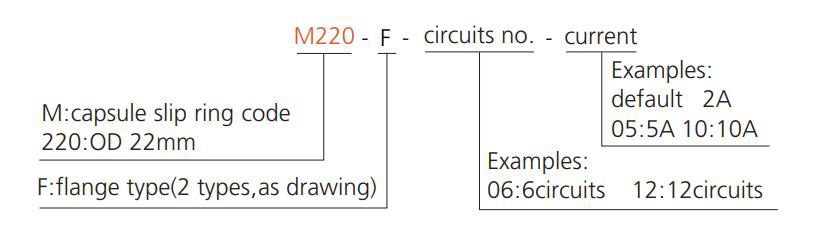

    22mm Miniature Slip Ring Connector Model Description

    22mm Miniature Slip Ring Connector Model Description

    Color Code of Lead Wire

    ring # 1 2 3 4 5 6 7 8 9 10 11 12
    color BLK BRN RED ORG YEL GRN BLU PUR GRY WHT PINK LGT BLU
    ring # 13 14 15 16 17 18 19 20 21 22 23 24
    color WHT/BLK WHT/BRN WHT/RED WHT/ORG WHT/YEL WHT/GRN WHT/BLU WHT/PUR WHT/GRY BLK/RED BLK/BRN Transparent

    Miniature Slip Ring Connector Installation Diagram

    Miniature Slip Ring Connector Installation Diagram

    Tips: Precautions in the use of slip rings

    • When using an electrical slip ring, follow our installation guidelines to properly install the slip ring and avoid exceeding the maximum voltage and current that the slip ring can withstand during use.
    • Avoid using the slip ring in high temperature and low temperature for a long time. Normally, the slip ring should work at -30℃ to 80℃. If it exceeds this range, the service life of slip rings will drop rapidly, and even result in serious damage.
    • Place the slip ring in a place with dry, non-corrosive gas, no strong acid and no strong alkali corrosion to avoid rusting of metal parts and reducing the insulation performance of electrical components.
    • Adjust the contact between the slip ring brush wire and ring groove. Preferably, press against the brush wire on the ring groove without affecting slip ring rotation. If the pressure is too small, it will lead to virtual contact and insufficient pressure. If the pressure is too large, the friction moment and wear of contact portion will be increased, then shorten service life of the slip ring.
    • The slip ring cannot withstand external gravitational impact, otherwise it will deform the slip ring and affect its internal structure.
    • When installing a slip ring, a reasonable radial clearance has a great influence on the life of electric slip ring. If radial clearance of the slip ring increases, the load zone in the slip ring will decrease and the maximum rolling element load will increase, thereby reducing the slip ring life.
