    Circular Connector, 2/3/4/5/6/7/8 Pin, M12

    $26.51
    Circular connector is used for connecting component & cable, cable & cable, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6/7/8 pin, female/male plug & socket to select.
    SKU: ATO-CIRC-XS12
    *
    *
    Free shipping
    Delivery date: 6-12 days

    Circular connector has 2/3/4/5/6/7/8 pin to select.

    Specification:

    Model ATO-CIRC-XS12
    Weight 0.5kg
    Coupling mode Push-pull
    Shell material Zinc base alloys with nickel plate
    Insert material Bakelite
    Contact material Copper (silver plating or gold plating)
    Termination Solder
    Mating cycle 500 times
    Temperature range -20~+85℃
    Cable diameter ≤Φ7.5mm~≤Φ8.3mm
    Protection class IP65

    Technology parameter:

    Number of pins 2 3 4 5 6 7 8
    Rated current/voltage 5A-200V 5A-200V 5A-125V 5A-125V 5A-125V 5A-125V 5A-125V
    Operating voltage AC 250V AC 250V AC 250V AC 250V AC 250V AC 250V AC 250V
    Withstanding voltage (in 1 minute) AC 2500V AC 2500V AC 2500V AC 2500V AC 2500V AC 2500V AC 2500V
    Insulation resistance at DC 500V (MΩ) 3000 3000 3000 3000 3000 3000 3000
    Contact resistance at 1A (MΩ) 10 10 10 10 10 10 10
    Solder cup diameter Ф (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9
    Pin diameter Ф (mm) 1 1 1 1 1 1 1

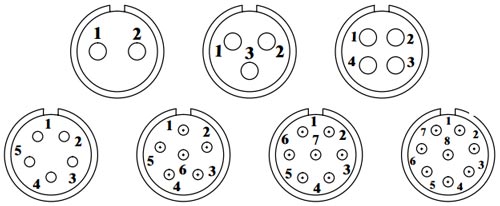

    Pin assignments:
    Circular connector 2 to 8 pin m12 pin assignments
    Dimensional drawing:

    Circular connector 2 to 8 pin m12 dimensional drawing
    Tips: Contact of circular connector
    Contact is the core part for achieving the function of electric connection. Generally, male contact and female contact (contact pin and socket) constitute contact pair. Electric connection is achieved through the connection of male contact and female contact.
    Contact is the core part for achieving the function of electric connection. Generally, male contact and female contact (contact pin and socket) constitute contact pair. Electric connection is achieved through the connection of male contact and female contact.
    Male contact is generally made of copper. Its front end is the part achieving the effective contact of contact pin and socket. Its rear end is used to connect to wire and PCB board, also known as termination parts.
    Female contact (socket) is the critical part of contact pair. It contacts with male contact closely depending on the elastic deformation in the connection of elastic structure and contact pin. Contact is divided into non-removable contact and dismountable contact by whether it can be removed from insulating mounting plate.
