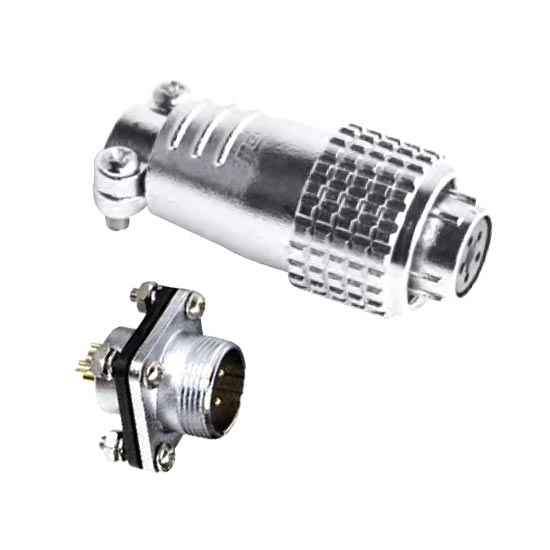

Circular Connector, 2/3/4/5/6/7 Pin, M14

5 out of 5 based on 1 reviews | Write a review

$50.79

Circular connector is used for connecting component and cable, cable and cable. It is a set of one plug and one socket, has simple and firm locking mechanism, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6/7 pin to select.

Item *
Number of Pins *

SKU: ATO-CIRCN-P12

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Relative Video

Circular connector has 2/3/4/5/6/7 pin to select.

Specification:

Model	ATO-CIRC-P12
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with chromeplate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ8mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7
Rated current/voltage	5A-125V	5A-125V	5A-125V	5A-125V	5A-125V	5A-125V
Operating voltage	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V
Insulation resistance at DC 500V (MΩ)	1000	1000	1000	1000	1000	1000
Contact resistance at 1A (MΩ)	10	10	10	10	10	10
Solder cup diameter Ф (mm)	0.9	0.9	0.9	0.9	0.9	0.9
Pin diameter Ф (mm)	1	1	1	1	1	1

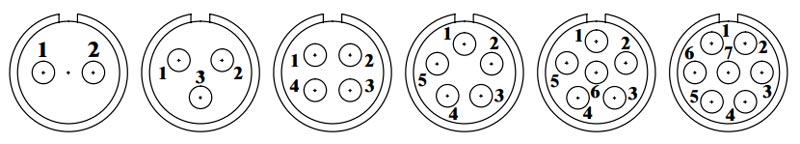

Pin assignments:

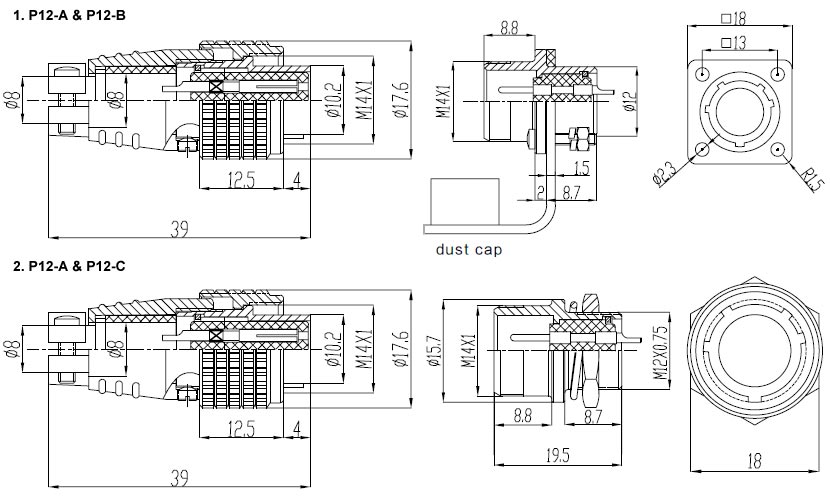

Dimensional drawing (unit: mm):
Circular connector 2 to 7 pin m14 dimensional drawing
Note: Dust cap is not in the packing list.
Tips: Shell of circular connector
The shell of circular connector consists of joint, shell, locking mechanism and rear cover, and is used to provide support and mechanical protection for built-in insulating mounting plate and contact pins. On the structures of plug or socket there are many locating keys and grooves that are used to provide accurate location when plug and socket are connected. Most of circular connectors have locking mechanisms, which provide connection and locking functions for the connection of plug and socket. Meanwhile, socket (fixed circular connector) also provides fixed device to fix circular connector onto equipment. Shell is made of aluminum, copper and stainless steel. The proportion and performance of materials are subject to different use environments and occasions. The space flight and aviation industry needs light electrical connector, so its shell is generally made of workable and light aluminum material.

In the video, ATO will take 5 pin M16 circular connector for circular connector assembly instructions.

Existing reviews of Circular Connector, 2/3/4/5/6/7 Pin, M14

Excellent performance

This is really well made! I bought this to replace the connector in a winch remote, it is far better than the original. Locks in easy, seals are good, solder in connectors, really nice design. The cord seal has a very wide range of cable compatibility also, it will clamp down really small.

From: zly | Date: 20/04/2022
