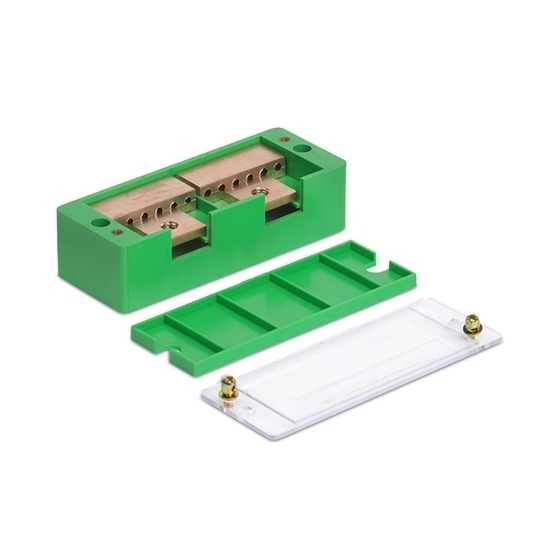

1 in 4/6/10/12 out Terminal Junction Box

Recommended 1 in 4/6/10/12 out terminal junction box is suitable for a wide range of wire and cable connections. This wiring terminal box with excellent electrical conductivity and high tensile strength, ideal for use in household appliances, electrical industries, distribution cabinets, distribution boxes, mechanical equipment factories, shipyards, and more.

Specifications

• Model: ATO-FJ6
• Main Line Range: 4~35mm²
• Outlet Range: 0.75~10mm²
• Type: 1 in 4/6/10/12 out (Optional)
• Interface Form: Directly Plug
• Application: Communication Cable
• Insulation Voltage: 660V 50Hz/60Hz
• Insulation Resistance: 40MΩ
• Shell Material: Polycarbonate
• Conductor Material: Brass
• Working Temperature: -40~120℃

Features

• The wiring terminal box and junction box have excellent electrical conductivity and high tensile strength.
• It has good safety protection performance, good insulation, anti-aging and high temperature resistance.
• This terminal junction box has two independent copper parts built in, with a gap design in the middle, making it safe and reliable.
• The lift-type design of the large cable entry hole allows direct access to thick cables without additional assistance.

Dimensions (Unit: mm)

Applications

This terminal junction box is suitable for installation in various households and industrial places, such as: household appliances, electrical industry, distribution cabinets and distribution boxes, machinery equipment factories, shipyards, etc.

Tips: What is a terminal junction box?

A terminal junction box is a fundamental element in electrical engineering and installations, serving as a pivotal component for the secure and organized connection, termination, and protection of electrical wires and cables. These boxes are typically constructed from robust materials such as metal or high-grade plastic to withstand environmental conditions and physical stress.

The primary purpose of a terminal junction box is to create a centralized and safe point where electrical connections are made. Within this enclosure, wires or cables can be meticulously spliced, connected, or terminated. These boxes play a crucial role in preventing accidental contact with live wires, safeguarding against dust, moisture, or other external factors that could compromise the integrity of electrical connections. Moreover, they facilitate efficient maintenance and troubleshooting of electrical circuits.

In practice, junction boxes are utilized in a diverse range of applications, from residential electrical wiring systems to complex industrial setups. They not only enhance the safety of electrical installations but also ensure their reliability and longevity, making them indispensable components in electrical engineering and infrastructure.
