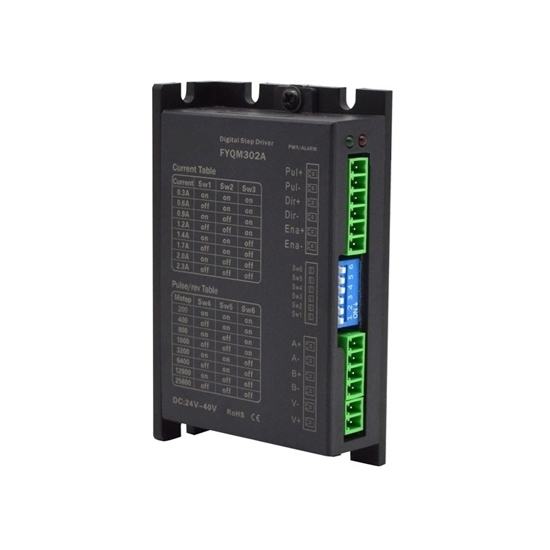

    Digital Stepper Motor Driver, 2 Phase, DC 18V ~ 36V

    $59.37
    Digital stepper driver powered by DC 18V ~ 36V power supply, adjustable drive current from 0.3A to 2.3A, capable of driving Nema 8, 11, 14, 17 hybrid 2 phase stepper motors. This stepper motor controller can realize precise position control even without a feedback system.
    SKU: ATO-STEP-M302A
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Low price micro digital stepper motor driver for sale. It offers adjustable current control and multiple step resolutions, allowing the hybrid bipolar stepper motor to be driven with simple step and direction inputs.

    Features

    • Digital stepper motor driver is high performance, low price, low noise and good stability.
    • Optically isolated signal input.
    • Continuously adjustable drive current from 0.3 ~ 2.3A.
    • When the pulse stops exceeds 100ms, the coil current is automatically halved.
    • Low repair rate and high reliability.
    • Average current control, 2 phase sinusoidal current drive output.
    • Suitable for two phase Nema 8, Nema 11, Nema 14, Nema 17 stepper motor.

    Specification

    Model ATO-FYQM302A
    Matched Motor Nema 17 2 Phase Stepper Motor
    Voltage DC 18V ~ 36V
    Drive Current 0.3A ~ 2.3A 8 Channels
    Microstepping Setting 25600 steps/rev  16 Channels
    Hightest  Pulse Frequency 100Kpps
    Certification CE, FCC, RoHS
    Dimensions 96 x 60.5 x 24.5mm
    Weight 0.5kg

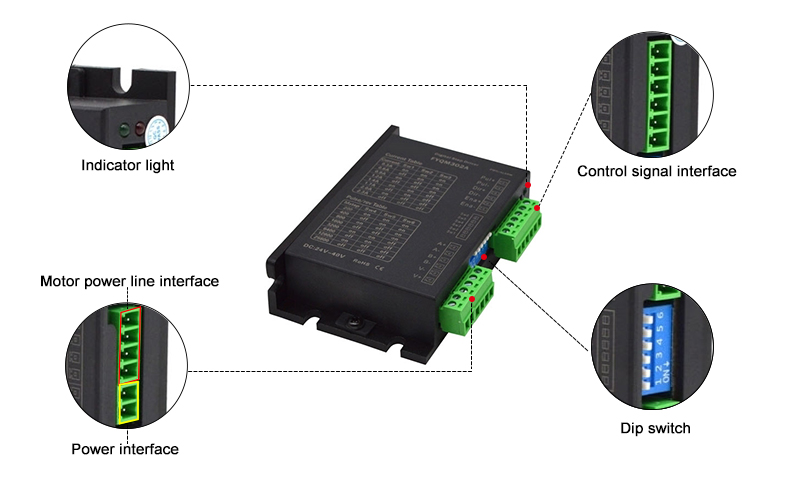

    Function Description
    Functions Operation Instructions
    PWR Power Indicating Lamp When the driver is powered on, the green light is always on.
    ALARM Overcurrent/Undervoltage Indicator When the overvoltage and overcurrent faults occur, the red light is always on.
    PUL+ Positive End of Control Pulse Signal Connect to signal power,+5V to +24V can be driven.
    PUL- Negative End of Control Pulse Signal The falling edge is valid, and the motor takes one step whenever the pulse changes from high to low. Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us.
    DIR+ Positive End of Directional Signal Connect to signal power,+5V to +24V can be driven.
    DIR- Negative End of Directional Signal Used to change the direction of the motor.Input resistance 220Ω. Requirements: low level 0 to 0.5V, high level 4 to 5V, Pulse charge >2.5us.
    ENA+ Positive End of Enabling Signal Connect to signal power,+5V to +24V can be driven.
    ENA- Negative End of Enabling Signal When it is valid (low level), the motor coil current is turned off, the driver stops working, and the motor is in a free state.

    Operating Current Setting

    Peak Current SW1 SW2 SW3
    0.3A on on on
    0.6A off on on
    0.9A on off on
    1.2A off off on
    1.4A on on off
    1.7A off on off
    2.0A on off off
    2.3A off off off

    Microstep Segmentation Setting

    Pulse/Revo SW4 SW5 SW6
    200 on on on
    400 off on on
    800 on off on
    1600 off off on
    3200 on on off
    6400 off on off
    12800 on off off
    25600 off off off

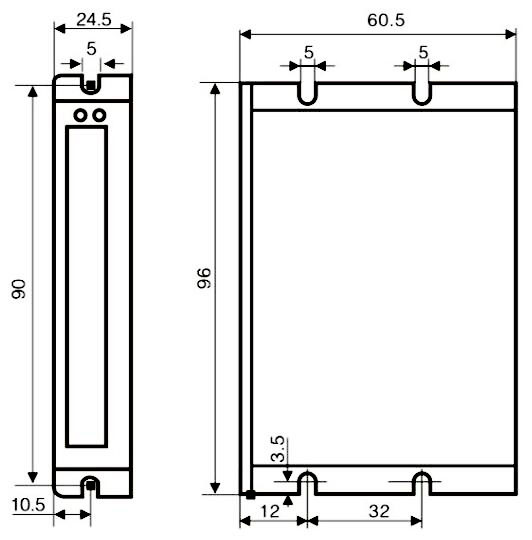

    Dimensions (Unit: mm)

    Dimensions of 2 Phase DC 18V-36V Digital Stepper Motor Driver

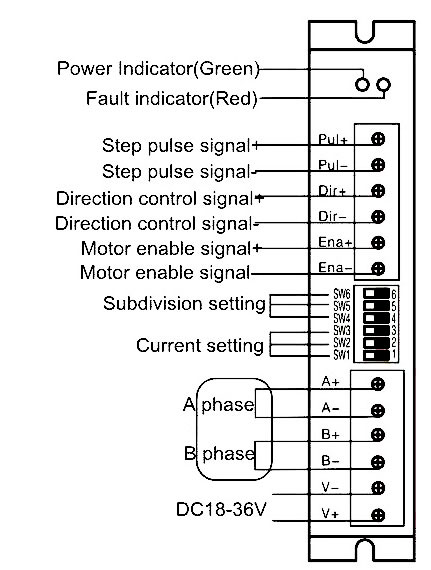

    Wiring Diagram

    Wiring Diagram of 2 Phase DC 18V-36V Digital Stepper Motor Driver

    Tips: Functions of stepper motor driver

    The digital stepper motor driver is an actuator that converts electrical pulses into angular displacement. In the use of the motor, the driver receives a pulse signal, and drives the motor to rotate a fixed angle in the set direction, and rotate step by step at a fixed angle. The stepper motor driver can control the angular displacement by controlling the number of pulses, and can also control the speed and acceleration of the motor's rotation by controlling the pulse frequency. Through these two methods, the positioning control and speed control are realized respectively. The entire stepper motor drive system is composed of two parts: a motor and a driver. While the performance of the drive system depends on the performance of the motor itself, it also depends on the pros and cons of the drive stage.
