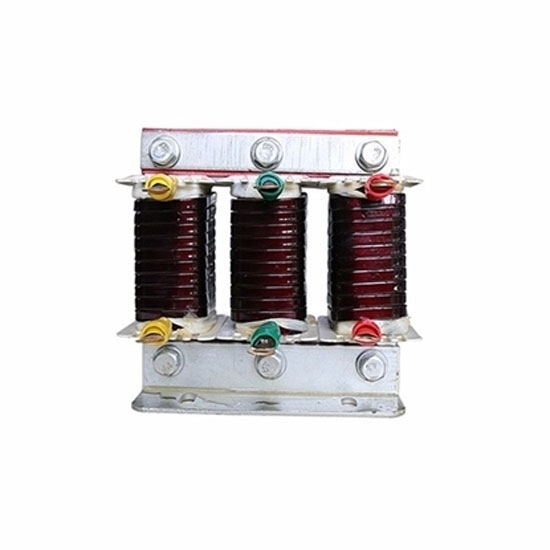

    15 hp (11 kW) 3 Phase AC Output Line Reactor for VFD

    $79.36
    Excellent 15 hp (11 kW) AC output line reactor is designed with copper or aluminum, 3 pole for VFD, voltage with 220V, 380V, 400V, 410V, 440V, 460V or 480V, Inductance Value is 0.23 mh. Preferential price, direct sale by manufacturer.
    SKU: ATO-OCR-0030-0M23-0.4SC
    Delivery date: 6-12 days

    The 30 amps output line reactor is available at 220V, 380V, 400V, 410V, 440V, 460V, or 480V, 3 Phase for vfd, with two materials to choose from. ATO output line reactor is characterized by high performance and low cost.

    11 kW 3-Phase Line output Reactor Specifications

    Basic Model ATO-OCR-0030-0M23-0.4SC
    Phase 3 Phase
    Weight 4kg
    Technical Parameters Power 15 hp (11 kW)
    Rated Current 30A
    Inductance Value 0.23mH
    Voltage Drop 1%
    Insulation Rank Class F, H
    Work Voltage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Material Copper or Aluminum
    Work Frequency 50/60Hz
    Carrier Frequency 2-8KHz
    Voltage Drop ≤4﹪higher than the range will cause the loss of torque
    Insulation Resistor ≥100MΩ
    Protection Class IP00-IP22
    Max Current 1.5 times rated the current continues 60s
    Noise ≤65db
    Working Environment Temperature Rise ≤85k
    Altitude ≤2000m
    Running Ambient Temperature -25℃~+45℃
    Relative Humidity ≤90%RH, without condensation

    3-Phase Output Line Reactor Mounting Dimension

    15hp(11kW) 3 phase line reactor

    Dimension(±5mm)
    L D W W1 H A×B
    155 95 90 70 130 6×15

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram.

    Tips: How to solve the local heating of line reactor?

    If line reactor has local heating, reduce the loads of line reactor and strengthen ventilation. If necessary, adopt provisional measures, such as strengthening the blowing of fan. Eliminate faults when the opportunity of outage comes.

    How to solve the fracture of porcelain support insulator of line reactor?

    If the concrete column is damaged or porcelain support insulator has cracks, coils buldge and are earthed, adopt standby line reactor, disconnect and repair breaker. After the fault is eliminated, put it into operation.
