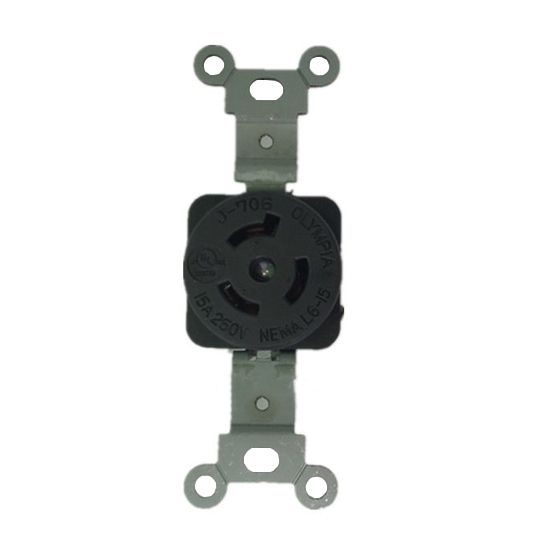

15A 250V Locking Receptacle, 2 Pole, 3 Wire

15 amp 250 volt twist lock receptacle utilize a twisting method with a plug to establish a connection, helping you avoid the danger of loose plugs.

Specification

• Model: ATO-BL6-15R
• Certification: UL
• Grounding: Standard Grounding
• Rated Voltage: 250 Volt
• Rated Current: 15 Amp
• Application: Commercial
• Flammability: Rated V-2 per UL94
• Back Cover: Thermoplastic
• Color: Black
• Pole: 2
• Wire: 3
• Body Material: Super Tough Nylon
• Assembly Screws: Steel, Zinc Plated
• Terminal Screws: Brass
• Standard and Certification: UL498

Tips: How to install a locking receptacle?

To install a twist lock receptacle, use the three color-coded wiring terminals of the plug, including the positive terminal, the neutral terminal and the ground terminal.

1. Wrap the hot wire or positive wire (black wire) clockwise around the screw in the gold terminal, and then tighten the screw.
2. Take a neutral wire (gray or white) and wind it clockwise around the screw in the silver terminal of the twist lock receptacle. Make sure the screws are tight.
3. Locate the ground wire (green or green and yellow) and twist the strand to form a wire. Take that wire and wind it around the screw at the green terminal of the plug. Tighten the screws.
