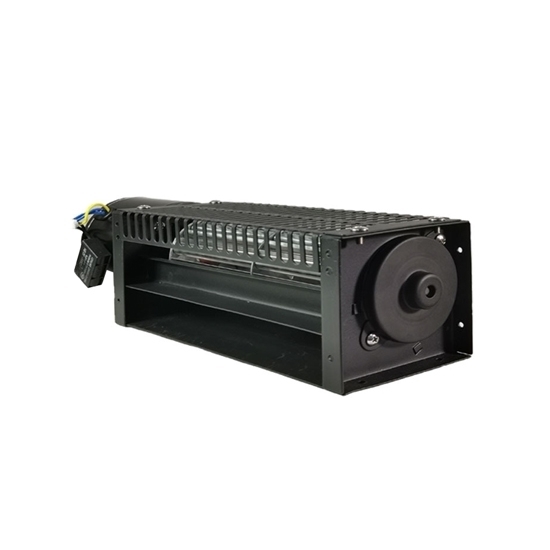

16 inch Cross Flow Colling Fan

A low-priced tangential blower has a compact design that allows installation in small spaces. Whether you need to cool electronic equipment, improve indoor air circulation or provide fresh air for plants, our cross flow cooling fans have the right solution for your needs.

Specification

• Model: ATO-CY F06031

• Rated Voltage: 220V

• Frequency: 50 Hz

• Phase: 1 Phase

• Pole: 2 Pole

• Current: 0.21A

• Out Power: 25W

• Speed: 2850 rpm

• Max.Pressure: 47 Pa

• Max. Air Flow: 252 m3/h

• Noise: 47 dB

• Weight: 2 kg


Features

• The wind wheel is multi-blade, high speed dynamic balance correction, large air volume, low noise.
• The cross flow cooling fan is equipped with a certified high efficiency motor and is installed in a direct connection for stable performance.
• The air outlet comes with a square to round fitting, the installation can be adjusted in many directions.
• Optimised design of the air ducts for a significant energy saving effect.
• Tangential fans can be made of special materials and can be made with special features such as infinitely variable speed.
• The 16" crossflow blowers fans can be matched with motors of different frequencies or voltages, AC or DC.

Dimension (unit: mm)

• A: 246.5
• B: 260
• C: 315
• D: 88

Applications

Crossflow fans, also known as tangential or blower fans, are commonly used in a variety of applications. One of the most common uses of crossflow fans is in HVAC systems, where they are used to circulate air throughout a building. They are also used in electronic equipment, such as computers and audio systems, to cool components and prevent overheating.

Tips: What are the advantages of using a crossflow fan?

• Wide airflow coverage: Crossflow fans provide a wide coverage of airflow, which is particularly useful for applications where even distribution of air is important. The fan's shape and design allow air to flow in a linear direction across the entire length of the fan, making it useful for applications such as air curtains and air doors.
• Low noise: Crossflow fans are designed to be low noise, which makes them ideal for applications where noise reduction is important. The fan's design allows for a low blade tip speed, resulting in low noise levels during operation.
• Compact size: Crossflow fans are typically more compact than other types of fans with the same airflow capacity, which makes them ideal for applications where space is limited.
• Low power consumption: Crossflow fans are designed to be energy-efficient, with low power consumption, making them ideal for applications where energy savings are important.
• Directional air flow: Crossflow fans provide a directional air flow that can be useful for applications such as cooling electronics or drying parts. The fan's design allows for a uniform flow of air, which can help to prevent hot spots or areas of stagnation.
• Easy installation: Crossflow fans are relatively easy to install, with a simple mounting system that allows for easy integration into existing systems.

Overall, the advantages of using a crossflow fan make it a popular choice for a variety of applications where efficient, low noise, and uniform airflow are required.
