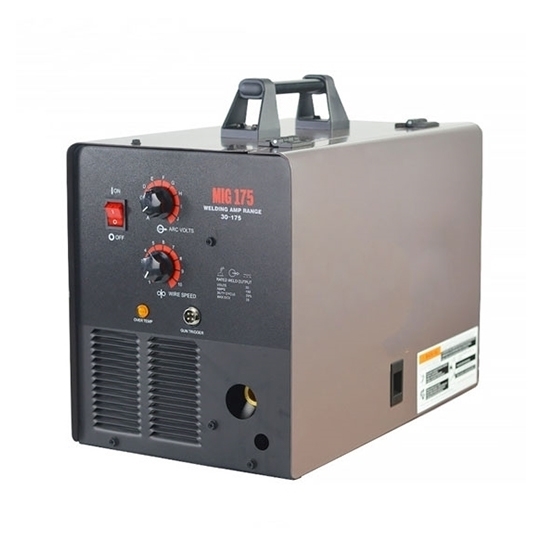

    175A DC Mig Welder, 240V

    4.5 out of 5 based on 2 reviews | Write a review
    Best mig welder for home use, rated currrent with 20A-175A, operate on 200V to 240V, frequency 50Hz and 60Hz are available, automatic dual frequency, It is able to weld aluminum with the spool gun. Low price and manufacturer direct sales.
    SKU: ATO-WM-MIG175
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Mig welder for sale, ATO welding supplies at a low price, freqency is 50Hz or 60Hz, 240V dc mig welder can be used for welding stainless steel, low carbon steel, aluminum and other metal materials.

    Milller Welder Miller Specifications

    Model ATO-WM-MIG175
    Output Power DC
    Input Voltage 220V-240V, +/15%, 1-PH, 50Hz/60Hz (Automatic dual frequency)
    Input Current 22A at 220V
    Output Current 30A-175A
    Power 8.2 kVA
    Power Factor 0.73
    Duty Cycle at 40℃(104℉) 20% at 175A
    30% at 175A
    Dimension 457mm*267mm*318mm
    Weight 38.6kg
    Cutting Material Mild Steel, Stainless Steel, Aluminum, etc
    Welding Thickness 6.35mm, (Aluminum)4.76mm
    Gas Supply Steel: Clean, Dry, Oil Free 75% Argon and 25% CO2
    Aluminum: Clean, Dry, Oil Free Argon
    Color Grey
    Warranty 12 Months
    Recommender Gas Inflet Flow Rate/Pressure 12-14 L/min

    240V Mig Welder Features:
    1. 175 Amps welding output, suitable for welding stainless steel, mild steel, aluminum, and other metal materials.
    2. Welding capacity: stainless steel: 18 Gauge-1/4", mild steel: 18 Gauge-1/4", aluminum: 3/8" or thinner.
    3. Reliable and durable. Its transformer technology has been proven to be reliable and durable. ATO-WM-MIG175 can easily connected to your existing 220V wall outlet and can be setup quickly within 10 minutes.
    4. Spool gun included. MIG spool gun: high-speed MIG spool gun for aluminum welding, 10 feet 4 inches long, 4-prong end connection, 1lb aluminum wire with dia. 0.9 millimeter included. Can weld 3/8" or thinner aluminum plate.
    Mig weider features

    Portable 175A DC Mig Weldert Package Includes:
    1. MIG Spool gun MSG094 (9ft long). MIG Torch MT104 (10ft long, 4 prong connection).
    2. Ground cable & clamp (6 ft long). Argon hose (4ft long).
    3. Argon regulator AR03. Hand shield and cleaning wire brush.
    4. MIG welding solid wire (0.8mm, 0.9kg) spool. User Manual.
    5. MIG accessories: One interior tip for torch MT104 (size 0.8-0.030).
    6. One interior tip for spool gun MSG094 (size 0.9-0.035). One wrench and one wire feeder accessory part.

    200A Inverter Welding Structure

    200A mig welder structure

    Tips: Welding Safety Precautions
    1. According to the technical conditions of the work, choose a reasonable welding process, do not allow over-load use, do not allow high-current welding, and do not allow metal cutting operations with electric welders.
    2. During the load welding, the temperature rise of the welder should not exceed 60 degrees of Class A and 80 degrees of Class B. Otherwise, it should be stopped and cooled before welding.
    3. The welding machine should be kept dry and well ventilated. When moving the welding machine, the power should be cut off, and the welding machine should not be moved by pulling the power supply. If there is a sudden power failure during welding, the power should be cut off.
    4. In welding, it is not allowed to adjust the current. It must be adjusted with the adjustment handle during the stop welding, not too fast, too strong, so as not to damage the regulator.
    5. It is forbidden to do welding work under the crane running workpiece.
    6. If welding is carried out in the area of the crane wire rope, care should be taken not to cause the welder ground wire to accidentally touch the lifted wire rope to avoid sparks causing accidents.
    7. The welder must work on the insulated wooden board when working in the wet area. It is not allowed to touch the welder wire. It is not allowed to hold the welding tongs with the arm.
