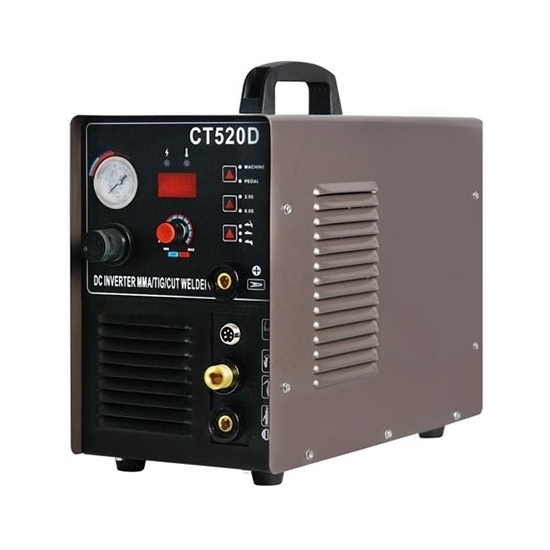

    200A DC Arc welder, Dual Voltage 110V/220V

    $1,079.56
    Low price 200A DC Arc welder for sale, dual volatage 110V 220V, multi process welder frequncy 50Hz or 60 Hz is available, current with 10-200 amp, it is allows to weld stainless steel, alloy steel and carbon steel and other nonferrous metals.
    SKU: ATO-WM-CT520D
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    200A multi process welder can select voltage 110V or 220V, 50Hz/60Hz, DC inverter welder has the characters of high efficiency, smooth cuts and low noise, affordable price, manufacturer direct sales.

    200A Arc DC Welder Specifications

    General Model ATO-WM-CT520D
    Functions 50A Plasma Cutter
    200A TIG Welder
    200A STICK Welder
    Input Voltage 110V or 220V, 1-PH
    Frequency 50Hz or 60Hz
    Housing Protection IP21
    Capacity 5.8 kVA
    Efficiency 85%
    Color Brown
    Accessories Plasma Cutting Torch 50A, 12.5ft,(3.81m)
    Tig Welding Torch 200A,12.9ft,(3.93m)
    Arc/Stick Clamp 200A, 6.5ft, (1.98m)
    Argon Regulator 0-250 psi
    Air Regulator 0-150 psi
    Plasma Cutting Rated Input Power Requirement 120-220V, 1-PH, 27A+/-15%
    Frequency 50/60Hz
    Output Current 10-50A at 220V, 10-25A at 110V
    Duty Cycle at 40℃(104°F) 60% at 50A ,100% at 40A
    Gas Supply Clean Dry, Oil Free Air
    Recommended Gas Inlet Flow Rate/Pressure 3.6scfm at 65 psi 50L/min
    Max Rated Cutting Thickness 1/2 inches (12.7mm)
    DC TIG Welding Rated Input Power Requirement 120-220V, 1-PH, 17A+/-15%
    Frequency 50Hz/60Hz
    Output Current 10-200A at 220V 10-100A at 110V
    Duty Cycle at 40℃(104°F) 60% at 200A ,100% at 150A
    Gas Supply Clean Dry, Oil Free Air
    Material Can Weld, Steel Stainless, Moly, Ferrous
    No Load Voltage 62V
    Working Voltage 16.9V
    Starting Mechanism High Frequency Start/ HF Welding
    Recommended Gas inlet Flow Rate/Pressure 2-5L/M
    Max Rated Cutting Thickness 1/2 inches (12.7mm)
    DC STICK Welding Rated Input Power Requirement 120-220V, 1-PH, 23A+/-15%
    Frequency 50Hz/60Hz
    Output Current 10-200A at 220V 10-80A at 110V
    Duty Cycle at 40℃(104°F) 60% at 200A ,100% at 95A
    Material Can Weld, Steel Stainless, Moly, Ferrous
    No Load Voltage 62V
    Working Voltage 25V

     Dual Voltage Arc Welder  Features:
    1. MOSFET inverter, high frequency soft switches, high efficiency and reliability.
    2. Welding parameters can be set accurately.
    3. DC square wave for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals.
    4. Easy arc starting, stable welding current, excellent square wave.
    5. Fast response, little splashing, excellent welding appearance.
    6. Suitable for welding stainless steel, mild steel, aluminum and other metal material.

    200A DC Arc Welder Structure


    Mig welder structure

    Tips: Arc Welder Working Princeple
    The arcing of argon arc welding adopts the arcing mode of high-voltage breakdown. First, high-frequency high-voltage is applied between the electrode needle (tungsten needle) and the workpiece, argon gas is broken down to make it conductive, and then a continuous current is supplied to ensure the arc is stable.
    The working principle of the arc welder in the main circuit, the auxiliary power supply, the driving circuit and the protection circuit is the same as that of the hand arc welding machine.
