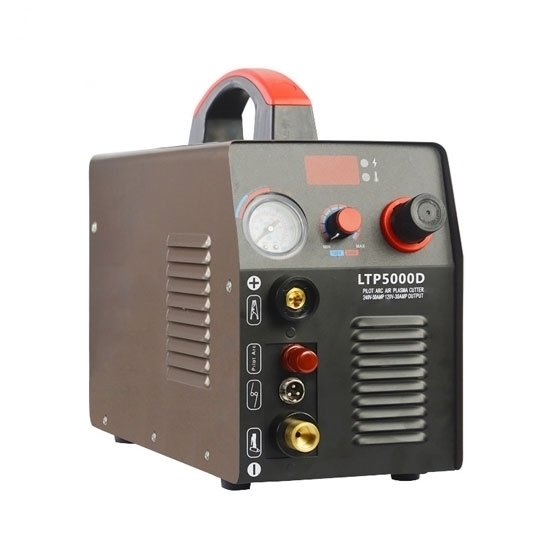

    50A DC Arc Plasma Cutter, Dual Voltage 110V/220V

    5 out of 5 based on 1 reviews | Write a review
    $857.98
    Plasma cutter price is cheap, 50A digital DC plasma cutter miller can run on voltage 110V/220V, 50Hz and 60Hz can be selected, 7.1 kVA. It has high cutting speed, smooth cutting or welding, power efficiency and low noise output.
    SKU: ATO-WM-LTP5000D
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Dual voltage arc welder output current with 10-50A, suitable for welding stainless steel, mild steel, aluminum and other metal material, ATO welding supplies manufacturer direct sales.

    50A DC Arc Plasma Cutter Dual Voltage Specifications

    Model ATO-WM-LTP5000D
    Output Power DC
    Input Voltage 110V/220V, +/15%, 1-PH, 50Hz/60Hz
    Input Current 240V,1-PH, 20A
    Output Current 10-50A
    Power 7.1 kVA
    Power Factor 0.73
    Duty Cycle at 40℃(104℉) 60% at 50A,240V
    Dimension 381mm*152.4mm*340.8mm
    Weight 11.8kg
    Cutting Material Mild Steel, Stainless Steel, Aluminum, etc
    Welding Thickness 1/2"
    Gas Supply Clean, Dry, Oil-Free Argon
    Color Red
    Warranty 12 Months
    Input Power Cable Length 6' (1.8m)
    Max Severance Thickness 3/4"
    Recommender Gas Inflet Flow Rate/Pressure 3.6scfm at 65psi
    Accessories Pilot Arc Plasma Torch ( 9’5")
    Plasma Consumables (installed on the torch head)
    Air Filter/Regulator
    Ground Clamp&Cable
    Connections, (like air house etc.)
    User Manual

     50A DC Welding Machine Cut Chart

    Material Thickness Current
    inches mm amps
    Mild Steel 10 gauge 3 50
    1/4 6 50
    3/8 10 50
    1/2 12 50
    5/8 16 50
    Stalinless Steel 10 gauge 3 50
    1/4 6 50
    3/8 10 50
    1/2 12 50
    Aluminum 1/8 3 50
    1/4 6 50
    3/8 10 50
    1/2 12 50

    110V 220V Stick Welder Features:
    1. 10-50 Amp AC/DC square-wave inverter TIG/Stick (MMA) welder.
    2. Automatic dual voltage/ dual frequency (110/220Volt 50/60Hz).
    3. High frequency start hand torch control and precise foot pedal welding heat control.
    4. Suitable for welding stainless steel, mild steel, aluminum and other metal materials.

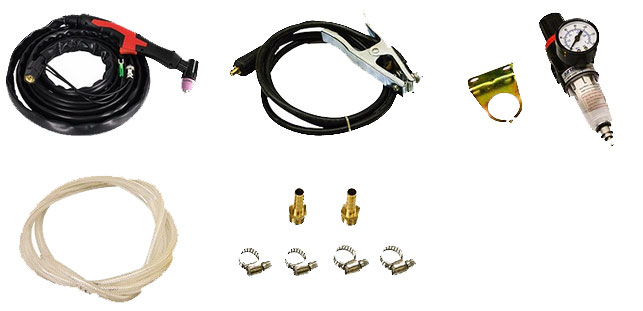

    Dual Voltage Welding Machine Accessories
    ATO welding machine accessories

    50A DC Arc Welding Machine Structure


    Mig welder structure

    Tips: What is The Difference Between AC Welding Machine and DC Welding Machine?
    The output current is used to distinguish AC and DC. The more important weldments (such as boilers, pressure vessels and alloy structural steels) generally use DC welding machine, which has beautiful weld formation, stable arc, small splash, low air consumption, and general welding. The DC welding machine for alkaline welding rods has good crack resistance and mechanical properties, but the process performance is poor. The AC welding machine mainly welds low carbon steel and low strength low alloy structural steel. Generally, it is welded by welding acid electrode. The acid electrode can be used for both AC and DC, and the welding process performance is good, but the mechanical properties of the weld, especially the impact toughness is poor. The price of the DC welder equipment is slightly higher than that of the AC welder, and the durability is slightly poor and the maintenance cost is high.
