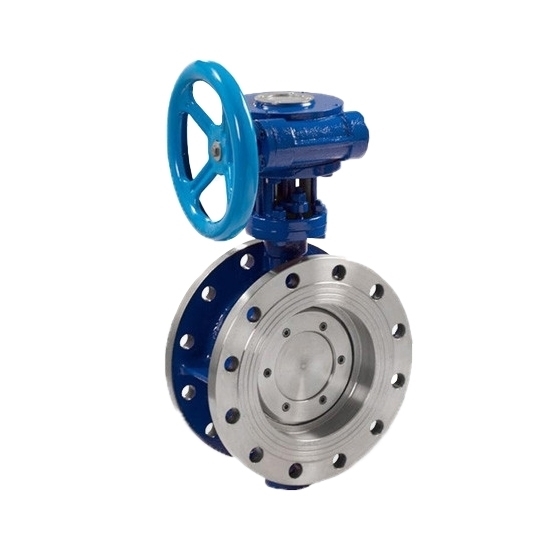

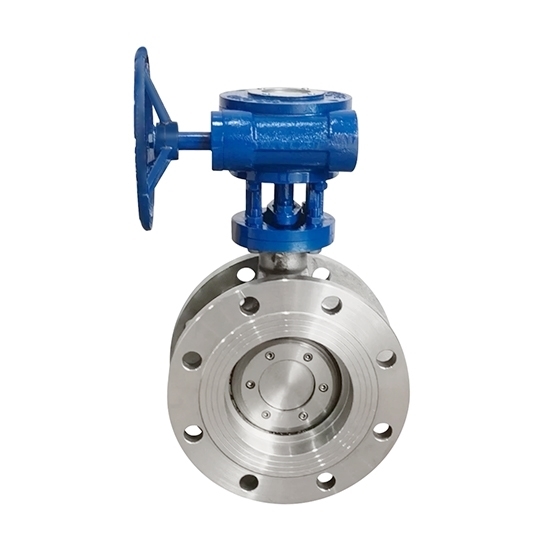

    2 1/2 inch Triple Offset Butterfly Valve

    Compact triple offset butterfly valve for sale at low price. Comes with 2 1/2 inch (DN65) port size, and body materials of cast steel, and stainless steel are available. The hard seal butterfly valve can be used in water, weak acid-base, air, steam, oil, etc.
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Lower cost triple offset butterfly valve with 2 1/2 inch (DN65) port size. The hard alloy sealing material is used to ensure the sealing performance and wear resistance of the 2 1/2 inch triple eccentric butterfly valve.


    • The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
    • The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
    • Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.


    • Model: ATO-D343H-16C-DN65
    • Port Size: 2 1/2 inch (DN65)
    • Nominal pressure: PN16
    • Connection Type: Flanged Type
    • Body Material: Cast steel WCB/ Stainless Steel
    • Disc Material: Cast steel WCB/ Stainless Steel
    • Media: Water, weak acid base, air, steam, oil, etc.
    • Working Temperature: Cast steel: -29℃~425℃, Stainless steel -40℃~600℃


    Triple offset butterfly valve dimension

    Model Length (mm) Dimension (mm) Connection Size (mm)
    H L H1 A1 B1 D D1 Z-d
    ATO-TOBV-DN65 115 112/170 370 180 200 185 145 4-18


    Triple offset butterfly valve application

    Tips: Why use a triple offset butterfly valve?

    The triple offset valve design achieves zero leakage on metal-to-metal contact. The main advantages of a triple offset butterfly valve are its conical sealing design, which results in repeatable sealing and vastly extended valve life. The hard-facing seat eliminates the rubbing between the seat and seal ring through the flow path to extend the cycle life. Its uniform sealing can operate more frequently, and open and close quickly.
