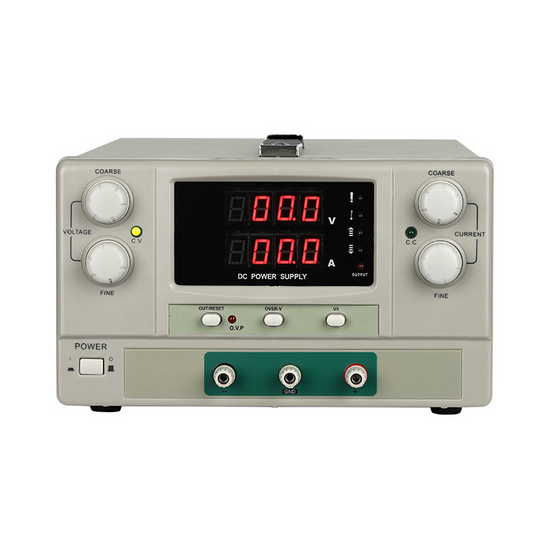

2A/3A/5A 1000V Adjustable DC Power Supply

5 out of 5 based on 1 reviews | Write a review

$1,415.23

This power supply is a high-voltage DC power source with 0–1000V continuously adjustable output, 2A/3A/5A current options, and up to 5000W power. PWM switching technology provides high efficiency and stable regulation, while automatic CV/CC switching supports precise power control for laboratories, R&D, and industrial testing.

Supply Voltage *
Output Current *

SKU: ATO-DCPS-0205

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This 2A/3A/5A adjustable DC power supply combines automatic CV/CC switching with stable output, digital voltage and current monitoring, and forced-air cooling. Built-in OVP, OTP, overload, and short-circuit protection support safe long-term operation across various resistive, capacitive, and inductive loads. Order now for versatile DC power applications.

Specification

Model	ATO-JK10002K	ATO-JK10003K	ATO-JK10005K
Input Voltage Range	Single Phase AC 220V ±15%	Single Phase AC 220V ±10%	Single Phase AC 220V ±15%
Output Voltage	DC 0–1000V Continuously Adjustable	DC 0–1000V Continuously Adjustable	DC 0–1000V Continuously Adjustable
Output Current	0–2A Continuously Adjustable	0–3A Continuously Adjustable	0–5A Continuously Adjustable
Output Power	2000W	3000W	5000W
Input Frequency	50Hz/60Hz
Source Regulation	≤0.5%+10mV
Load Regulation	≤0.5%+10mV
Ripple	≤1%+10mVrms		≤0.8%+10mVrms
Voltage Display	3-digit digital meter	3.5-digit digital meter	4-digit digital meter
	Accuracy: ±0.5% + 1 digit (10%–100% rated value)	Accuracy: ±0.5% + 1 digit (10%–100% rated value)	Accuracy: ±0.5% + 1 digit (10%–100% rated value)
	Display format: 000V–1000V	Display format: 000V–1000V	Display format: 0000V–1000V
Current Display	3-digit digital meter	3.5-digit digital meter	4-digit digital meter
	Accuracy: ±0.5% + 1 digit (10%–100% rated value)	Accuracy: ±0.5% + 1 digit (10%–100% rated value)	Accuracy: ±0.5% + 1 digit (10%–100% rated value)
	Display format: 00.0A–2.0A	Display format: 00.0A–3.00A	Display format: 00.00A–5.00A
Insulation Resistance	Input to Output: ≥20MΩ
	Input to Chassis: ≥20MΩ
	Output to Chassis: ≥80MΩ
Dielectric Strength	Input to Output: AC1500V, 10mA, 1 min
	Input to Chassis: AC1500V, 10mA, 1 min
	Output to Chassis: AC1500V, 10mA, 1 min
Output Over-Voltage Protection	Built-in OVP, protection value: rated value +5%
Output Over-Current Protection	Overload & short-circuit constant current output
Over-Temperature Protection	Built-in OTP, protection at 85℃±5% (heatsink temperature)
Voltage / Current Setting	Potentiometer
Output Polarity	Output positive (+) / negative (-) can be grounded arbitrarily
Cooling Method	Forced Air Cooling
Operating Environment	Temp: -10℃～40℃ (Indoor use)	Temp: -10℃～60℃ (Indoor use)	Temp: -10℃～40℃ (Indoor use)
Operating Environment	Humidity: 10%～85% RH (Indoor use)
Storage Environment	Temp: -20℃～70℃
Storage Environment	Humidity: 10%～90% RH
Cabinet Dimension (LWH)	430mm255mm155mm	530mm430mm200mm	530mm430mm200mm
Weight	12 kg	25 kg	25 kg
Notes	All values are typical values. Deviations may occur under different load or other conditions.Accuracy is measured under load-side voltage detection. Deviations between actual and rated values may exist due to temperature error and component aging.

Features

Continuously Adjustable Output: The DC power supply provides continuous 0–1000V DC output, with 2A, 3A, and 5A current options. Voltage and current are continuously adjustable from zero to rated values to meet various high-voltage DC power requirements.
Automatic CV/CC Switching: The variable DC power supply automatically switches between constant voltage (CV) and constant current (CC) modes according to load conditions, providing stable voltage or current regulation for different testing applications.
PWM Switching Technology: Advanced PWM switching control gives the power supply high conversion efficiency and stable output performance compared with conventional linear power supply designs.
High-Stability Output: The power supply features voltage stability of ≤0.5%+10mV and load stability of ≤0.5%+30mV, helping maintain consistent DC output under changing load conditions.
Low-Ripple Output: With ripple as low as ≤0.8%+10mVrms depending on the model, the power supply provides cleaner DC output for electronic testing, R&D, and precision power applications.
Multiple Protection Functions: Built-in OVP, OTP, overload, and short-circuit protection help protect the power supply and connected loads against abnormal operating conditions.
Soft-Start Output: The adjustable power supply uses a delayed soft-start function to reduce output voltage overshoot when powered on, improving startup stability and protecting connected equipment.

Dimension (unit: mm)

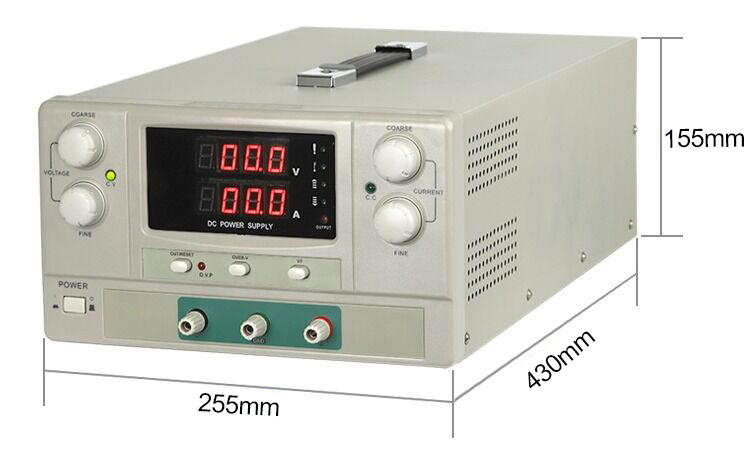

2A:

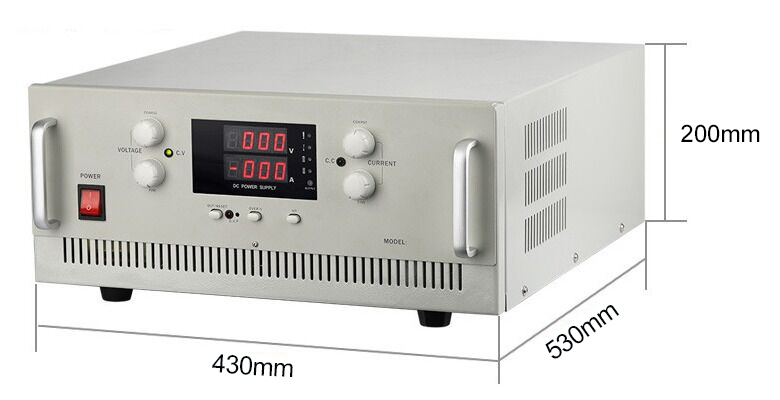

3A/5A:

Details

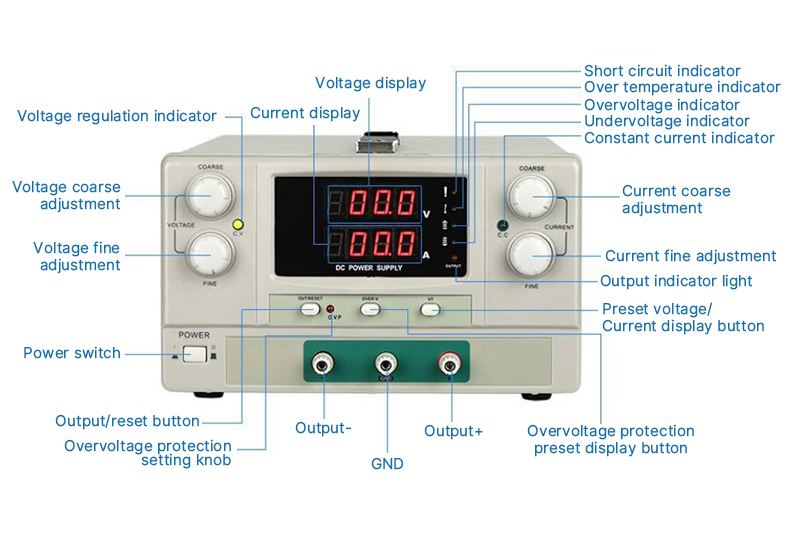

2A:

2-5a dc power supply details_1

3A/5A:

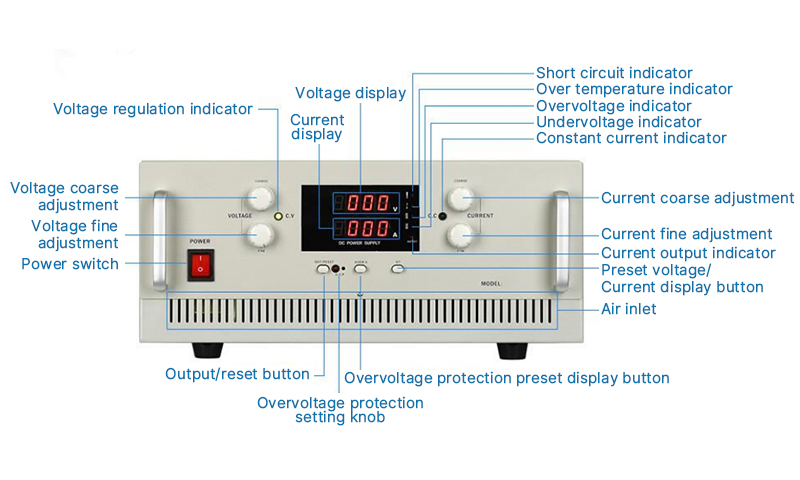

2-5a dc power supply details_2

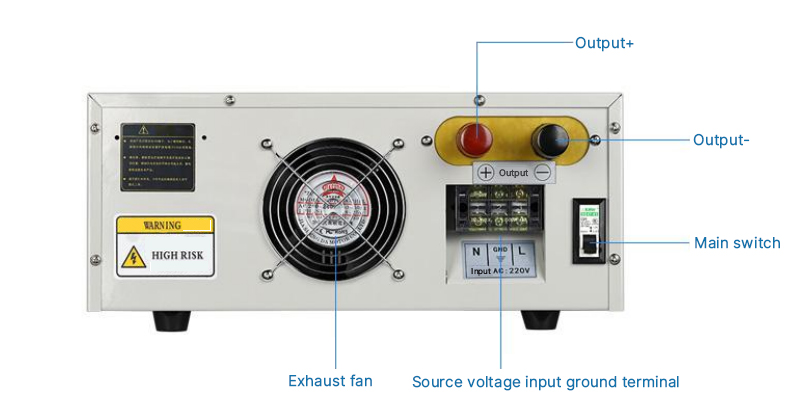

2-5a dc power supply details_3

Tips: How to choose the output range of a DC power supply?

Choose a DC power supply with voltage and current ranges covering the actual load requirements with reasonable headroom. Set the voltage range about 10%–20% above the rated load voltage and the current range 20%–30% above maximum demand, allowing more margin for loads with inrush current. Also verify the power limit at the required voltage and current, and consider CV/CC modes, derating, ripple, noise, resolution, accuracy, and required communication interfaces.
