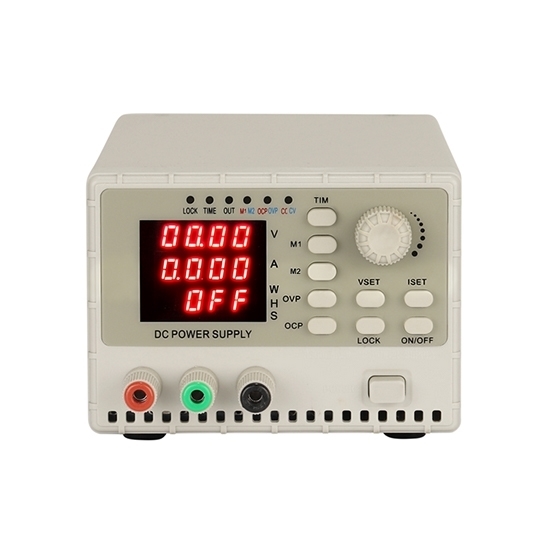

2A 300V 600W Variable DC Power Supply

Designed for flexible operation, the 2A 300V variable DC power supply features digital knob and keypad control, programmable output cycles, and remote sensing for accurate load-voltage regulation. RS-485, RS-232 (optional)  support automated control. Order now for streamlined testing.

Specification

Features

1. High-Voltage Output: The DC power supply delivers adjustable 0–300V output with up to 600W power, providing flexible power delivery for electronics testing, development, and maintenance.
2. Adjustable Output Control: Voltage, current, slope, and time-cycle parameters can be programmed to create controlled output sequences for repeatable testing and automated operation.
3. Accurate Load Control: The variable DC power supply uses dedicated load-side voltage sensing to detectactual load voltage and compensate for voltage drops, helping maintain precise output control.
4. Comprehensive Protection: Overvoltage, overcurrent, and overtemperature protection help reduce the risk of damage to the power supply and connected equipment during abnormal operating conditions.
5. Flexible Remote Control: RS-485, RS-232 interfaces enable the DC power supply to work with external control systems, while MODBUS supports automated operation and system integration.
6. Compact Design: The power supply combines a compact body with an approximately 1.8kg weight, making it convenient for laboratory benches and space-limited workstations.

Dimension (unit: mm)

Details

Tips: How to Use a variable DC power supply safely and correctly?

• Output Setting: Set the required voltage and current limit before connecting the load. Check the displayed values and ensure they match the load’s rated input range.
• Load Connection: Verify the output settings and polarity before connecting the load. Disconnect the load before making significant voltage adjustments or changing the output range.
• Current Limit: Set the current limit slightly above the load’s expected operating current. If the load exceeds this limit, the DC power supply may enter current-limiting or CC mode.
• Protection: If OVP, OCP, or OTP protection is triggered, disconnect the load and check for short circuits, incorrect wiring, or excessive current before resuming operation.
• Series Connection: When connecting DC power supplies in series, verify output isolation, polarity, and voltage ratings. The supply with the lowest current rating determines the usable current.
• Output Monitoring: Monitor the displayed voltage and current during testing. Changes in output current can help identify abnormal load conditions or operation near the current limit.
