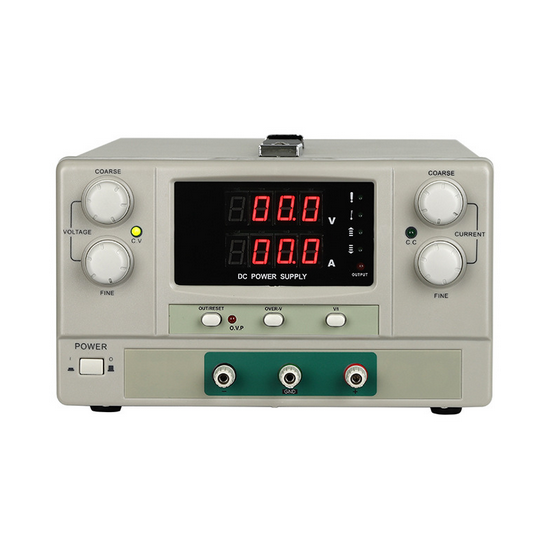

5A 300V 1500W Variable DC Power Supply

5 out of 5 based on 1 reviews | Write a review

$729.85

This variable DC power supply delivers 0–300V and 0–5A continuously adjustable DC output with 1500W power capacity. PWM switching control combines flexible output adjustment with a compact and lightweight design, making it suitable for electronics, industrial control, communications, research, and laboratory applications. It provides engineers with versatile power for different testing conditions.

Supply Voltage *
Communication Port *

SKU: ATO-DCPS-05

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Automatic CV/CC conversion, low ripple, and fast response help maintain stable voltage or current output as load conditions change. This variable DC power supply also features delayed soft start to reduce startup voltage overshoot, preset voltage/current settings, and built-in OVP, OTP, overload, and short-circuit protection for reliable operation.

Specification

Model	ATO-JK3005K
Input Voltage Range	Single Phase AC220V±15%
Input Frequency	50Hz/60Hz
Output Voltage	DC 0-300V Continuously Adjustable
Output Current	0-5A Continuously Adjustable
Output Power	1500W
Line Regulation	≤0.5%+10mV
Load Regulation	≤0.5%+30mV
Ripple	≤1%+10mVrms
Voltage Display	3-digit digital meter, Accuracy: ±0.5%FS +1 digit (10%-100% rated value)
Voltage Display	Display Format: 000V~300V
Current Display	3-digit digital meter, Accuracy: ±0.5%FS +1 digit (10%-100% rated value)
Current Display	Display Format: 0.00A~5.00A
Insulation Resistance	Input to Output: ≥20MΩ
	Input to Chassis: ≥20MΩ
	Output to Chassis: ≥80MΩ
Dielectric Strength	Input to Output: AC1500V, 10mA, 1min
	Input - Chassis: AC1500V, 10mA, 1min
	Output-Chassis: AC1500V, 10mA, 1min
Output Overvoltage Protection	Built-in OVP, protection point: rated value +5%
Output Overcurrent Protection	Constant current output for overload & short circuit
Over Temperature Protection	Built-in OTP, protection point: 85℃±5% (heatsink temperature)
Voltage & Current Setting	Potentiometer
Output Polarity	Output positive(+) and negative(-) can be grounded arbitrarily
Cooling Method	Forced Air Cooling
Operating Environment	Temperature: -10℃～40℃ (Designed for indoor use)
Operating Environment	Humidity: 10%～85% RH (Designed for indoor use )
Storage Environment	Temperature: -20℃～70℃
Storage Environment	Humidity: 10%～90% RH
Dimension & Weight	L303mmW255mmH155mm
Weight	7.5kg
Note	All values are typical. Parameters may vary under different load conditions. Accuracy is measured at load terminal. Actual values may deviate from rated values due to temperature drift and component aging.

Features

1500W High-Power Output: The variable DC power supply delivers up to 1500W of output power, with voltage continuously adjustable from 0–300V and current from 0–5A, providing flexible high-power DC supply for demanding applications.
Automatic CV/CC Switching: The power supply automatically switches between constant-voltage and constant-current modes according to load conditions, helping maintain stable and regulated output.
PWM Switching Control: Advanced PWM switching technology gives the DC power supply a compact and lightweight design while supporting high efficiency, fast response, and stable electronic performance.
Low Ripple & Fast Response: Low output ripple and fast response help the variable DC power supply maintain consistent DC output when load conditions change.
Built-In Protection: OVP, OTP, overload, and short-circuit protection help protect the power supply against overvoltage, overheating, overload, and short-circuit conditions during operation.
Remote Control Available: Optional 0–5V, 0–10V, or 4–20mA control enables the DC power supply to interface with PLC systems for remote operation and automated control.

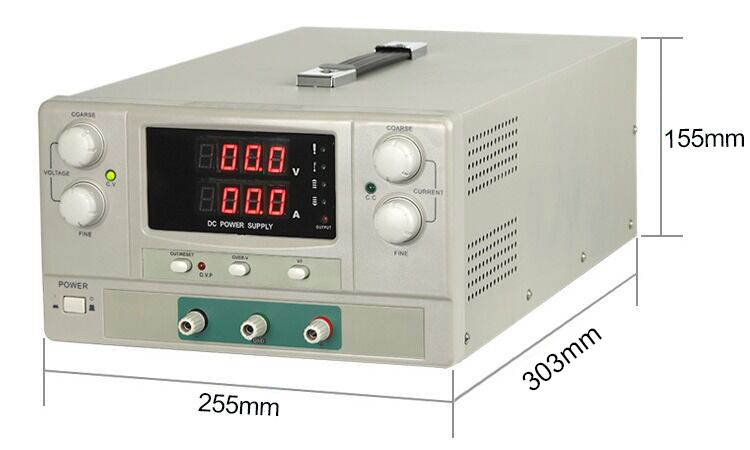

Dimension (unit: mm)

5a dc power supply dimension_1

Details

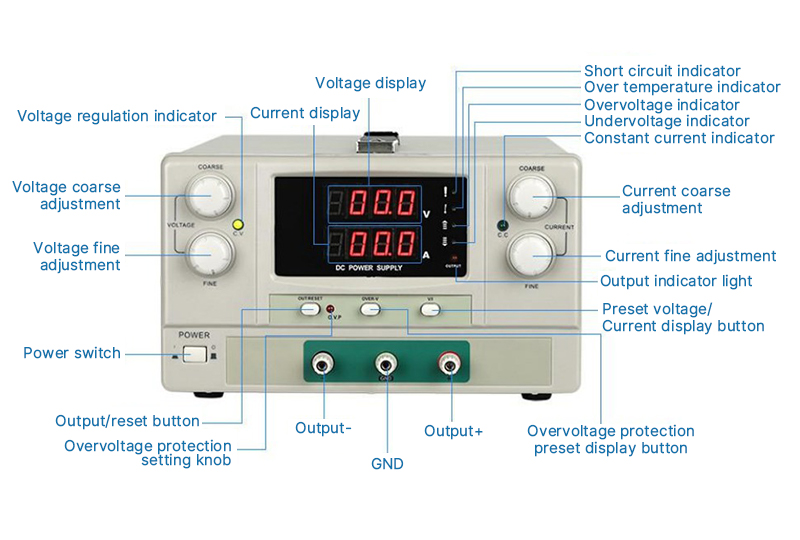

5a dc power supply detail_1

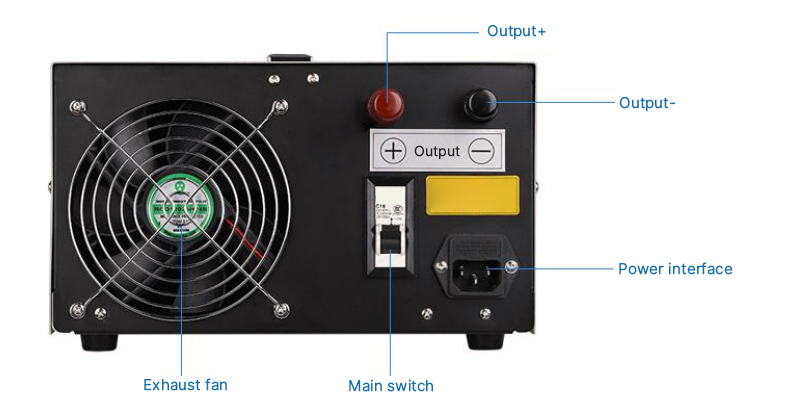

5a dc power supply detail_2

Tips: How much output current does a DC power supply need?

The required output current depends on the maximum working current of the load. A regulated DC power supply should provide more current than the load actually requires. Small digital devices may need around 1A, handheld radios about 3A, laptops around 5A, vehicle radios 10–12A, and 100W shortwave radios about 20A. Select a power supply with sufficient current capacity for the intended load.
