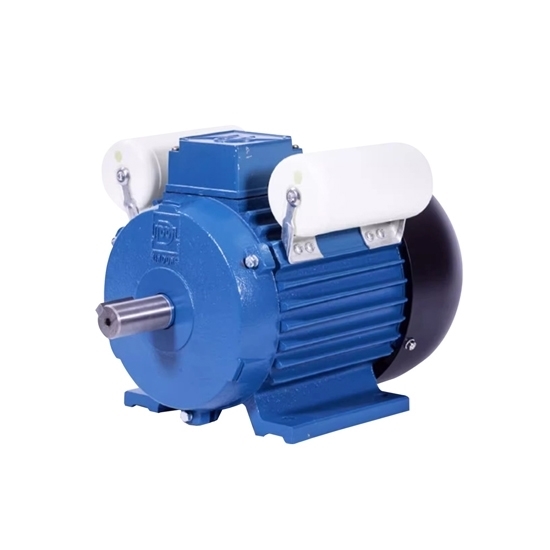

2 hp (1.5kW) 220V Single Phase AC Induction Motor

$469.69

Cheap 2 hp single phase motor with 1.5kW, 1500rpm/3000rpm speed. It is an asynchronous motor. 200V/110V/230V/240V AC works at 50/60 Hz frequency. 2 hp 1 phase motor price is low. It has a start capacitor and run capacitor to provide zero starting torque during operation. The single phase induction motor is easy to repair and maintain, used for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Voltage (V) *
Speed *

SKU: ATO-SPM-1500

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview
Related Video

Buy a high efficiency 2 hp single phase motor at low price. 1 phase induction motor has a start capacitor and run capacitor, zero starting torque can be got during operation. 1.5KW 1 phase motor with optional speed 1500/3000 rpm, 200V/110V/230V/240V voltage, works at 50/60 Hz frequency, and supplies for home appliances, offices, stores and small non-industrial companies.

Specifications

Model	ATO-YL90S-2	ATO-YL90L-4
Rated Output	1.5kW (2hp)
Efficiency	76%	75%
Power Factor	0.95 COSφ
Rated Speed	2820rpm	1420rpm
Rated Current	9.03A	9.15A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.7 times
ls/ln	55 times	55 times

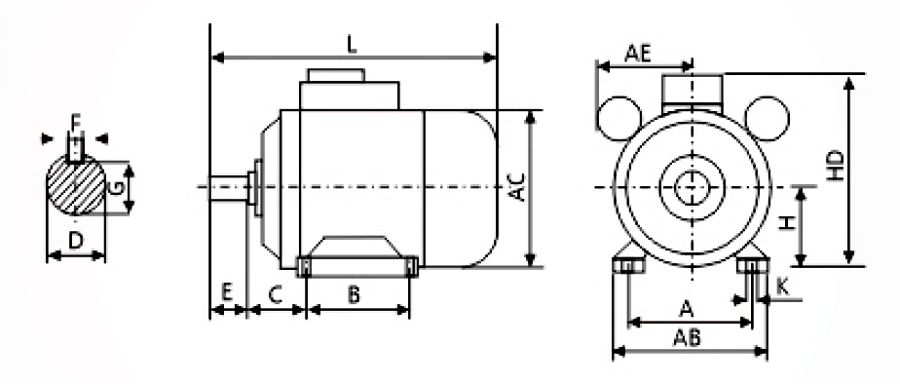

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
90S	140	100	56	24	50	8	20	90	10	180	185	160	130	240	370
90L	140	125	56	24	50	8	20	90	10	180	185	160	130	240	400

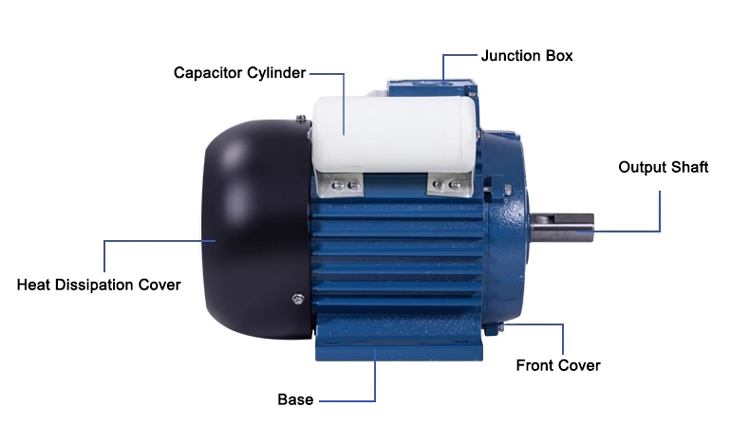

Details

Tips: Single phase induction motor capacitor wiring connection

Single phase induction motors have three taps. First, use a universal meter to measure the electrical graph values between the three parties. The two terminals with large resistance are connected in parallel with the capacitor, and the other terminal (common terminal) is connected to one end of the power supply. Then use the electric barrier of the multimeter to measure the resistance between the common terminal and the terminals at both ends of the capacitor. The terminal with the larger resistance is connected to the other end of the power supply, and it is connected to the forward rotation at a time. If you want to change the direction, you can change the power cord on one end of the capacitor to the other end.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
